Removing Sill Cover

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover strip on front sill cover -1-  .

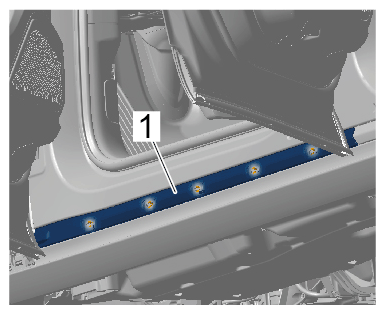

    G15238705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover strip on front sill cover

    1. 1.1 Unclip cover strip on front sill cover -1-  using an assembly wedge.
    2. 1.2 Guide cover strip on front sill cover -1-  to the rear and remove it.
  2. Remove cover strip on rear sill cover -1-  .

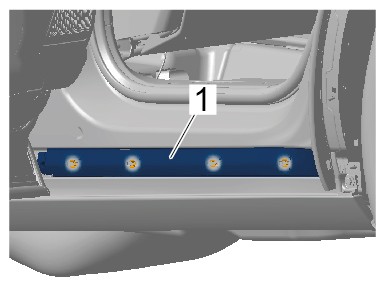

    G15238706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover strip on rear sill cover

    1. 2.1 Unclip cover strip on rear sill cover -1-  using an assembly wedge.
    2. 2.2 Remove cover strip on rear sill cover -1-  .
  3. Remove sill cover.
    1. 3.1 Unscrew screws -1-  on the underbody.

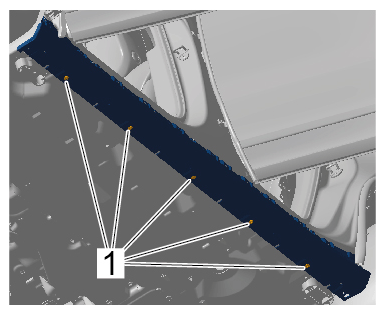

      G15238707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws on underbody

      Information

      Replace micro-self-locking screws.

    2. 3.2 Unscrew screws -1-  in the front door area.

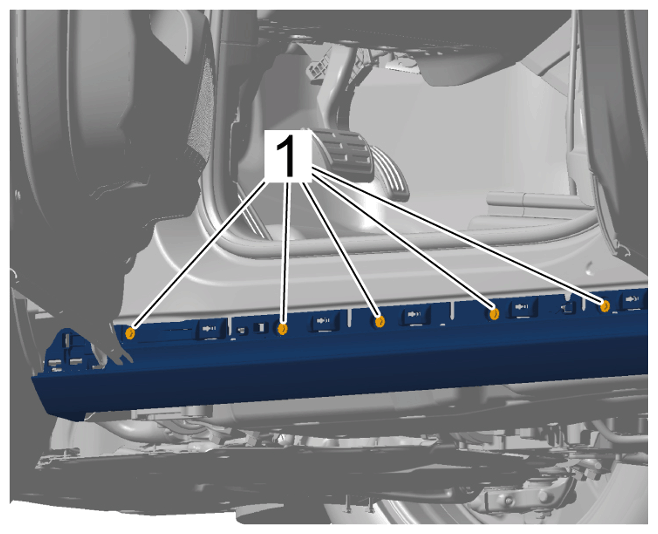

      G15238708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws for front door

      Information

      Replace micro-self-locking screws.

    3. 3.3 Unscrew screws -1-  in the rear door area.

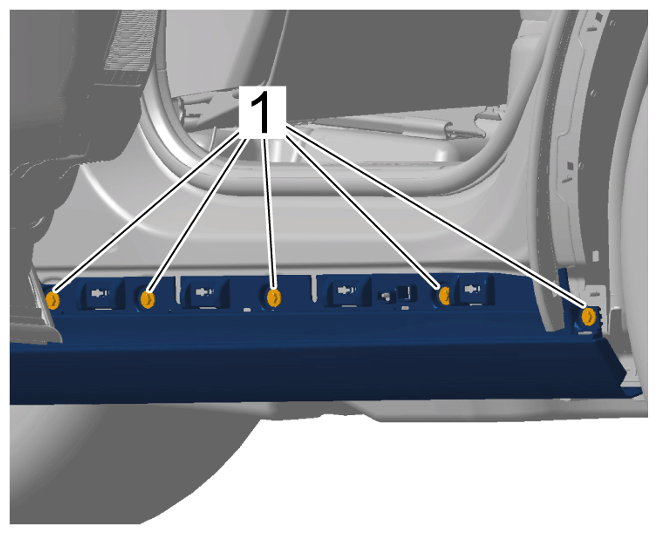

      G15238709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws for rear door

    4. 3.4 Release retaining lugs -1 and 2-  and remove sill cover.

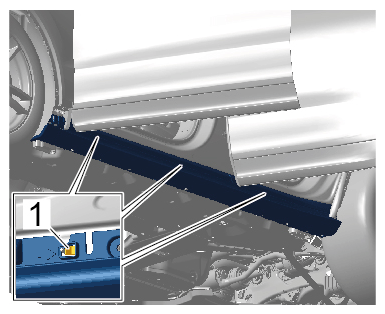

      G15238710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining lugs
