Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover for centre underbody.

    > WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY

  2. Remove front wheel cover.

    > 661919 REMOVING AND INSTALLING FRONT WHEEL COVER

  3. Remove rear wheel cover.

    > 664519 REMOVING AND INSTALLING REAR WHEEL COVER

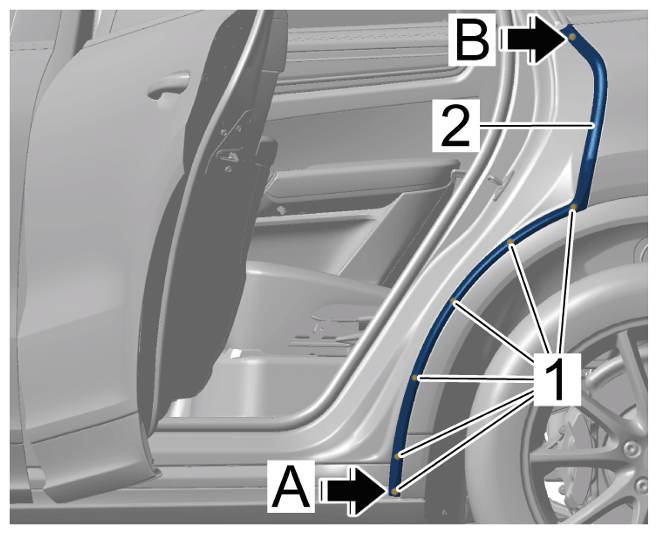

  4. Starting from the bottom, unclip outer seal on rear door -2-  only in the cover strip on rear sill cover area -arrow A-  using a suitable tool -1-  .
    G15238704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outer seal for rear door
