Removing The Front Wheel Cover (Sport Design)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Wheel arch trims (Sport Design) cannot be removed without irreparable damage and therefore must always be replaced.

Information

Wheel arch trim front (Sport Design) is in two parts. The two sections can be replaced independently of each other.

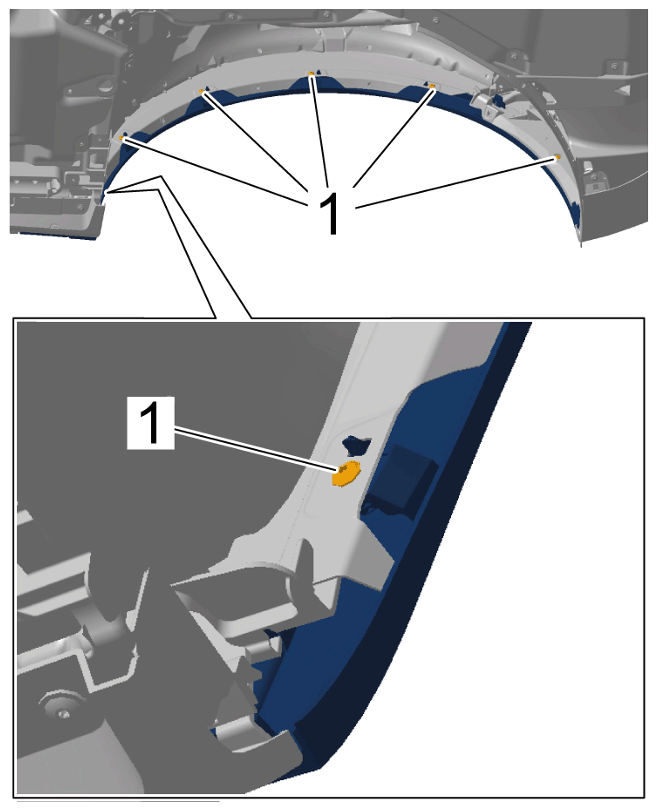

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Release wheel cover at the front (Sport Design).

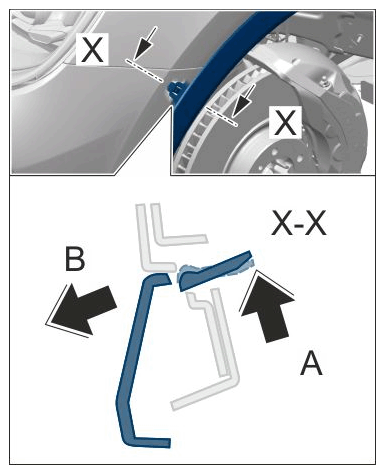

2.1 Release locking lug -arrow A- and pull front wheel cover (Sport Design) outwards slightly -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lug

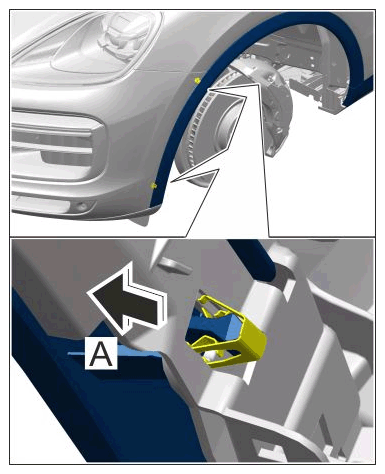

2.2 Release front wheel cover (Sport Design) at the retaining clips using a plastic wedge and pull it out -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clips

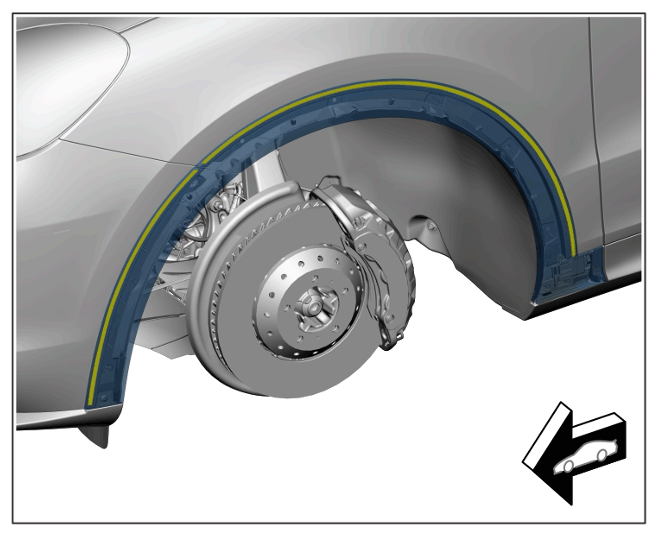

Heat strips of adhesive tape in the marked area using a > V.A.G 1416 - hot-air blower and carefully loosen front wheel cover (Sport Design) from below using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive tape

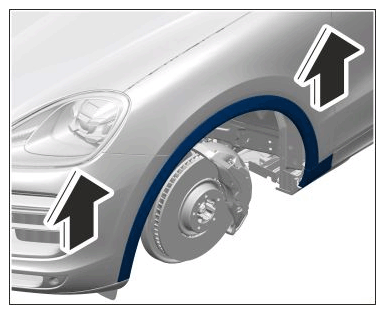

Remove front wheel cover (Sport Design) upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel cover front (Sport Design)
