Removing Front Wheel Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

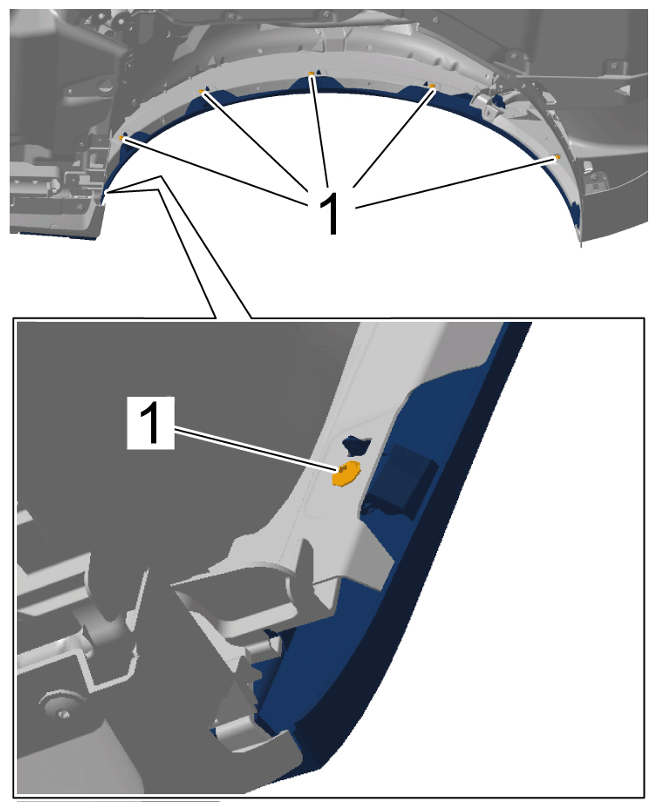

- Unscrew screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws
- Loosen front wheel cover.

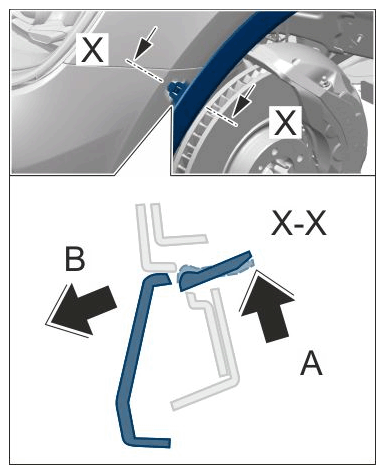

- 2.1 Release locking lug -arrow A-
and pull front wheel cover outwards slightly -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locking lug

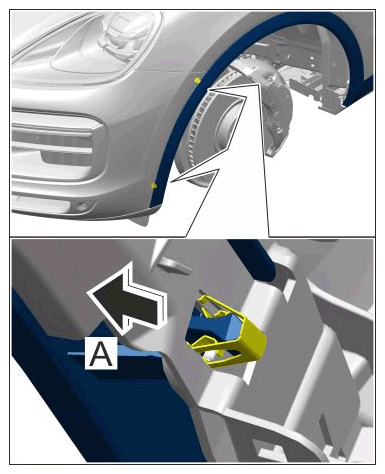

- 2.2 Release front wheel cover at the retaining clips using a plastic wedge and pull it out -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front wheel cover

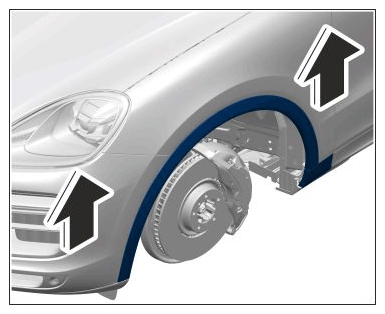

- Lift front wheel cover up and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front wheel cover
