Disassembling Front Spoiler

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

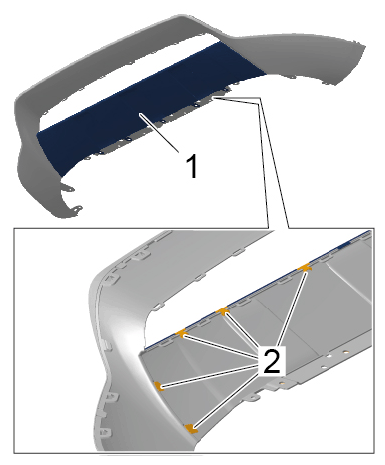

Remove front spoiler section -1- from front spoiler.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front spoiler section
1. 1.1 Keep front spoiler section -1- tensioned towards the rear.
2. 1.2 Disengage locking mechanisms -2- and pull front spoiler section -1- off the front spoiler.
Bend up sheetmetal brackets -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower trim

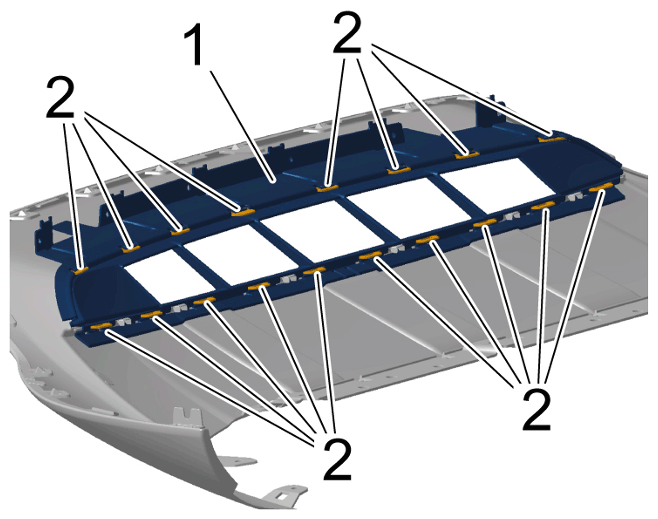

Remove lower trim -1- by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower trim
