Removing Front Spoiler
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

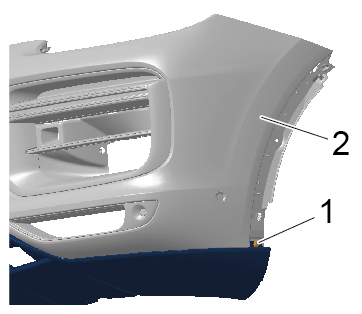

- Unscrew fastening screws -1-
securing front spoiler to front apron -2-
at the sides.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front spoiler

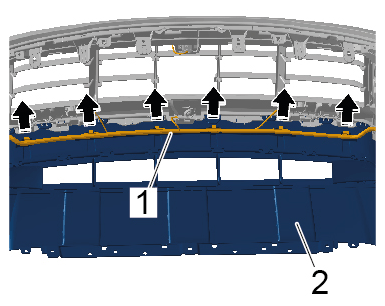

- Unclip electric wire harness -1-
from front spoiler -2-
(-Arrows-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric wire harness

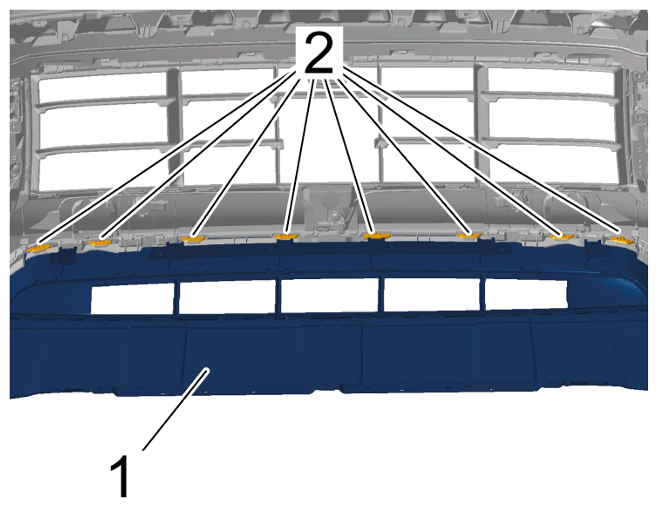

- Remove front spoiler -1-
from front apron.
- 3.1 Keep the front apron tensioned towards the rear.

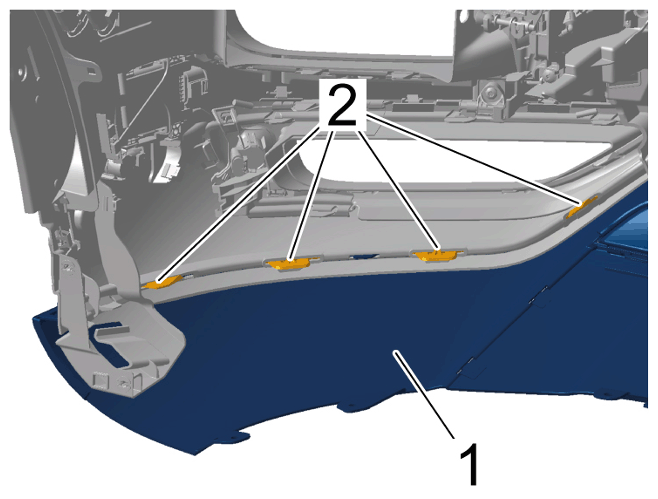

- 3.2 Disengage the locks -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks
- 3.3 Remove front spoiler from front apron.
