Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

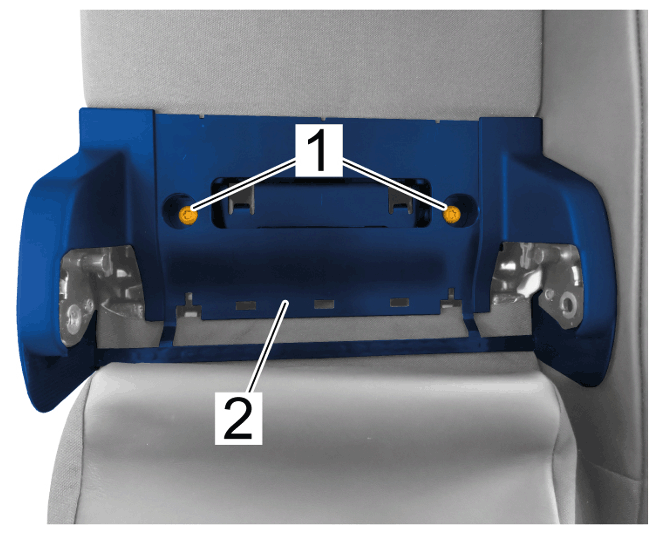

| Screw securing armrest holder to load-through provision |
Item 1 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Armrest holder |

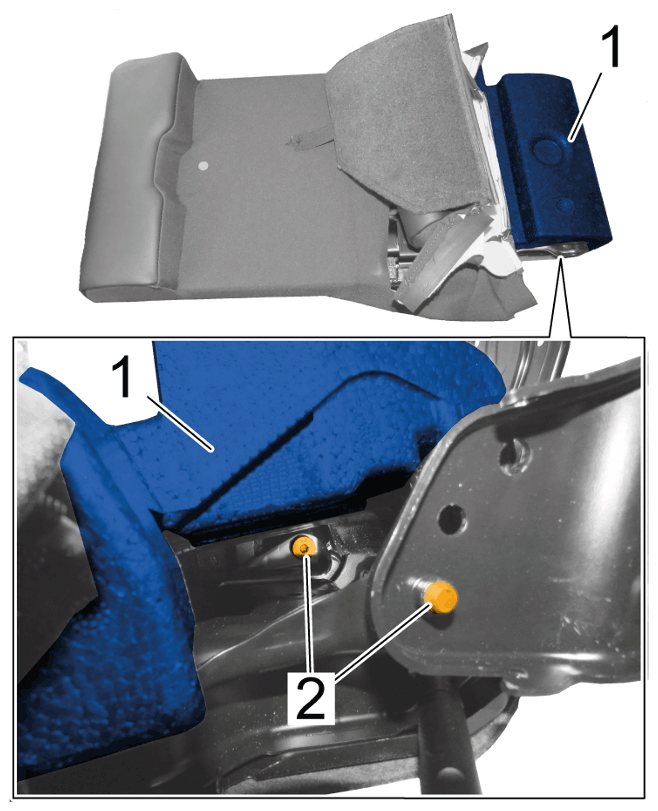

| Screw securing load-through provision to holder |
Item 2 |
Tightening torque |
25 Nm (19 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Load-through provision |
