Removing Armrest With Cover
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Fold load-through provision forward.

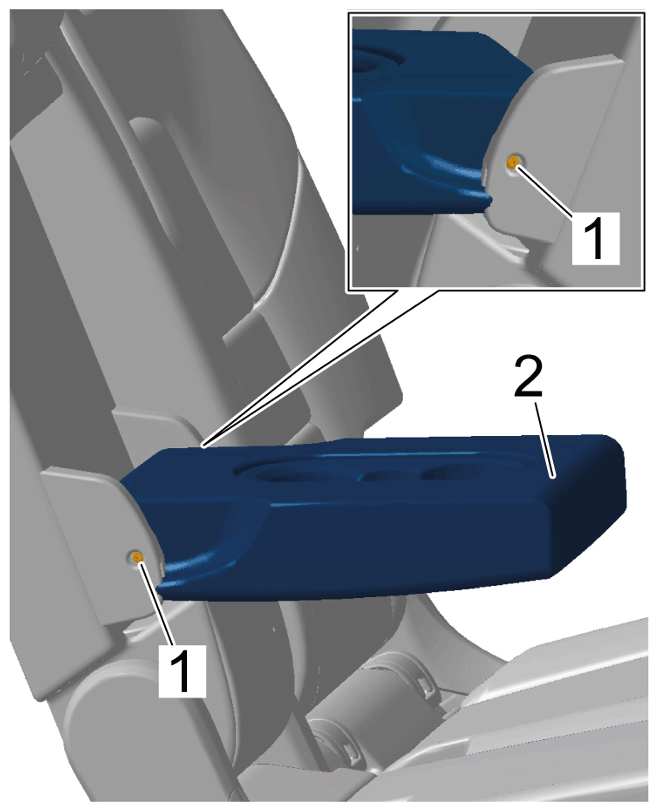

- Unscrew and remove screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws for armrest
- Fold load-through provision to the rear.
- Open armrest with cover -2-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Armrest with cover
