Removing Padding For Rear Backrest (1/3-Split Folding Rear Seat)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

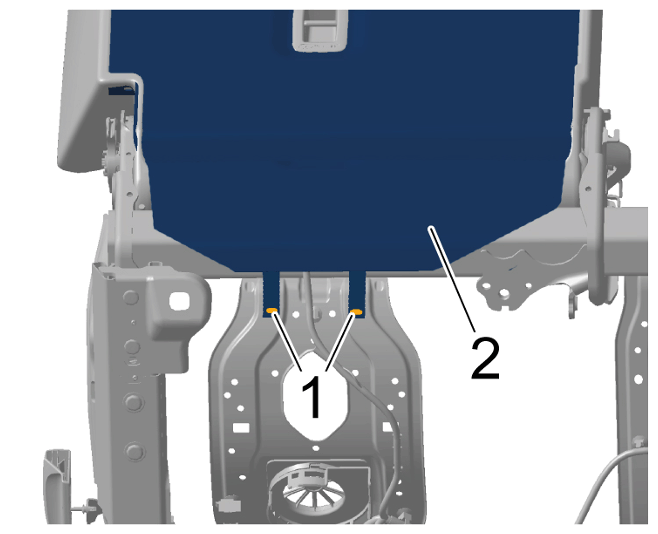

  1. Unclip clips -1-  from seat cover for rear backrest -2-  at the bottom.
    G15280384Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat cover on rear backrest, bottom

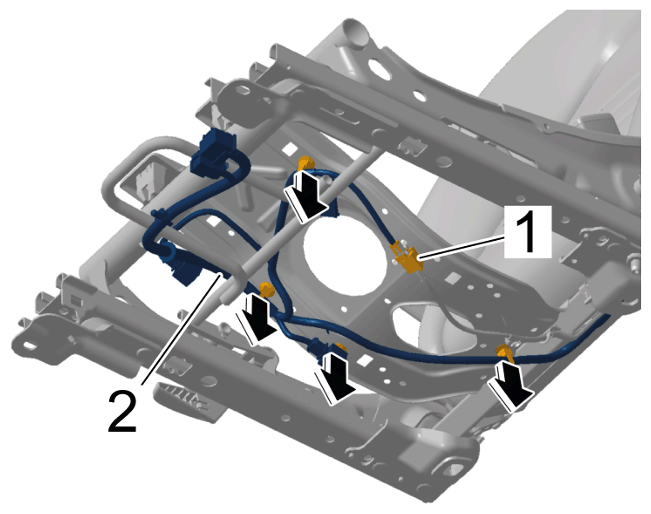

  2. Disconnect electric wire harness -2-  at the bottom of the seat frame.
    G15280385Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

    1. 2.1 Release and unplug electric plug connections -1-  .

      Information

      Mark installation positions!

    2. 2.2 Disconnect electric wire harness -2-  on the seat frame at the bottom.

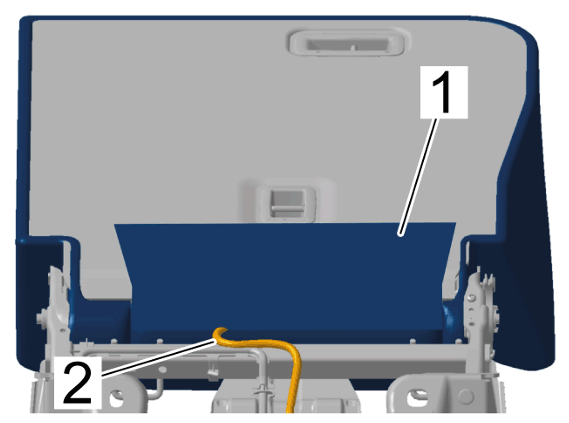

  3. Loosen seat cover on rear backrest -1-  at the seat backrest.
    G15280386Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat cover on rear backrest

    1. 3.1 Detach seat cover on rear backrest -1-  at the seat backrest.
    2. 3.2 Feed electric wire harness -2-  through the seat cover on the rear backrest -1-  .

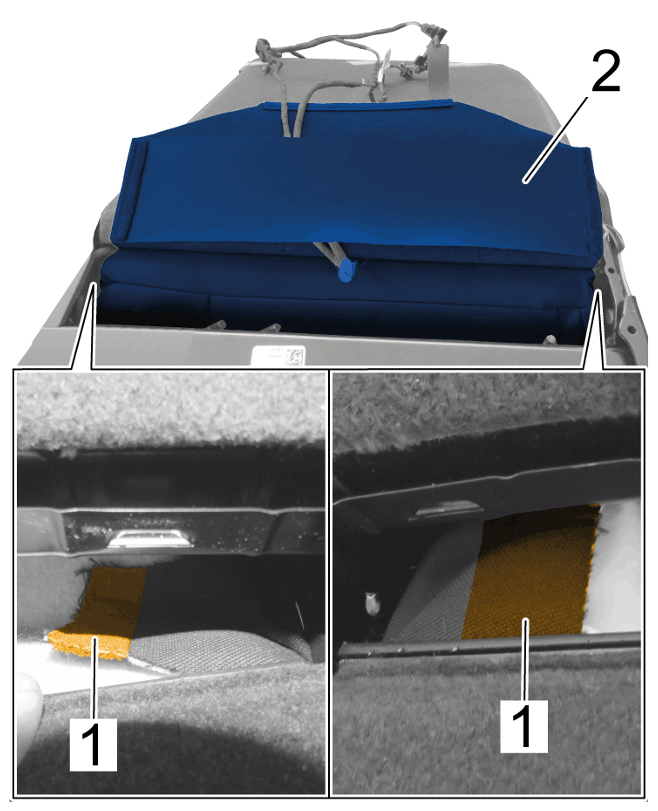

  4. Loosen Velcro fasteners -1-  and guide the seat cover -2-  forward.
    G15280387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Velcro fasteners

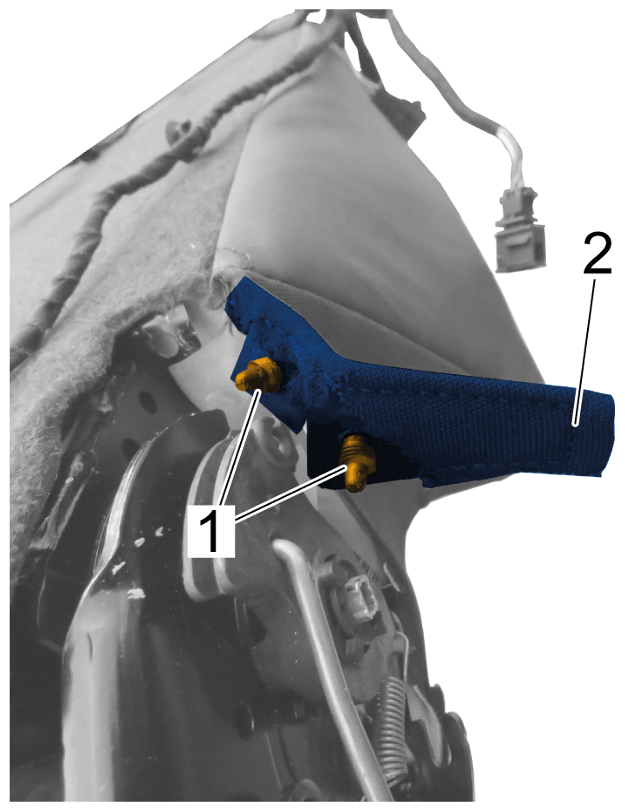

  5. Loosen clips -1-  and bend tab -2-  outwards.
    G15280388Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

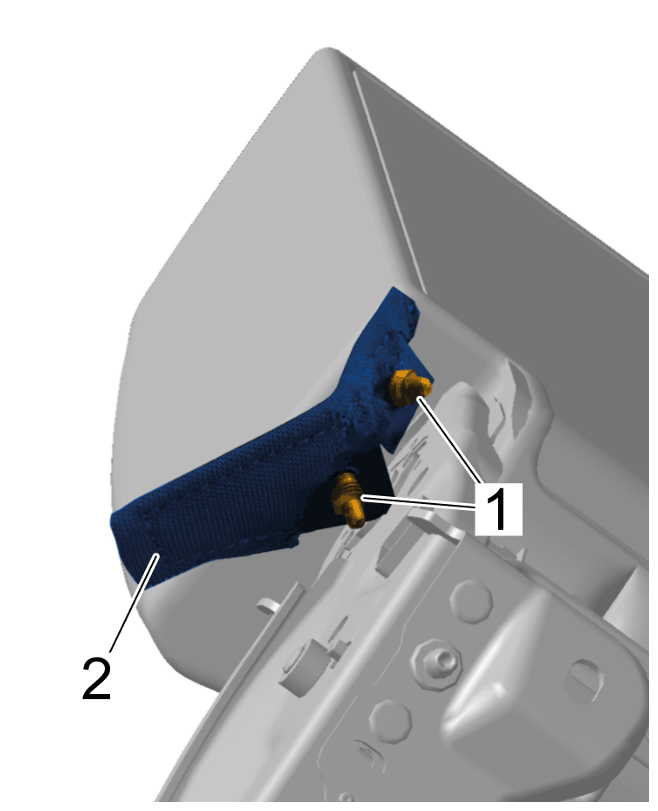

  6. Loosen clips -1-  and bend tab -2-  outwards.
    G15280389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

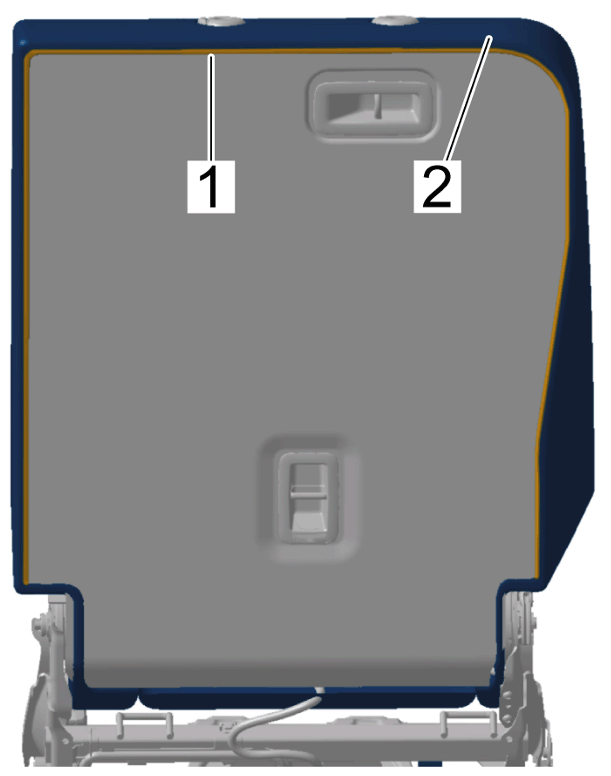

  7. Disengage clamping strips -1-  and detach seat cover on rear backrest -2-  from the backrest frame.
    G15280390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat cover on rear backrest

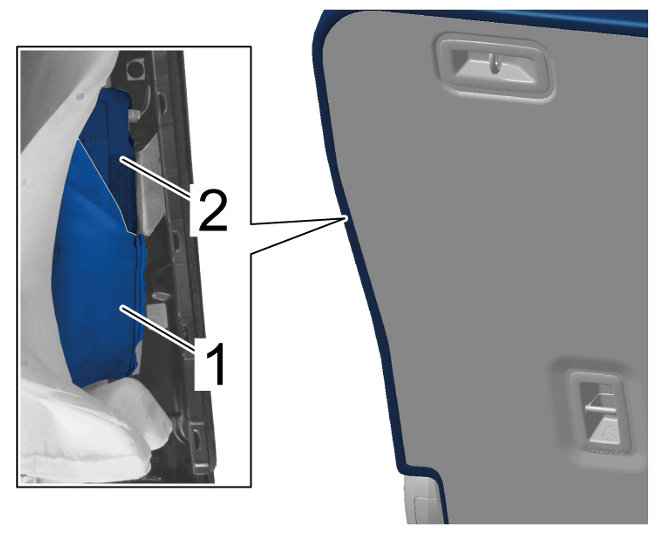

  8. Place catcher -1-  over the side airbag -2-  .
    G15280391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side airbag catcher

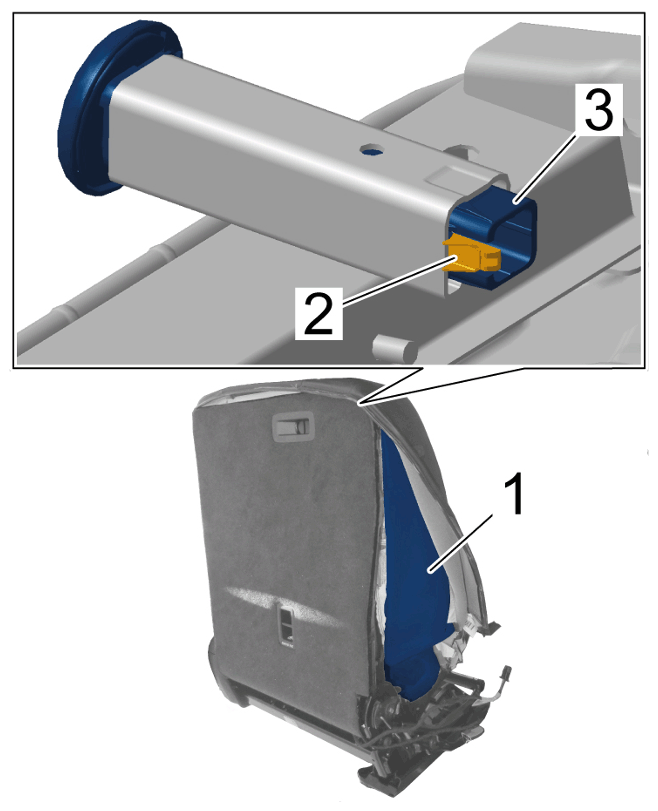

  9. Remove headrest guide at the left -3-  .
    G15280392Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest guide, left

    1. 9.1 Press padding for rear backrest (1/3-split folding rear seat) -1-  away from the backrest frame.
    2. 9.2 Release locking lug -2-  and press out headrest guide at the left -3-  .

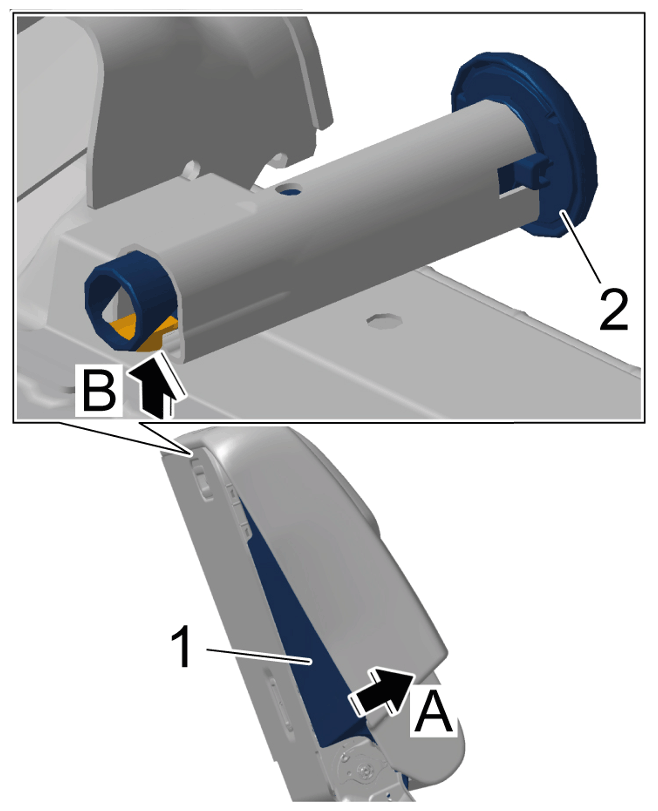

  10. Remove headrest guide at the right -2-  .
    G15280393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest guide, right

    1. 10.1 Press padding for rear backrest (1/3-split folding rear seat) -1-  away from the backrest frame -arrow A-  .
    2. 10.2 Release headrest guide at the right -2-arrow B-  and press it out.
  11. Remove padding for rear backrest (1/3-split folding rear seat).
