Removing Padding For Rear Backrest (2/3-Split Folding Rear Seat)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

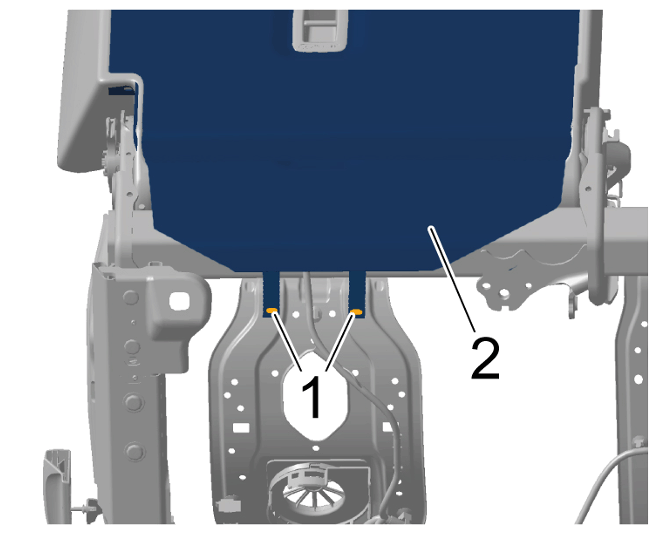

Unclip clips -1- from seat cover for rear backrest -2- at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover on rear backrest

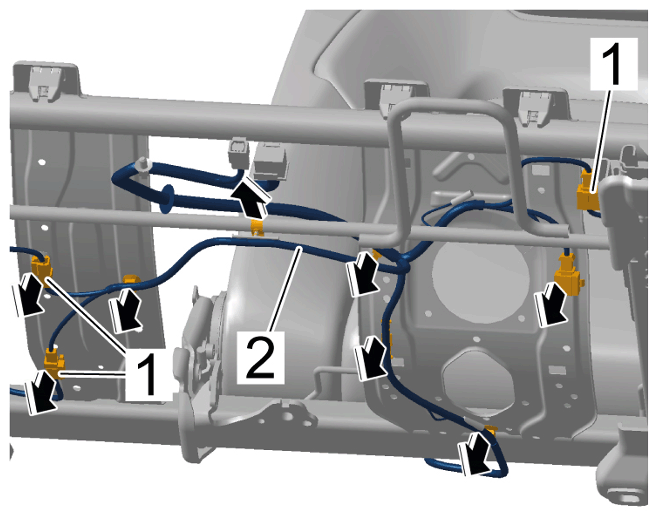

Disconnect electric wire harness -2- at the bottom of the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
1. 2.1 Release and unplug electric plug connections -1- .
  Information

  Mark installation positions!
2. 2.2 Unclip electric wire harness -2- on the seat frame at the bottom and remove it -Arrows- .
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
  → Always use new screws or nuts following removal.

  → Comply with instructions for repairs.

  → Observe specified tightening torques.

  → Carry out a visual inspection of parts used.

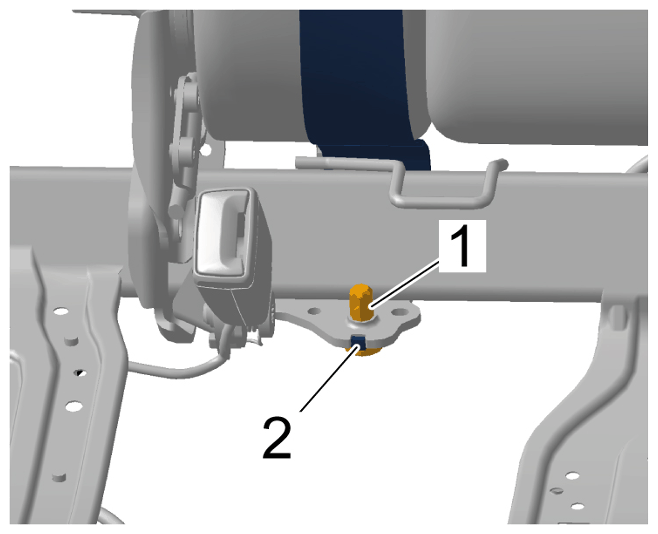

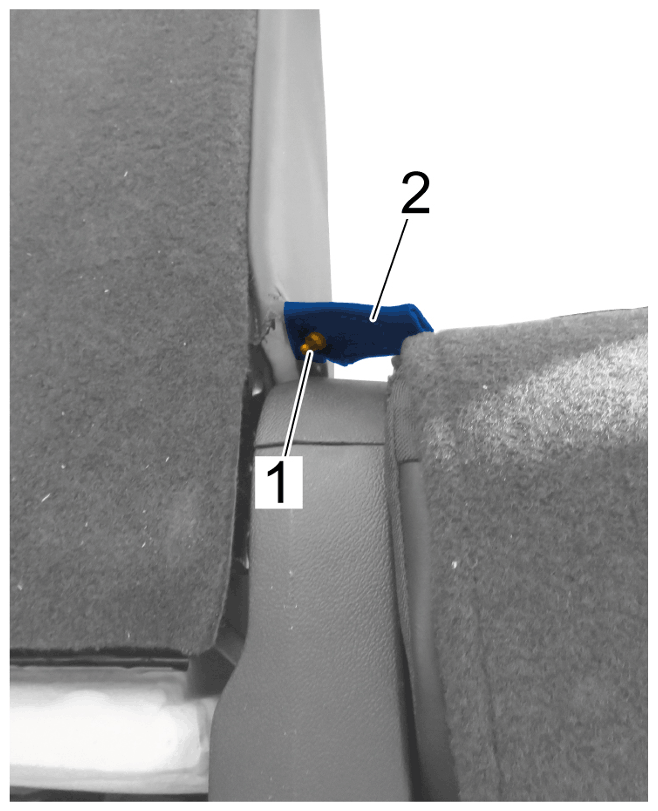

Unscrew screw -1- and remove seat belt mount -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat belt mount

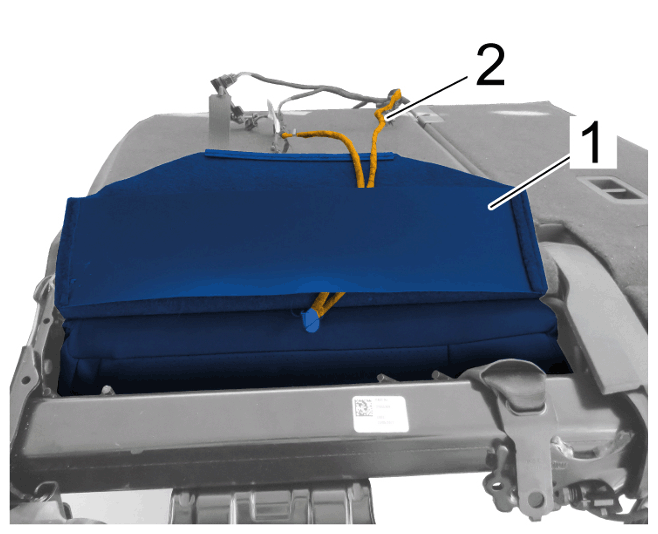

Detach seat cover on rear backrest -1- at the seat backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover for rear backrest on seat backrest
1. 4.1 Detach seat cover on rear backrest -1- from the groove in the seat backrest.
2. 4.2 Feed electric wire harness -2- through the seat cover on the rear backrest -1- .

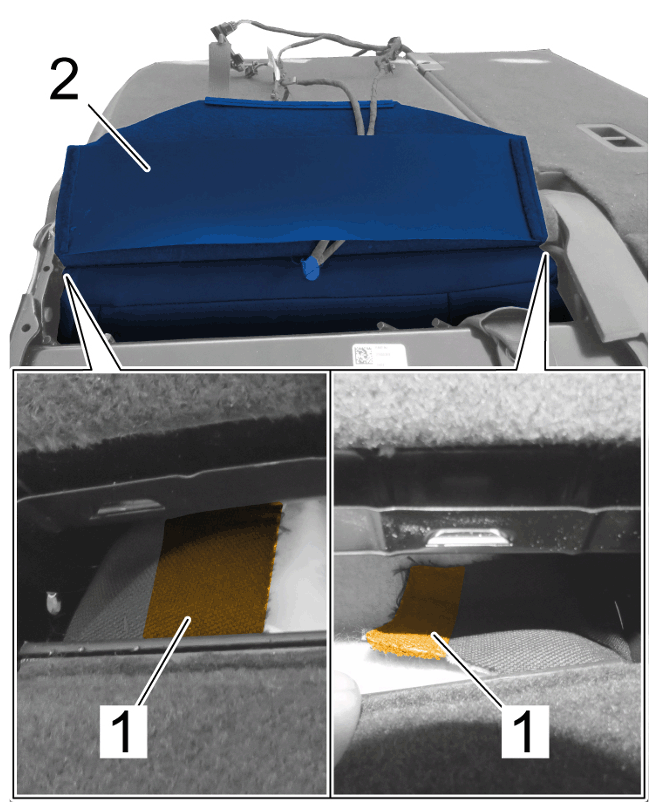

Loosen Velcro fasteners -1- from padding for rear backrest (2/3-split folding rear seat) and move seat cover for rear backrest -2- forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Velcro fasteners

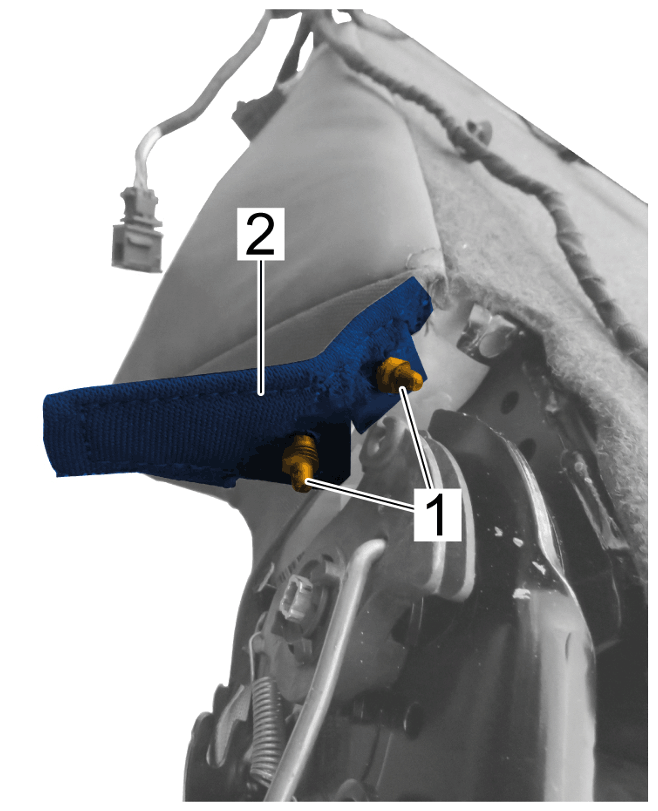

Loosen clips -1- and bend tab -2- outwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer tab
Loosen clip -1- and bend tab -2- outwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner tab

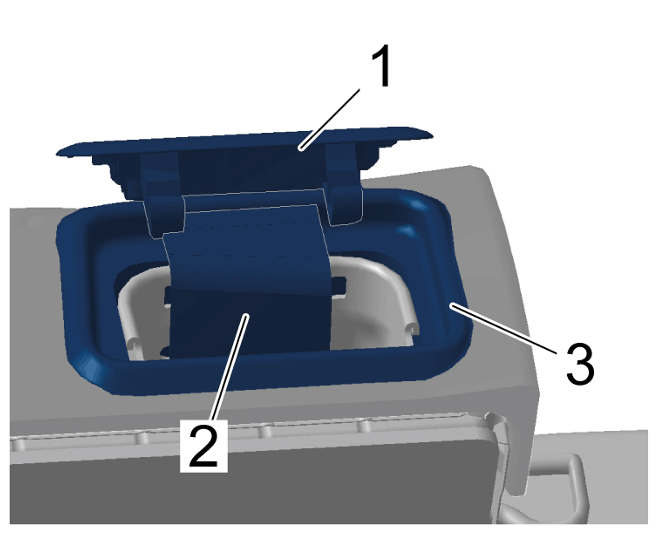

Unclip cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

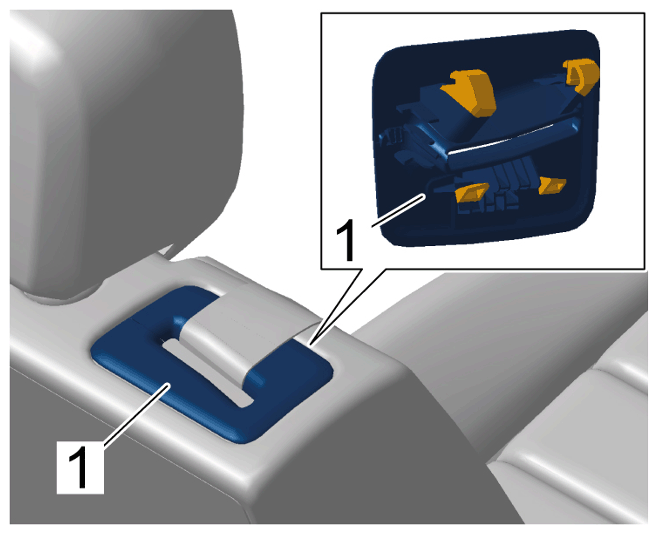

Unclip belt feed-through element -1- and leave it hanging at the rear three-point belt for the middle seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt feed-through element
Disengage clamping strips -1- and detach seat cover on rear backrest -2- from the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover on rear backrest

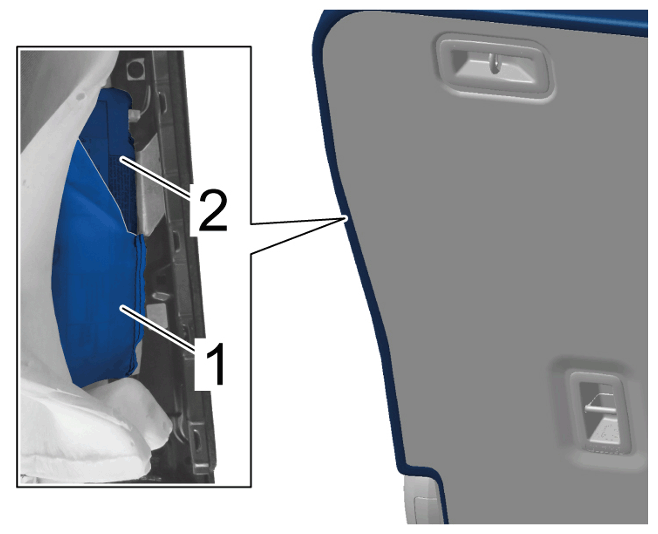

Pull catcher -1- down off the side airbag -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side airbag catcher

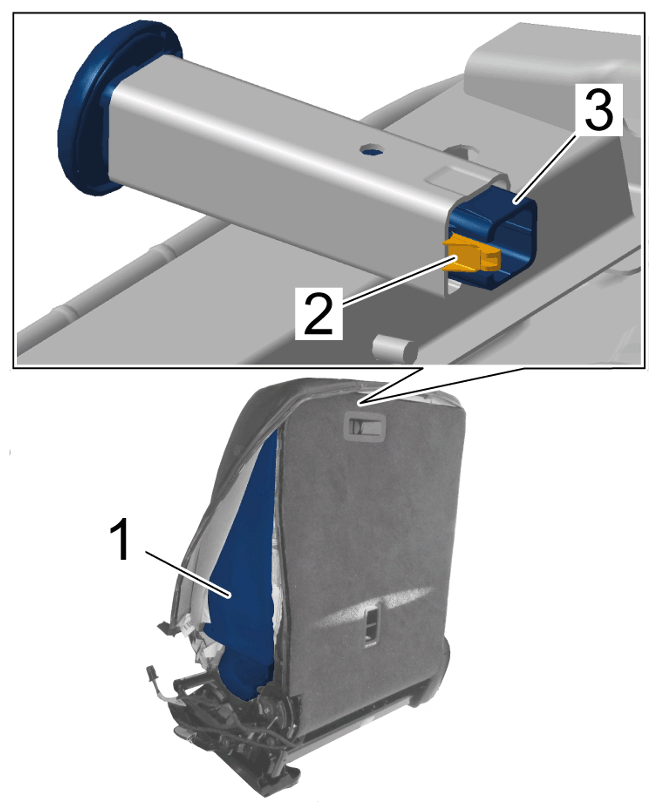

Remove headrest guide at the left -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headrest guide, left
1. 12.1 Press padding for rear backrest (2/3-split folding rear seat) -1- away from the backrest frame.
2. 12.2 Release locking lug -2- and press left headrest guide -3- out of the backrest frame.

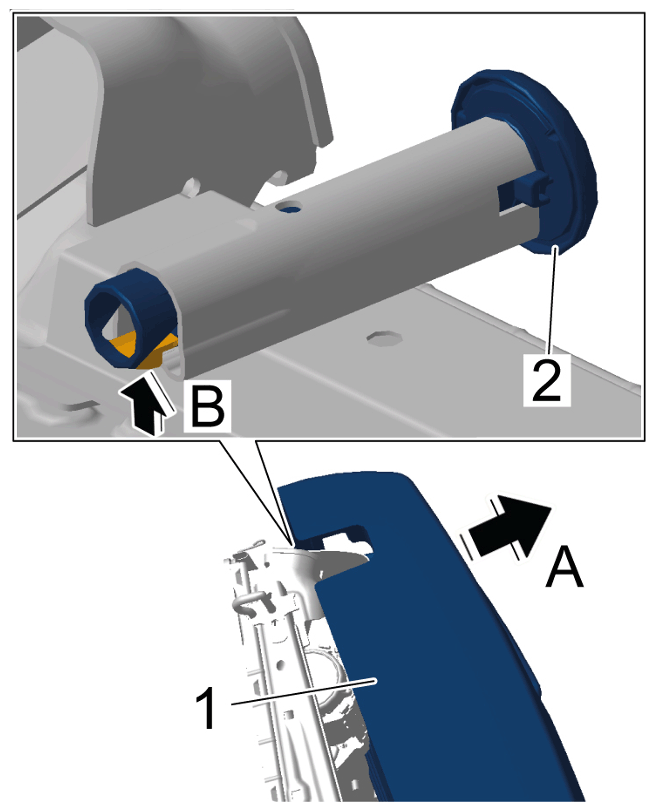

Remove headrest guide at the right -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headrest guide, right
1. 13.1 Press padding for rear backrest (2/3-split folding rear seat) -1- away from the backrest frame -arrow A- .
2. 13.2 Release headrest guide at the right -2-arrow B- and press it out of the backrest frame.
Guide rear three-point belt for middle seat -2- with belt feed-through element -1- through the padding for the rear backrest (2/3-split folding rear seat) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear three-point belt for middle seat
Remove padding for rear backrest (2/3-split folding rear seat).
