Removing Suction Fan For Rear Backrest
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

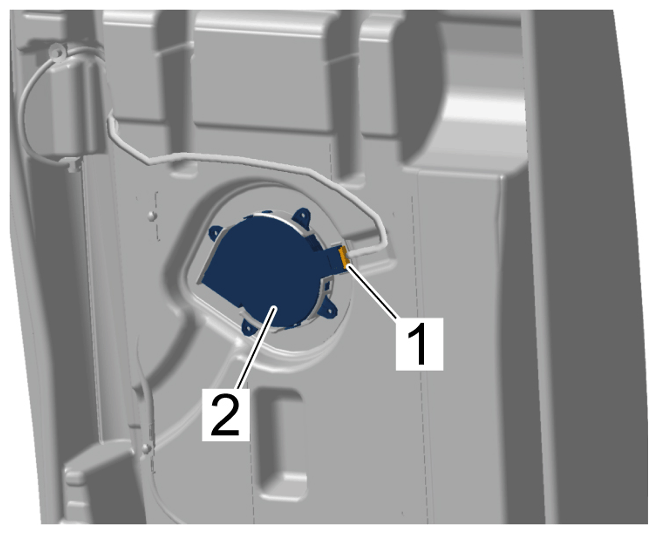

- Release electric plug connection -1-
and disconnect it from suction fan for rear backrest -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

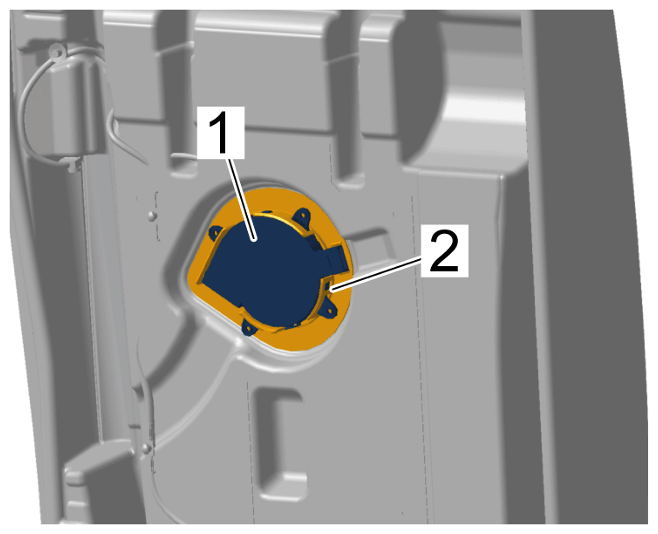

- Disengage suction fan for rear backrest -1-
from the bracket -2-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Suction fan for rear backrest
