Installing Padding For Rear Seat Surface (1/3-Split Folding Rear Seat)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:
Information

Fastening grommets version 1 must not be re-used and must be replaced by fastening grommets version 2.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

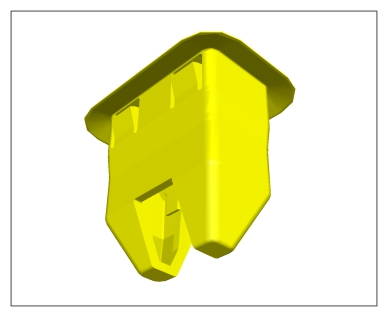

Fastening grommets version 1

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

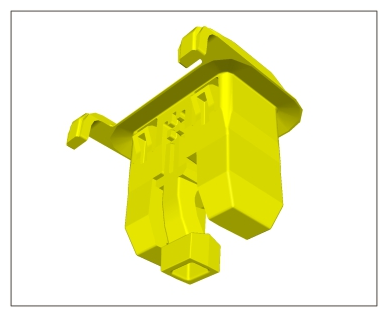

Fastening grommet version 2
- Fastening grommets version 1
- Fastening grommets version 2
Fastening grommet version 1
Fastening grommet version 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening grommets version 2

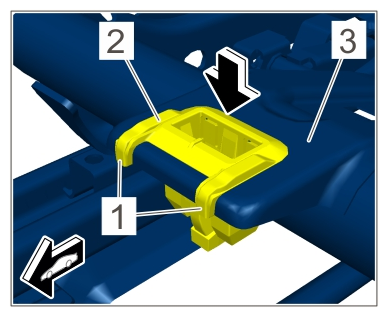

3.1 Align position lugs -1- towards the front.
3.2 Engage fastening grommets version 2 -2- in the seat frame -3-Arrow- .
