Removing Rear Seat Surface Suction Fan
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

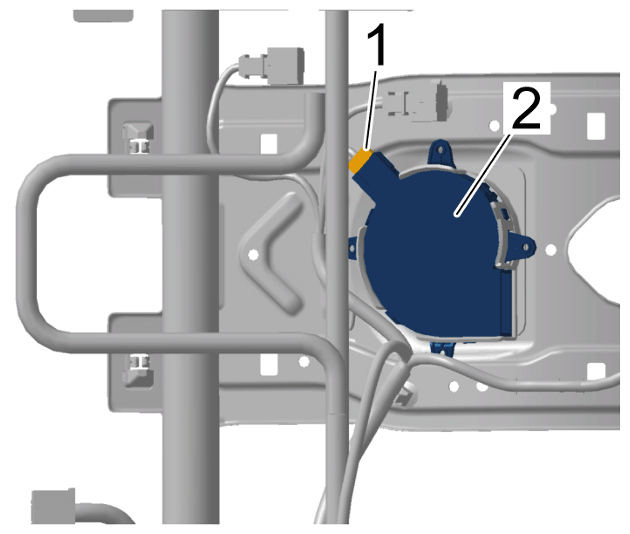

- Release and disconnect electric plug connection -1-
on suction fan for rear seat surface -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

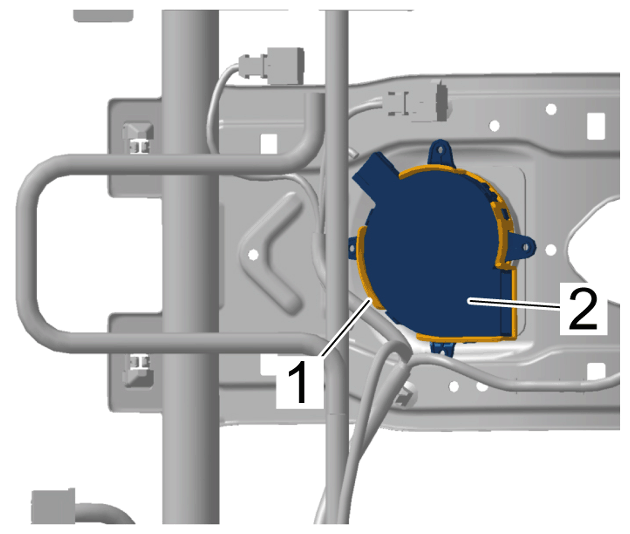

- Disengage suction fan for rear seat surface -2-
from the bracket -1-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear seat surface suction fan
