Replacing Heating Element For Rear Seat Cushion

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

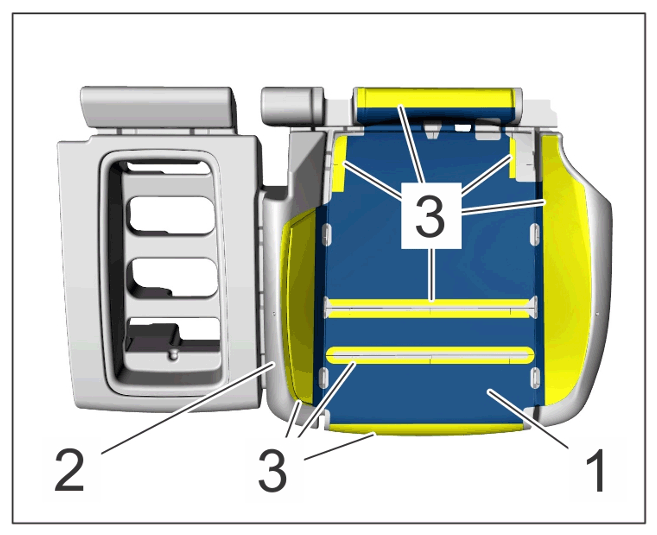

Affix heating element -1- to rear seat cushion -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for rear seat cushion
1. 1.1 Position heating element -1- on rear seat cushion -2- .
2. 1.2 Pull off protective film in area -3- and press heating element -1- on flat in area -3- .

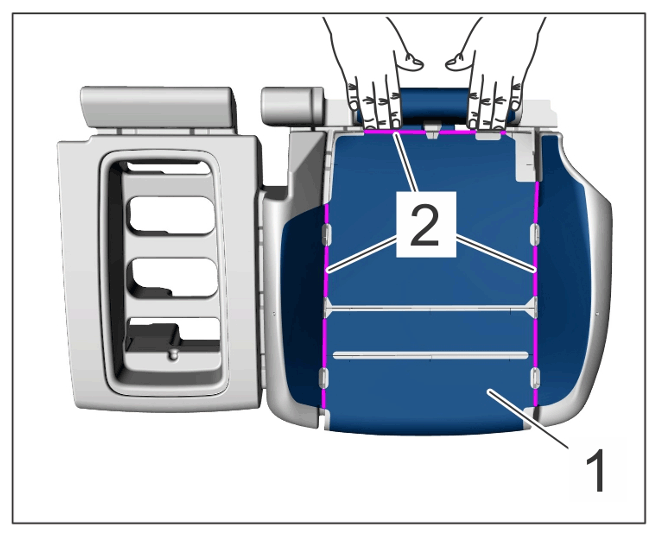

3. 1.3 Press heating element -1- into the grooves in area -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for rear seat cushion
