Replacing Heating Element For Front Seat

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

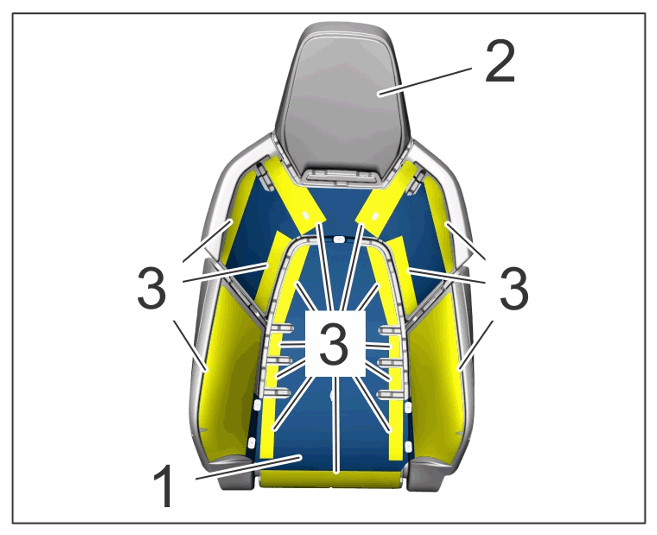

Affix heating element -1- to the front seat -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for front seat
1. 1.1 Position heating element -1- on front seat -2- .
2. 1.2 Pull off protective film in area -3- and press heating element -1- on flat in area -3- .

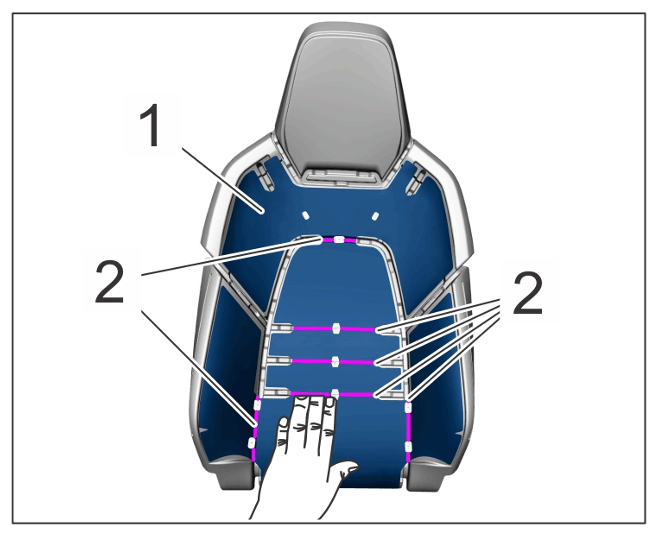

3. 1.3 Press heating element -1- in area -2- into the grooves.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element for front seat
