Removing Backrest Pocket
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Disengage support rods -1-
and guide rubber straps -3-
through towards the front.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

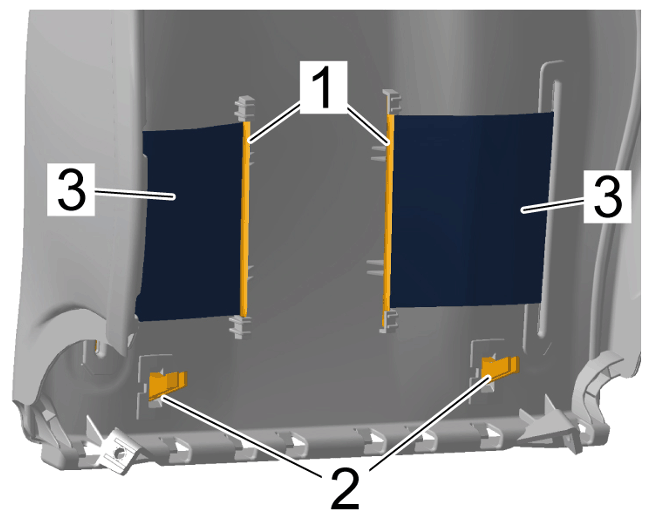

Support rods for backrest pocket
- Release locks -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locks on backrest pocket
- Remove backrest pocket -1-
from the backrest cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

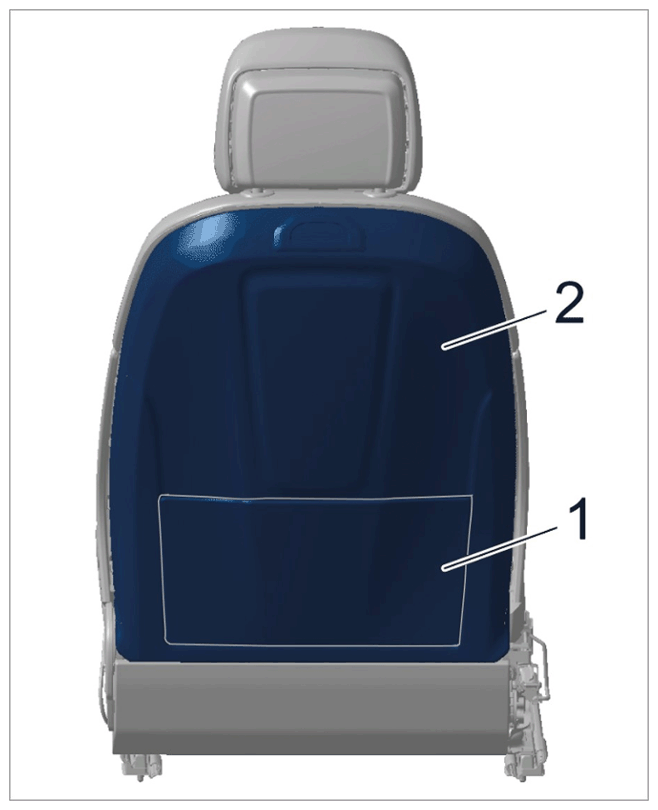

Backrest pocket
