Removing Cover For Front Backrest
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

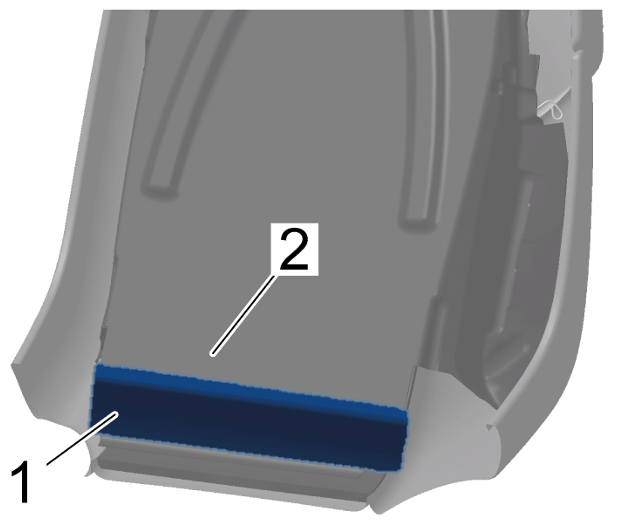

- Fit tab -1-
of cover for front backrest over the padding -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Tab on backrest cover

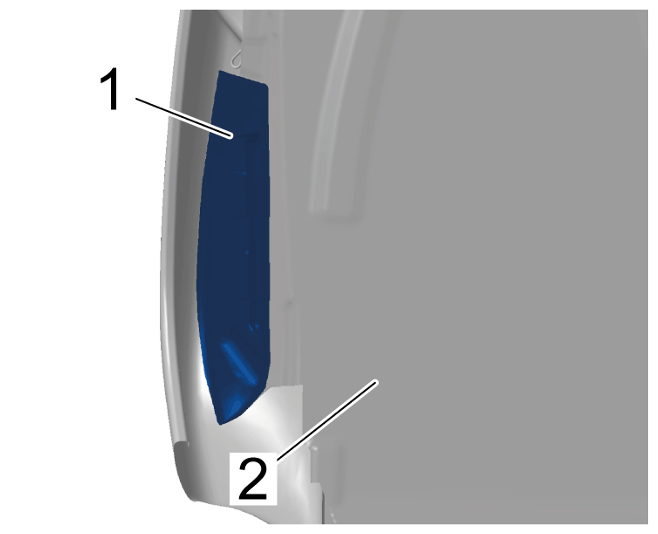

- Guide side airbag catcher -1-
through the backrest padding -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Side airbag catcher

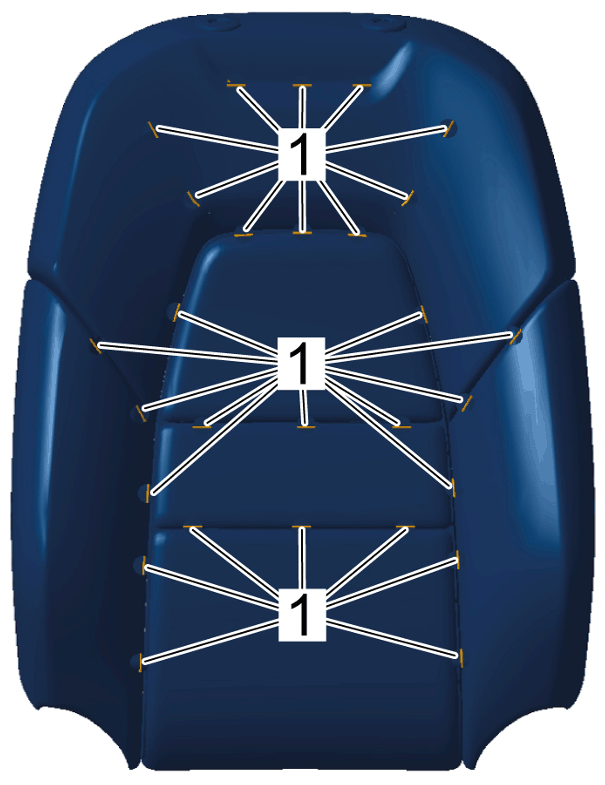

- Open cushion rings -1-
and remove front backrest cover.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cushion rings
