Removing Padding For Front Backrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Only for vehicles with front seat ventilation "A/C seat" (I-no. 4D3):

    Move rubber tabs -1-  with the ventilation duct forward.

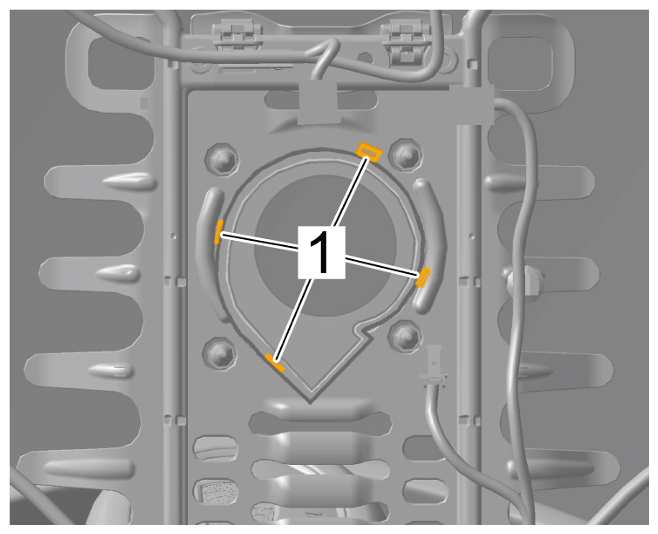

    G15280283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber tabs on ventilation duct

  2. Only for vehicles with independently adjustable seat heating for front seats (I-no. 4D3):

    Release and disconnect electric plug connection -1-  under the seat surface.

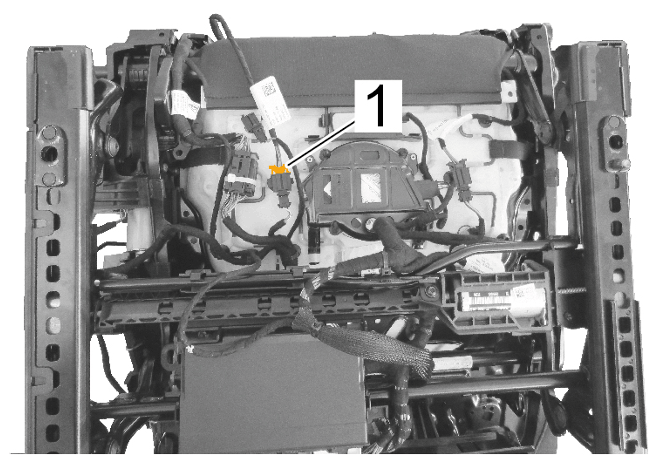

    G15280284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Only for vehicles with independently adjustable seat heating for front seats (I-no. 4D3):

    Unclip clip -1-  and guide out electric wire harness.

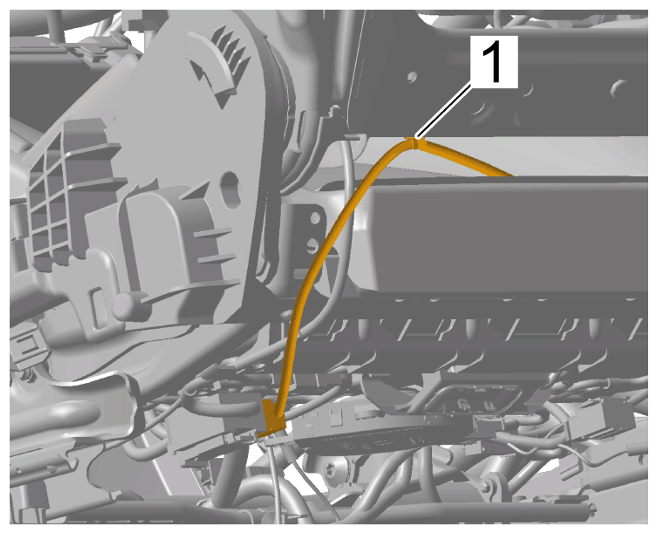

    G15280285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  4. Remove padding for front backrest -1-  from the backrest frame.

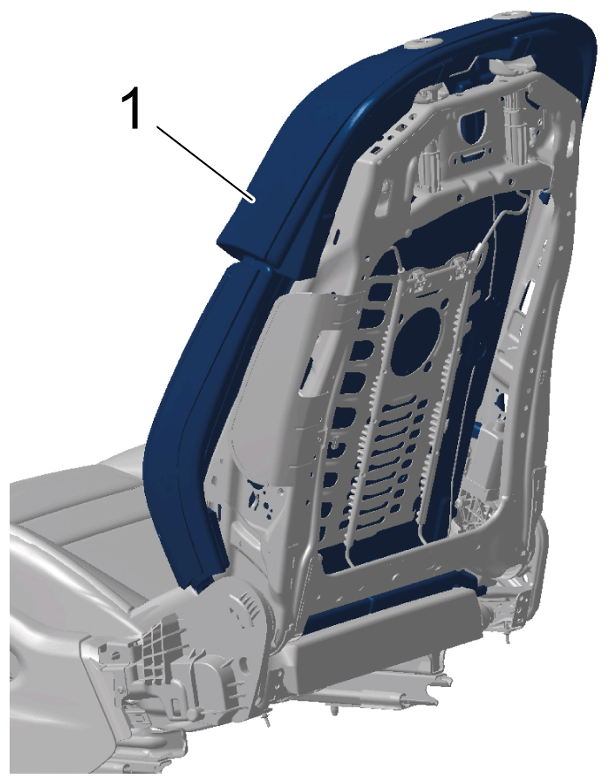

    G15280286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Padding for front backrest
