Removing Suction Fan For Seat Backrest

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

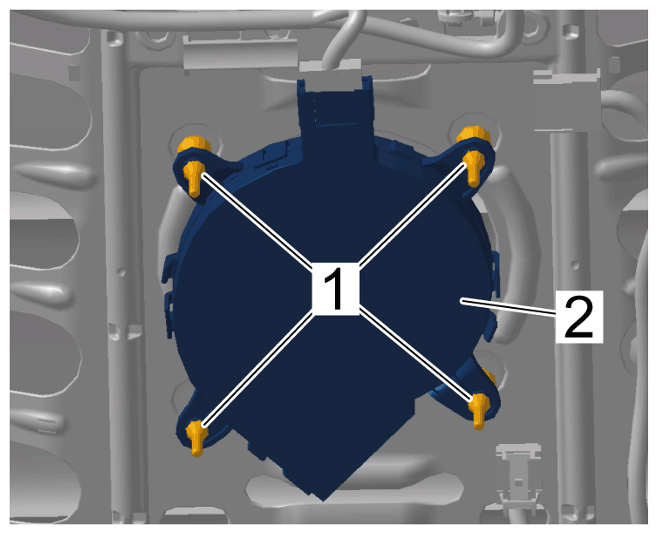

  1. Disengage rubber pins -1-  and guide through suction fan for seat backrest -2-  .
    G15280279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction fan for seat backrest

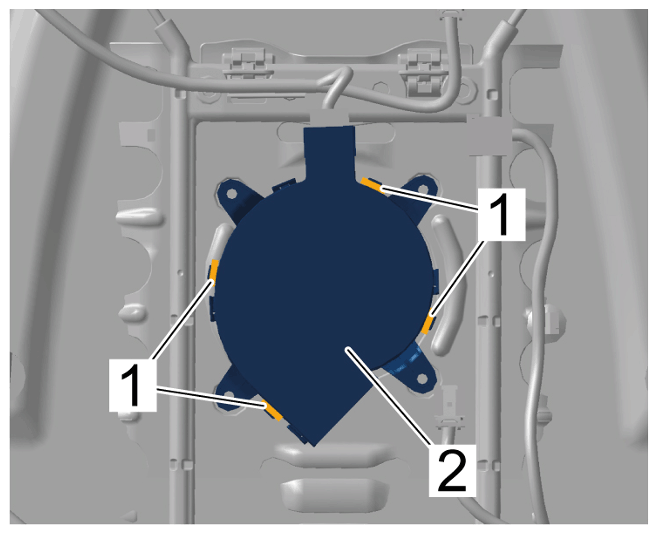

  2. Disengage clips -1-  and detach suction fan for seat backrest -2-  from the padding.
    G15280280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

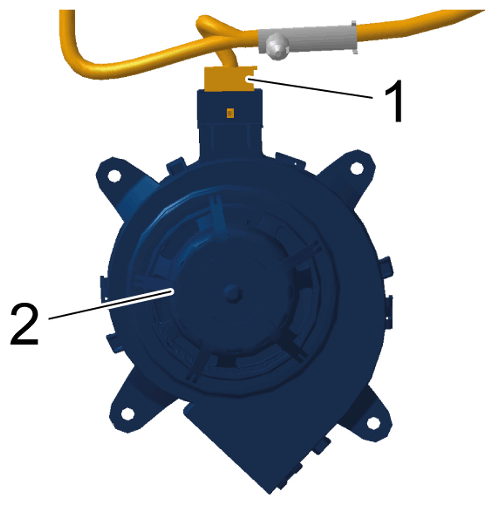

  3. Release and disconnect electric plug connection -1-  and remove suction fan for seat backrest -2-  .
    G15280281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
