Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Tightening torque for screw securing fire extinguisher holder to tubular frame holder	Item 3	Tightening torque	8 Nm (6 ftlb.)

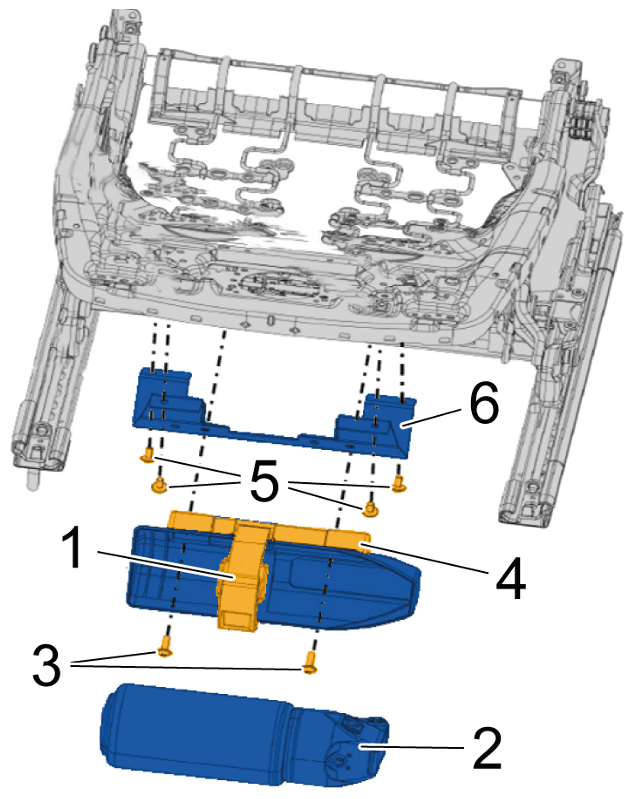

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fire extinguisher holder
Screw securing wire frame holder to seat frame	Item 5	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fire extinguisher holder
Screw securing fold-out compartment to front seat frame	Item 1	Tightening torque	8 Nm (6 ftlb.)

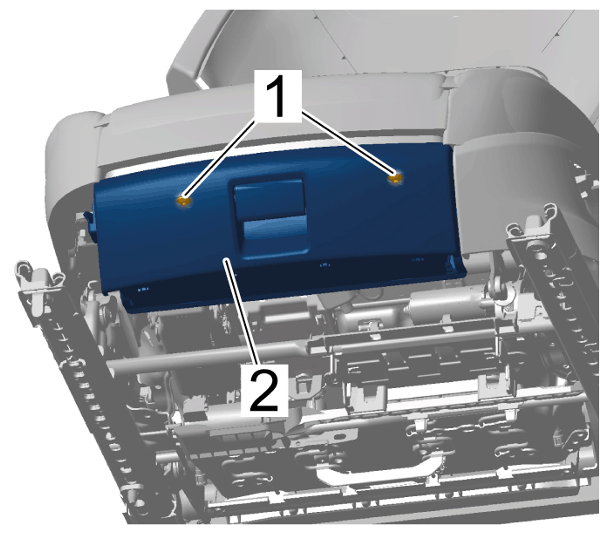

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Storage compartment
Screw securing front seat to seat frame	Item 1	Tightening torque	8 Nm (6 ftlb.)

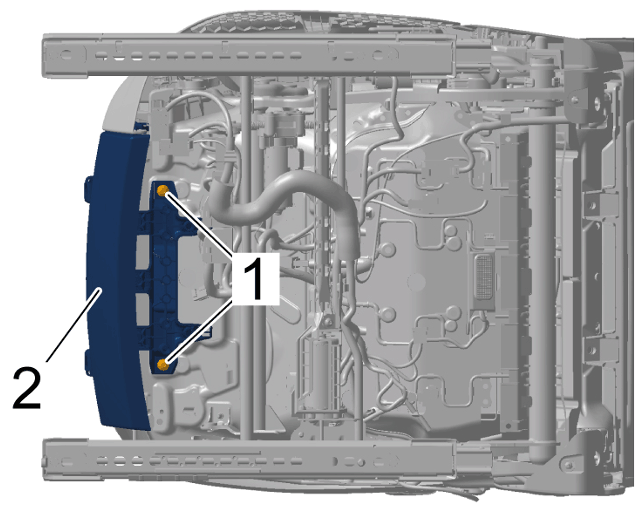

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front cover
