Removing Padding For Front Seat

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Only on the passenger seat and on vehicles with fire extinguisher (under the passenger seat) (I-no. 6A7):

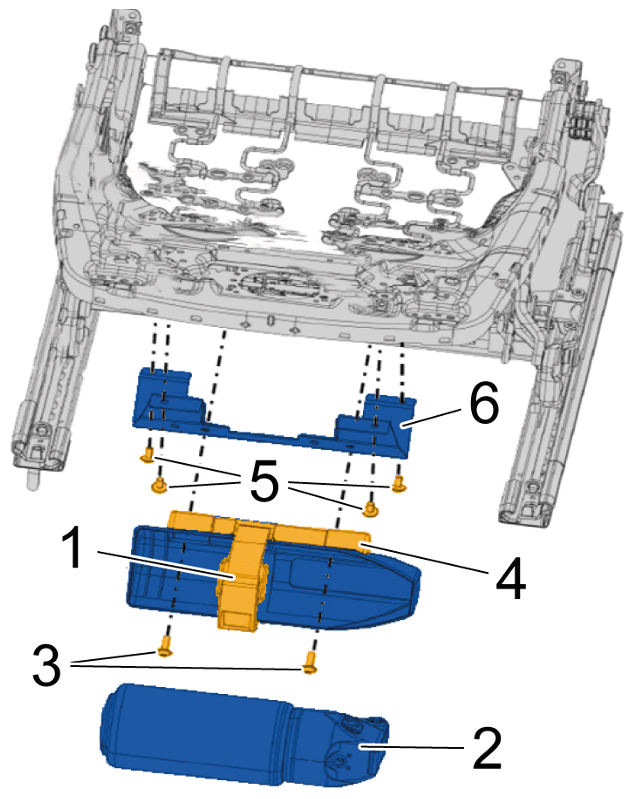

    G15280255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fire extinguisher holder

    1. 1.1 Open tension strap -1-  and remove fire extinguisher -2-  .
    2. 1.2 Unscrew screws -3-  and remove fire extinguisher holder -4-  from the tubular frame holder -6-  .
    3. 1.3 Unscrew screws -5-  and remove tubular frame holder -6-  from the seat frame.
  2. Only on the driver seat on vehicles with front 18-way sports seats or front 14-way comfort seat (I-no. Q1J or Q2J): Only on the passenger seat without fire extinguisher (under the passenger seat) (I-no. 6A7) on vehicles with front 18-way sports seats or front 14-way comfort seat (I-no. Q1J or Q2J):

    Remove fold-out compartment -2-  .

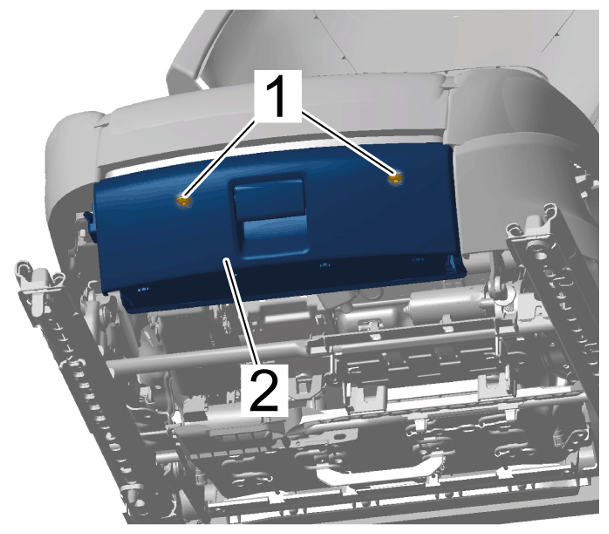

    G15280256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fold-out compartment

    1. 2.1 Open fold-out compartment -2-  .
    2. 2.2 Unscrew and remove screws -1-  .
    3. 2.3 Disengage fold-out compartment -2-  from the seat frame.
  3. Only on the driver seat on vehicles with front 8-way standard seat (I-no. Q1A):

    Only on the passenger seat without fire extinguisher (under the passenger seat) (I-no. 6A7) on vehicles with front 8-way standard seat (I-no. Q1A):

    Remove front cover -2-  .

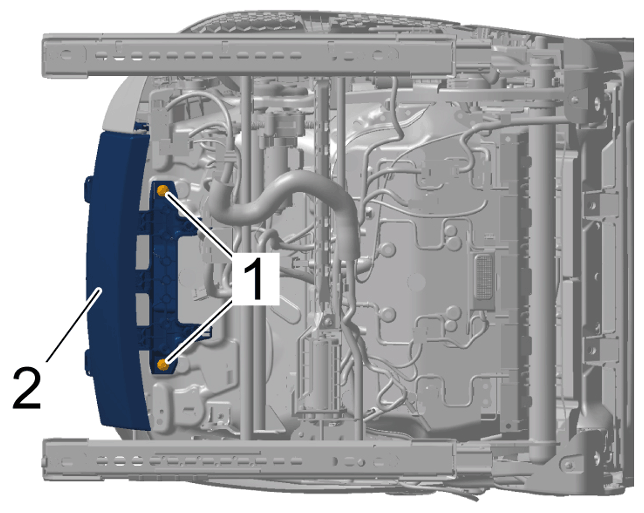

    G15280257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front cover

    1. 3.1 Unscrew and remove screws -1-  .
    2. 3.2 Disengage front cover -2-  from the seat frame.
  4. Disengage clamping strip -2-  and detach front seat cover -1-  from the seat frame.

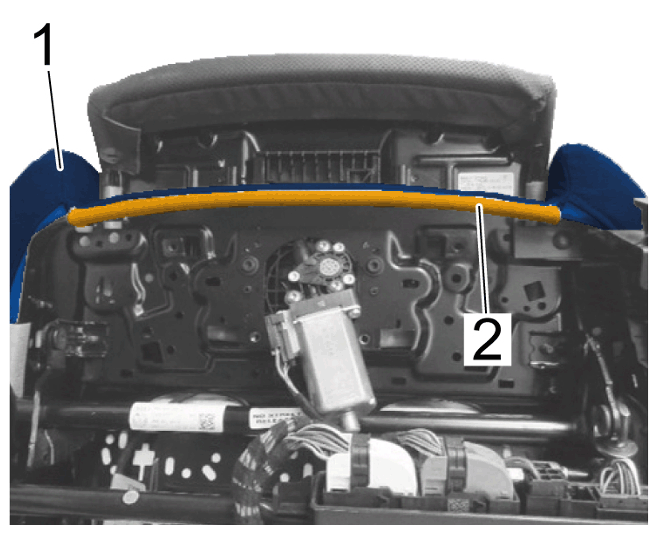

    G15280258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for front seat

  5. Disengage clamping strip -2-  and detach front seat cover -1-  at the rear on the seat frame.

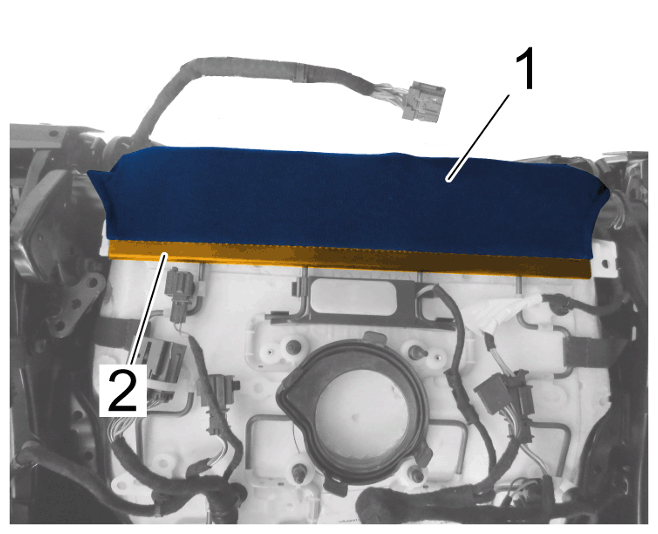

    G15280259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat cover, rear

  6. Disengage front seat cover -3-  at the inside.

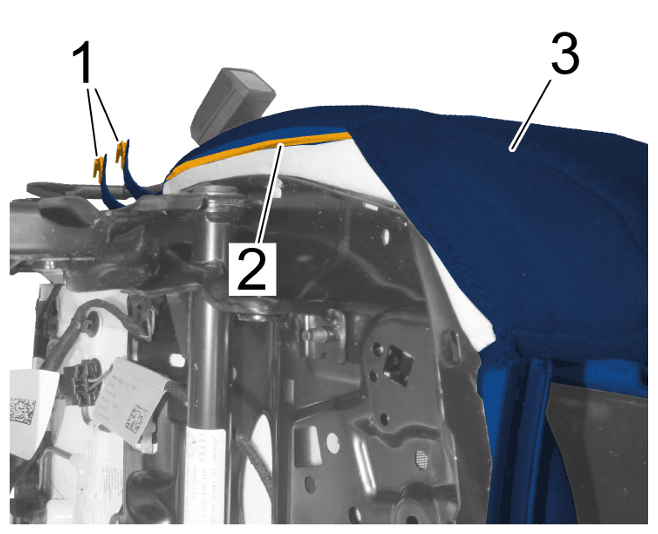

    G15280260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Font seat cover, inside

    1. 6.1 Disengage tension straps -1-  and guide them out.
    2. 6.2 Disengage clamping strip -2-  and detach front seat cover -3-  at the inside on the seat frame.
  7. Disengage tension straps -1-  , guide them through and detach front seat cover -2-  at the outside on the seat frame.

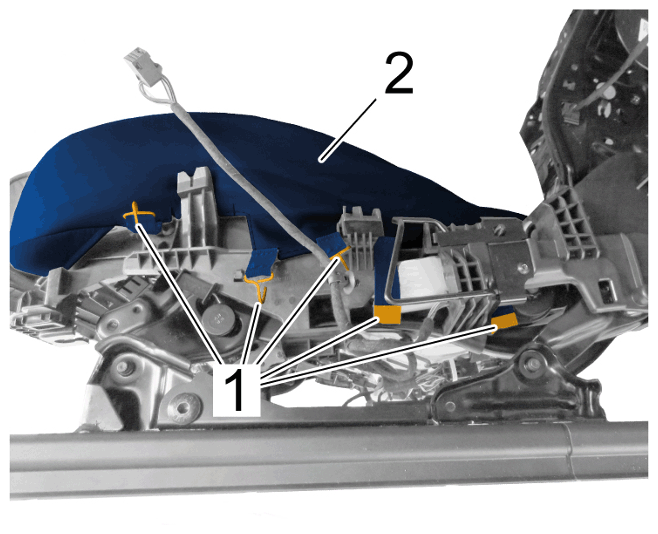

    G15280261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tension straps, outside

  8. Only for vehicles with front 18-way sports seats or front 14-way comfort seat (I-no. Q1J or Q2J):

    Detach padding for seat-surface extension.

    Information

    Carefully fold front seat cover up and over on the seat-surface extension to prevent the seat cover from tearing at the corners.

    1. 8.1 Disengage clamping strip -2-  on the seat-surface extension and fold the front seat cover -1-  up and over.

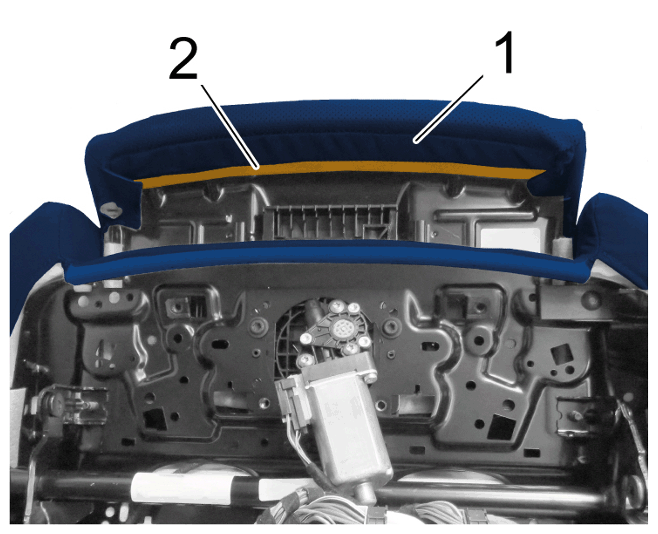

      G15280262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front seat cover on seat-surface extension

    2. 8.2 Disengage clamping strips -2-  and move front seat cover -1-  upwards in the seat-surface extension area.

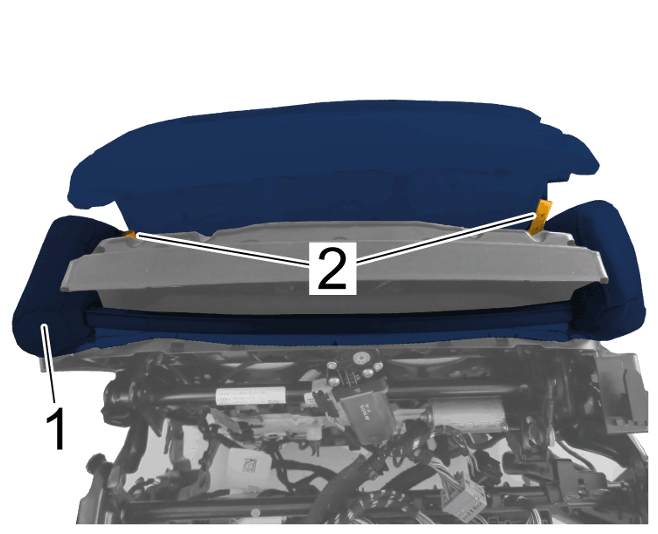

      G15280263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front seat cover on seat-surface extension

    3. 8.3 Move padding -1-  for the seat-surface extension towards the rear.

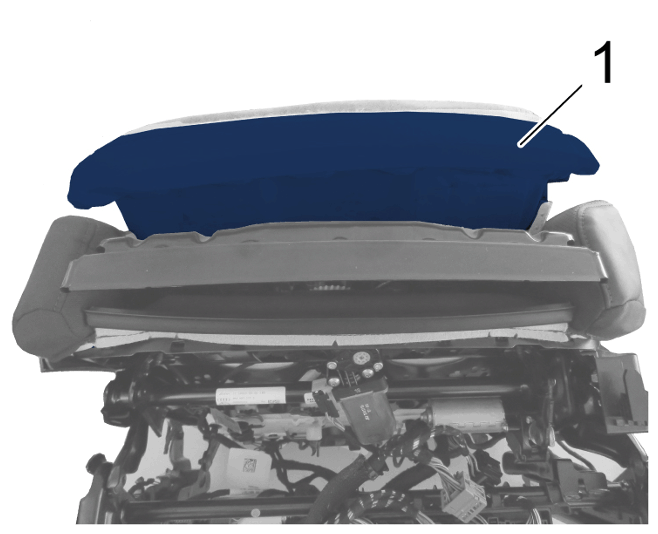

    G15280264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Padding for seat-surface extension

  9. Only for vehicles with independently adjustable seat heating for front seats (I-no. 4A3):

    Release and disconnect electric plug connection -1-  and guide electric wire harness -2-  up through the seat frame and front seat cover.

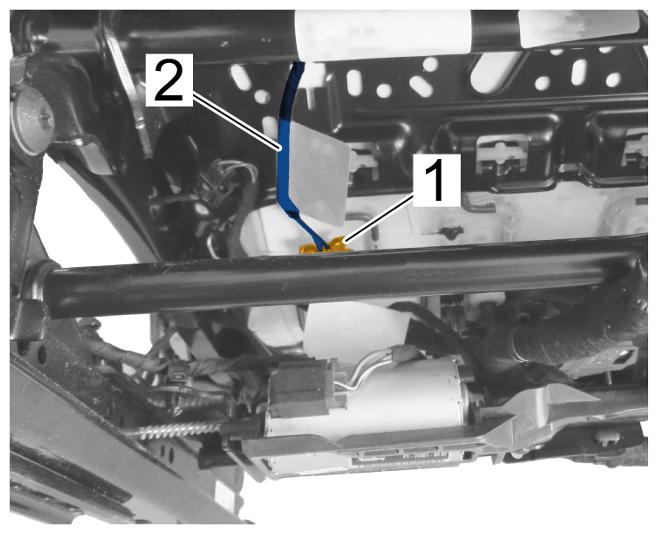

    G15280265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for seat heating for seat-surface extension

  10. Only for vehicles with independently adjustable seat heating for front seats (I-no. 4A3):

    Disconnect electric wire harness for seat heating -3-  at the seat frame.

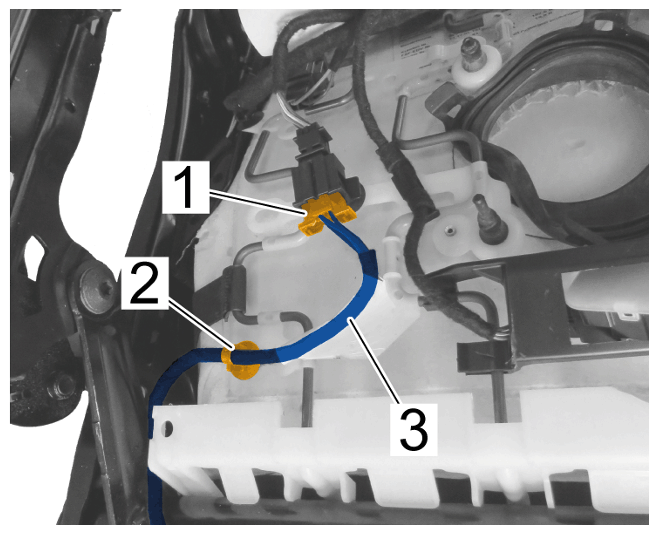

    G15280266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for seat heating

    1. 10.1 Release and unplug electric plug connection -1-  .
    2. 10.2 Remove clips -2-  .
    3. 10.3 Disconnect electric wire harness for seat heating -3-  at the seat frame and guide it out.
  11. Only for vehicles with front 18-way sports seats or front 14-way comfort seat (I-no. Q1J or Q2J):

    Disengage rear clamping strip -1-  on the seat-surface extension -2-  .

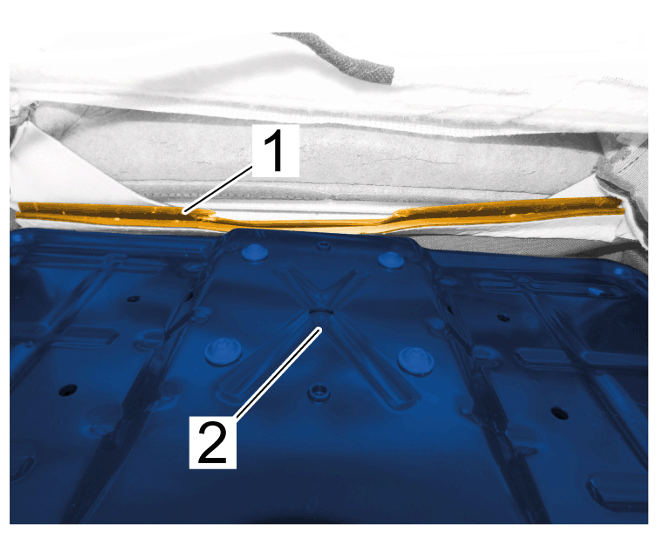

    G15280267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clamping strip on seat-surface extension

  12. Only for vehicles with front 8-way standard seat (I-no. Q1A):

    Remove padding for front seat -1-  .

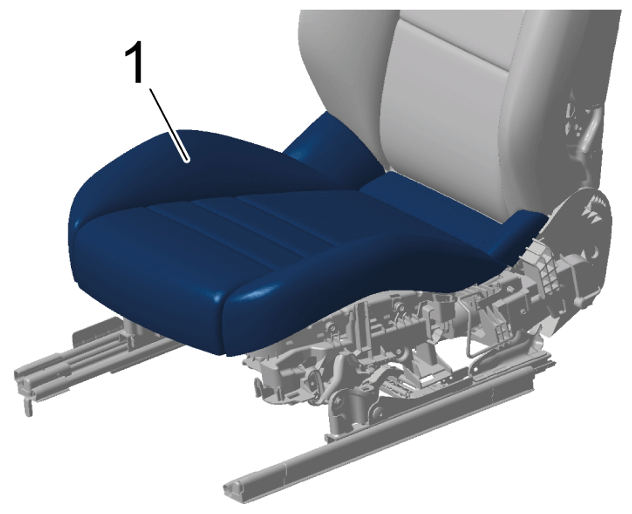

    G15280268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Padding for front seat - standard seat

  13. Only for vehicles with front 18-way sports seats or front 14-way comfort seat (I-no. Q1J or Q2J):

    Remove padding for front seat -1-  .

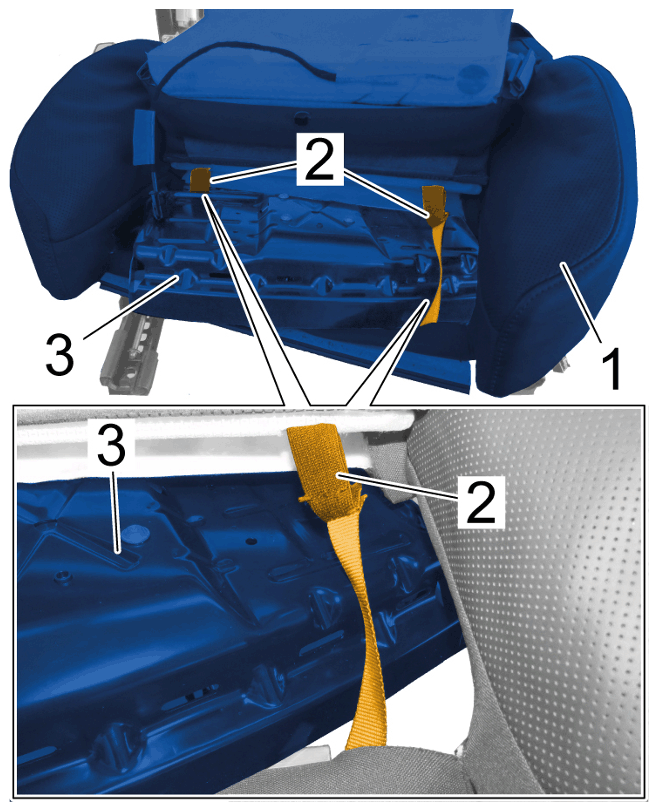

    G15280269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Padding for front seat - comfort seat/sports seat

    1. 13.1 Lift up padding for front seat -1-  at the rear.
    2. 13.2 Guide out the front tension straps -2-  under the seat-surface extension -3-  .
    3. 13.3 Remove padding for front seat -1-  .
