Removing Front Seat Surface Suction Fan

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

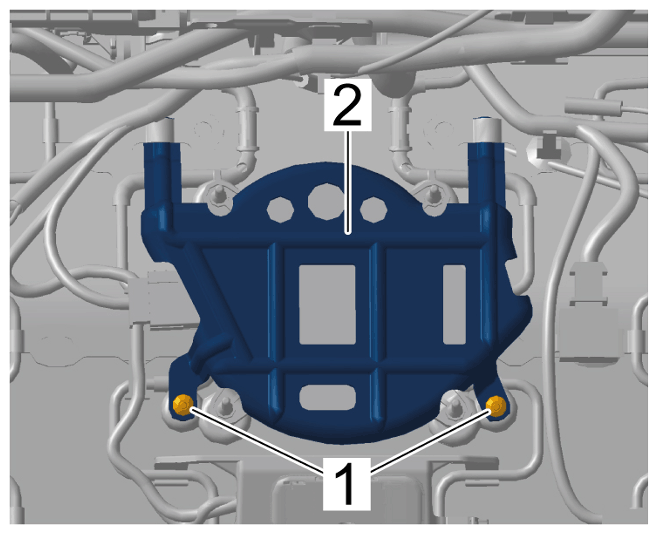

  1. Drill out rivets -1-  and remove the protection cap -2-  .
    G15280246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rivets

  2. Disengage rubber pins -1-  and guide through the front seat-surface suction fan -2-  .
    G15280247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat-surface suction fan

  3. Disengage clips -1-  and detach front seat-surface suction fan -2-  from the padding.
    G15280248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

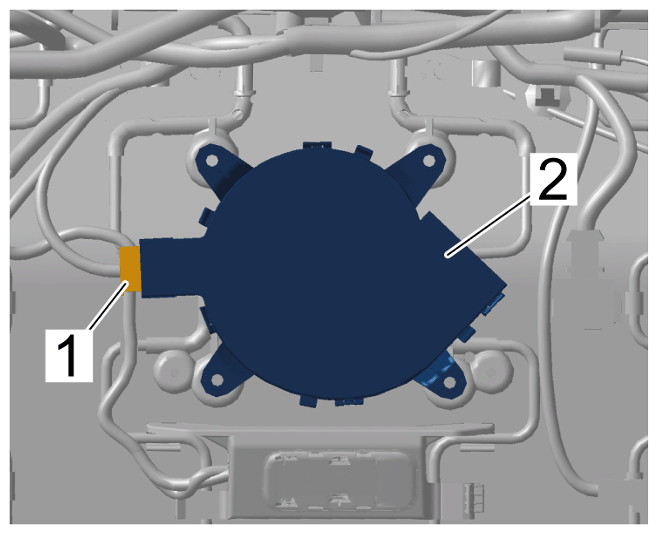

  4. Release and disconnect electric plug connection -1-  and remove front seat-surface suction fan -2-  .
    G15280249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
