Removing Seat-Surface Extension

Information

Carefully fold front seat cover up and over on the seat-surface extension to prevent the seat cover from tearing at the corners.

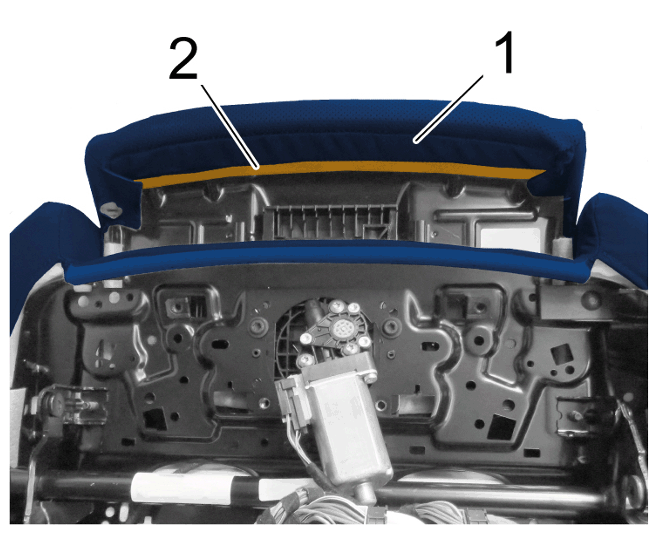

1. Disengage clamping strip -2-  on the seat-surface extension and fold the front seat cover -1-  up and over.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front seat cover on seat-surface extension

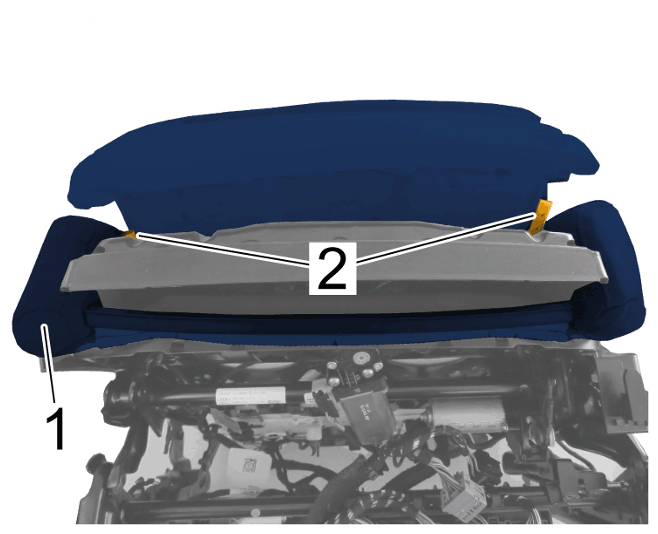

2. Disengage clamping strips -2-  and move front seat cover -1-  upwards in the seat-surface extension area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front seat cover on seat-surface extension

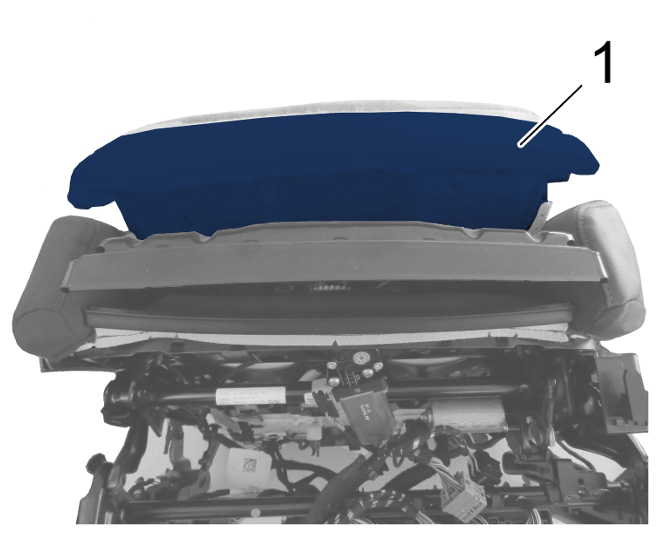

3. Move padding -1-  for the seat-surface extension towards the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Padding for seat-surface extension

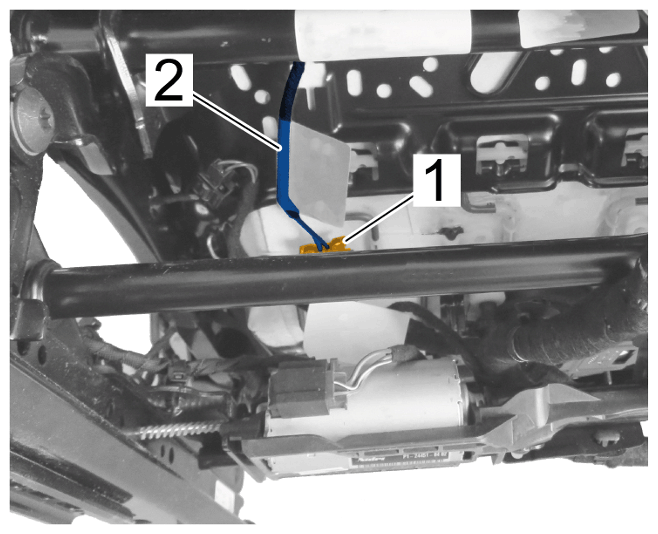

4. Only for vehicles with independently adjustable seat heating for front seats (I-no. 4A3):

   Release and disconnect electric plug connection -1-  and guide electric wire harness -2-  up through the seat frame and front seat cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness for seat heating for seat-surface extension

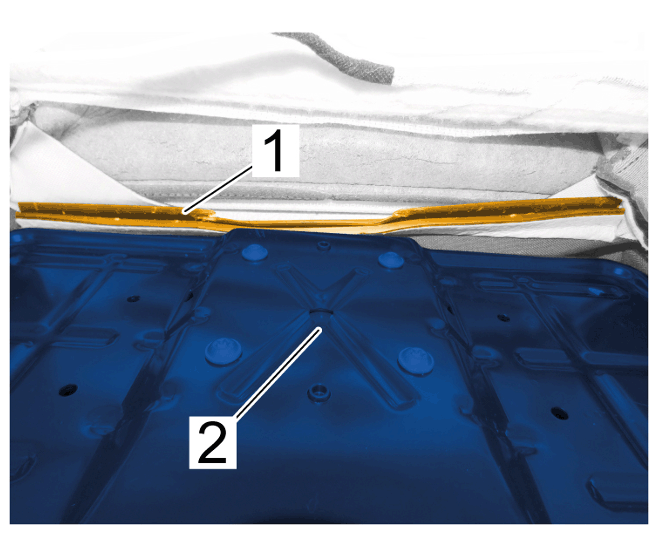

5. Disengage rear clamping strip -1-  on the seat-surface extension -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clamping strip on seat-surface extension

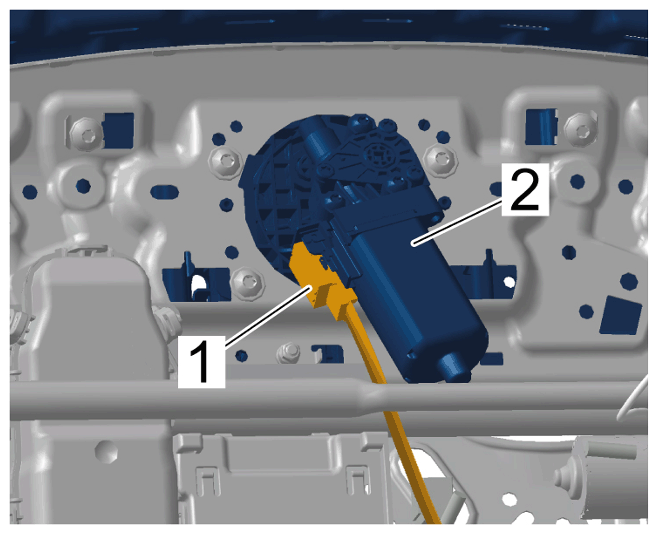

6. Release and disconnect electric plug connection -1-  on drive motor for seat-surface extension -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for seat-surface extension

7. Remove seat-surface extension -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seat surface extension

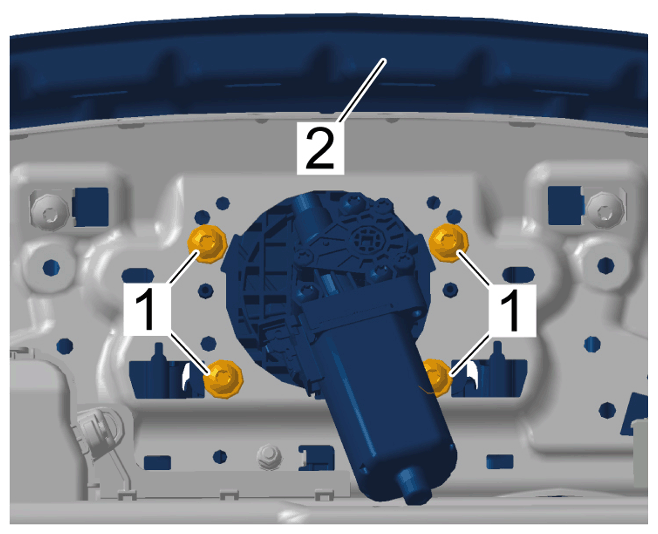

   1. 7.1 Unscrew and remove screws -1-  .
   2. 7.2 Lift padding on seat-surface extension and remove seat-surface extension -2-  .
