Trailer Hitch

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

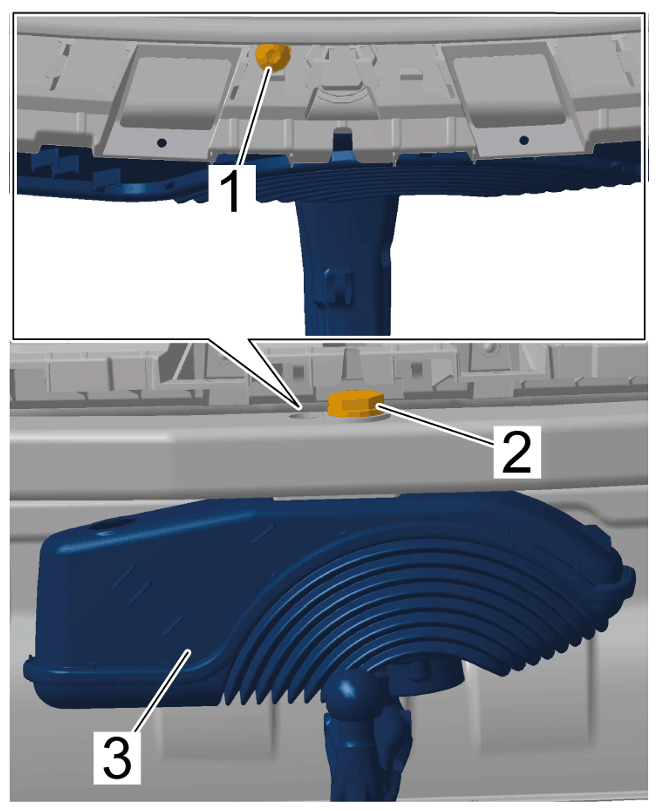

Nut on ground point for wire harness for trailer hitch	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

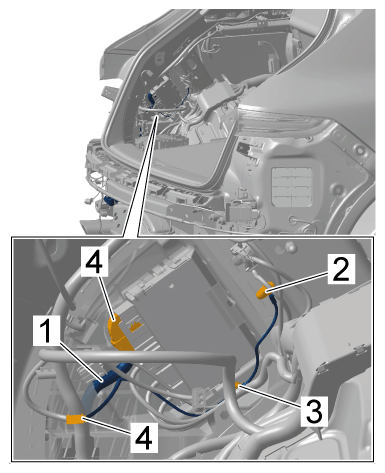

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wire harness in side panel

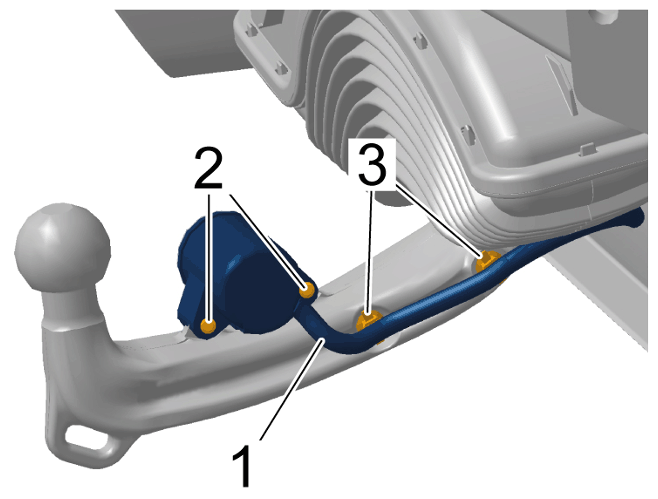

Plug socket for trailer hitch to trailer hitch	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Trailer hitch motor to trailer hitch	Item 2	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Trailer hitch motor to trailer hitch	Item 1	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

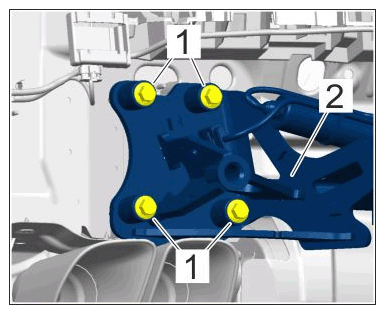

Screws securing trailer hitch to body	Item 1	Tightening torque	110 Nm (81.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for trailer hitch
