Sun Blind
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |

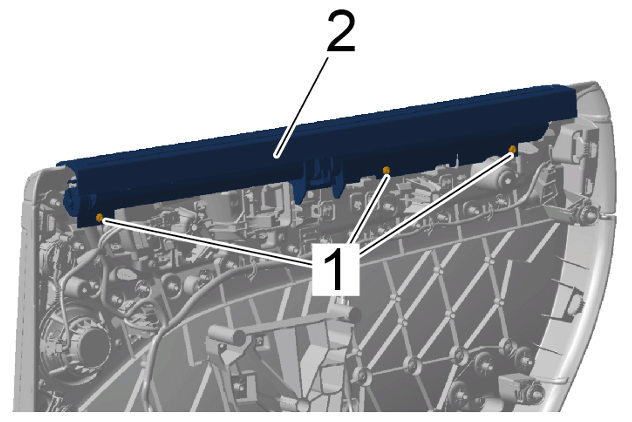

| Screws securing sun blind (on door window) to rear door panel |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

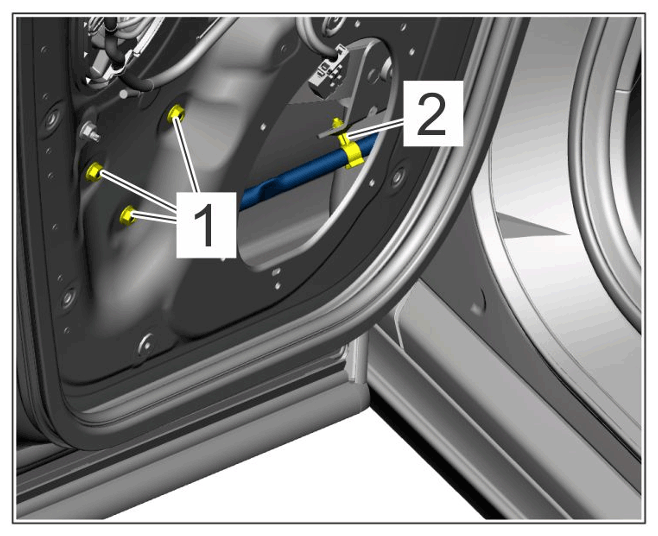

| Nuts securing sun blind (drive) to basic door frame |
Item 1 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Nuts |
