Sliding-Roof Panel
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

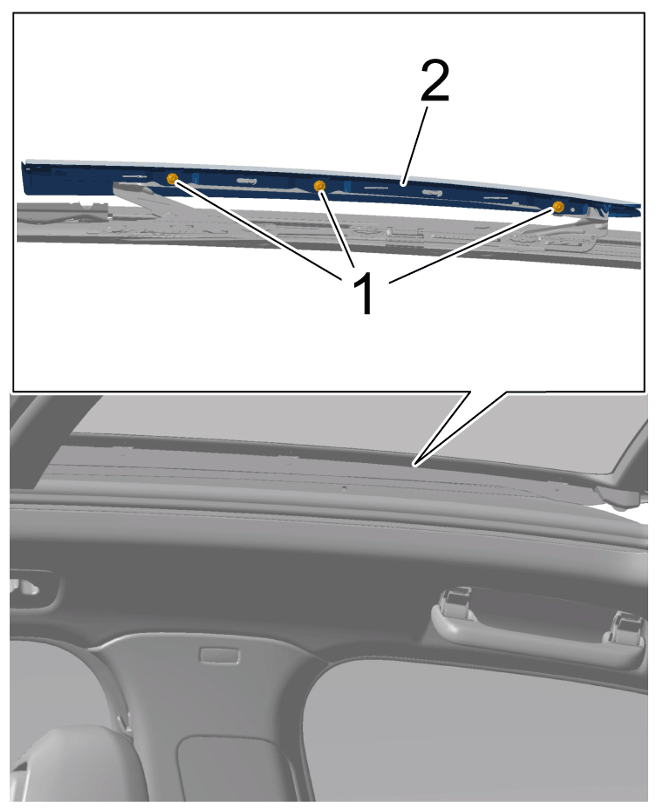

| Screws for sliding-roof panel | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Sliding-roof panel |
||||

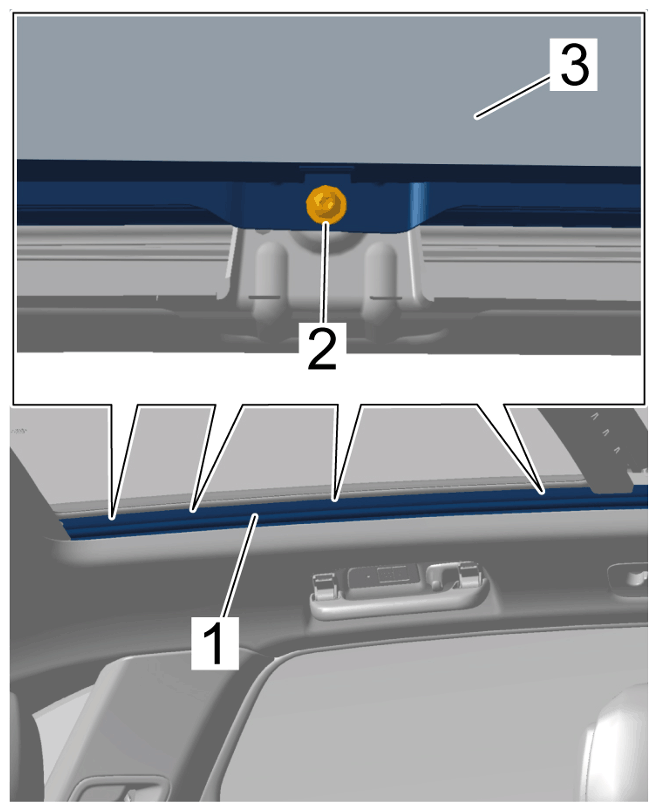

| Screws for rear panoramic roof glass panel | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Rear panoramic roof glass panel |
||||

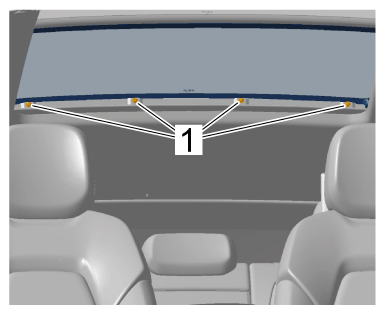

| Screws securing panoramic roof glass panel to rear roof assembly | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | |
|
Rear screws |
||||
