Roof Sun Blind

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

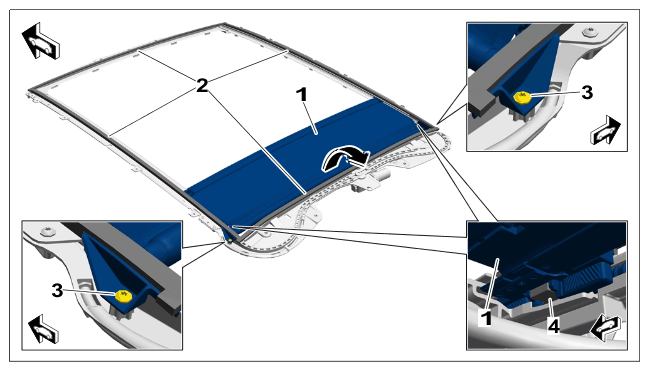

Fig 1: Sun Blind Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind

1	Sun blind
2	Foam seals
3	> Tightening torque 3 Nm (2 ftlb.)
4	Operating cable driver

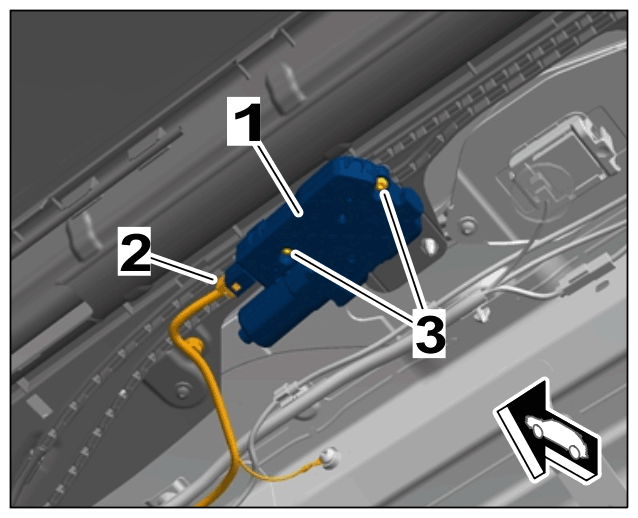

Fig 2: Sun Blind Motor Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind motor

1	Sun blind motor
2	Electric plug connection
3	> Tightening torque 6 Nm (4.5 ftlb.)

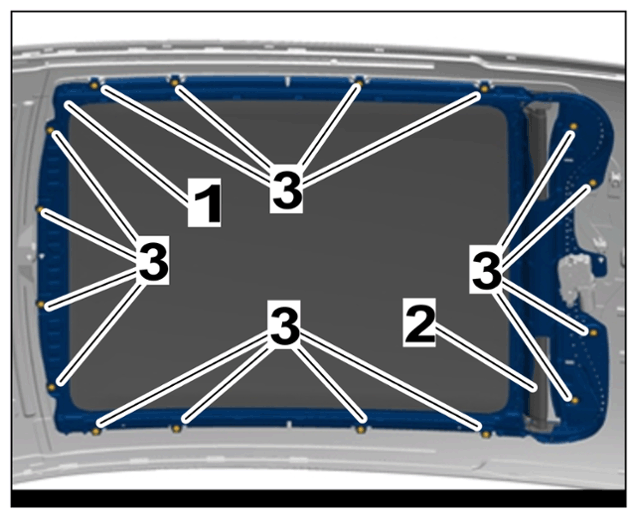

Fig 3: Roof Sun Blind Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof sun blind

1	Frame for roof sun blind
2	Roof sun blind
3	> Tightening torque 6 Nm (4.5 ftlb.)

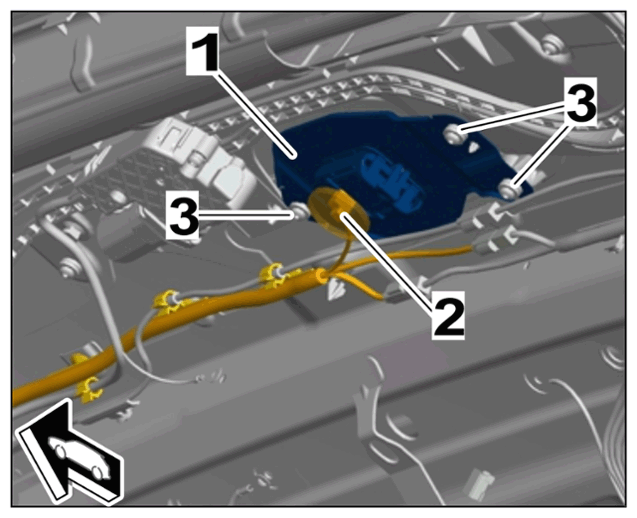

Fig 4: SDARS Antenna Holder Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

SDARS antenna holder

1	SDARS antenna holder
2	Electric plug connection for SDARS antenna
3	> Tightening torque 6 Nm (4.5 ftlb.)
