Roof Spoiler (Coupe)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

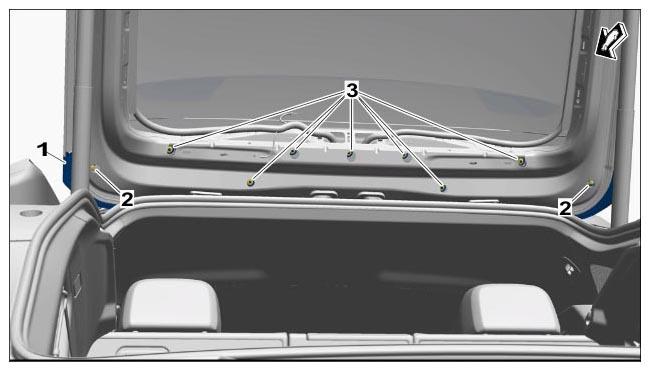

Fig 1: Roof Spoiler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof spoiler

1	Roof spoiler
2	> Tightening torque 2.8 Nm (1.8 ftlb.)
3	> Tightening torque 6 Nm (4.5 ftlb.)

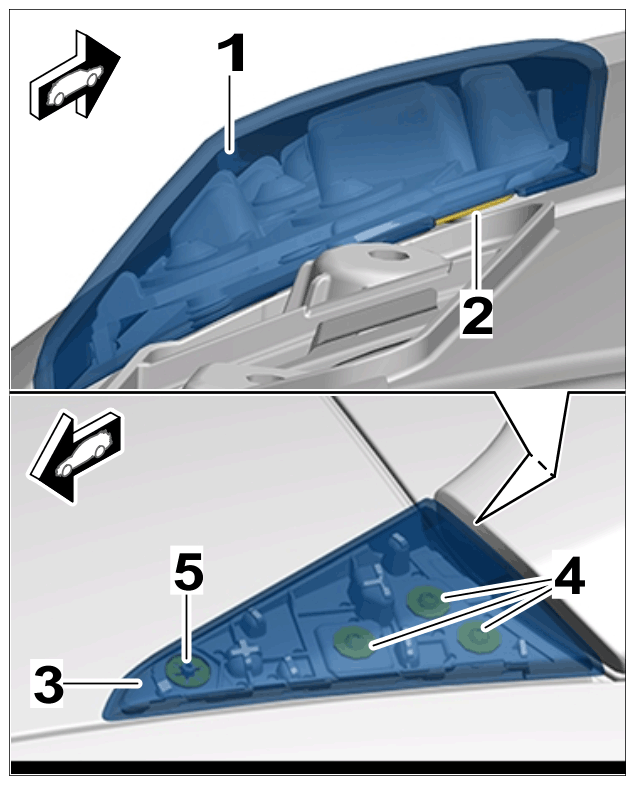

Fig 2: Spoiler Fins Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spoiler fins

1	Upper part of spoiler fins
2	Locking tab
3	Lower part of spoiler fins
4	> Tightening torque 2.8 Nm (1.8 ftlb.)
5	Clamping washer
