Rear-View Mirror

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance
Rear-view mirror	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

Location	Description	Type	Basic value
Screws on rear-view mirror housing (upper part)	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw for rear-view mirror housing (upper part)	Item 2	Tightening torque	0.9 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws on trim panel for mirror base	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on trim panel for mirror base

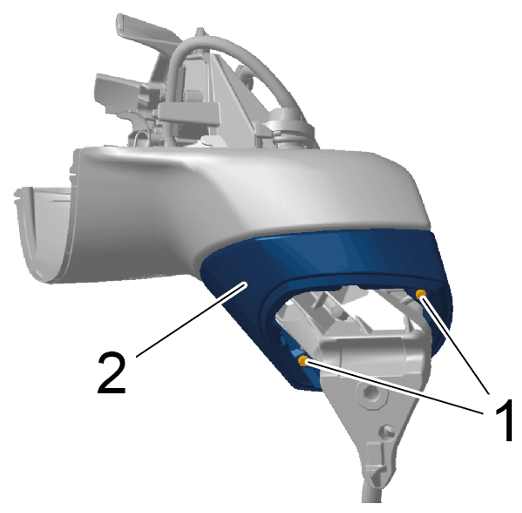

Screws for rear-view mirror housing (lower part)	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear-view mirror housing (lower part)

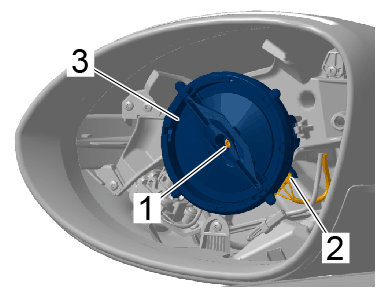

Screw for mirror adjusting motor	Item 1	Tightening torque	1.4 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for mirror adjusting motor
