Rear Three-Point Belt

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

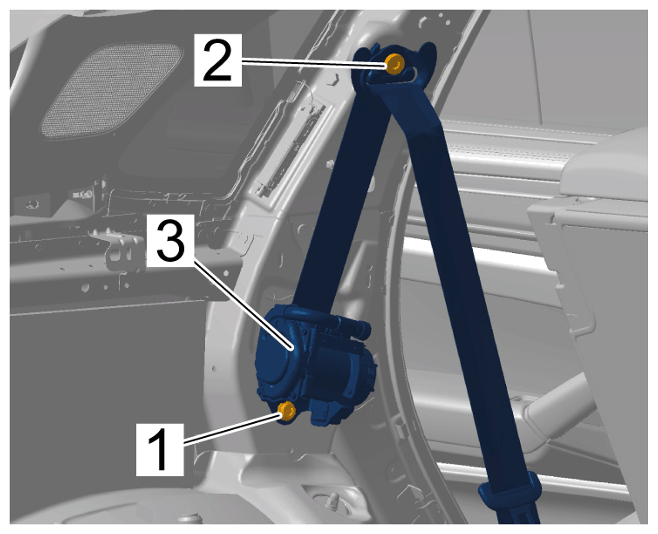

Screw for belt retractor	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for deflection roller
Screw for deflection roller	Item 2	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for deflection roller

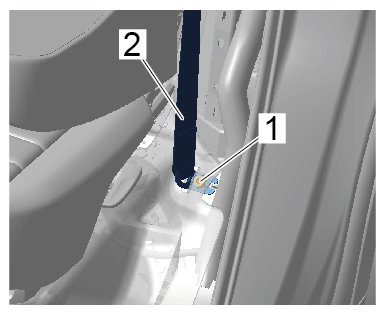

Screw for rear three-point belt	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt fitting

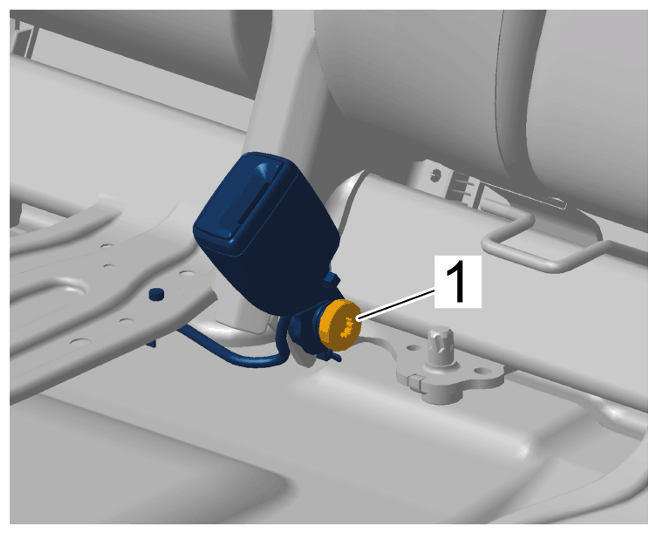

Rear seat-belt buckle to rear seat frame	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

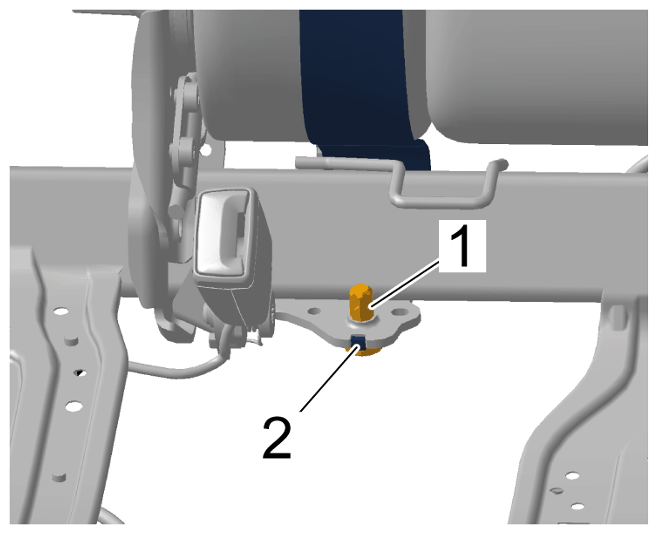

Screw securing seat belt mount for seat belt on middle seat to seat frame	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt fitting

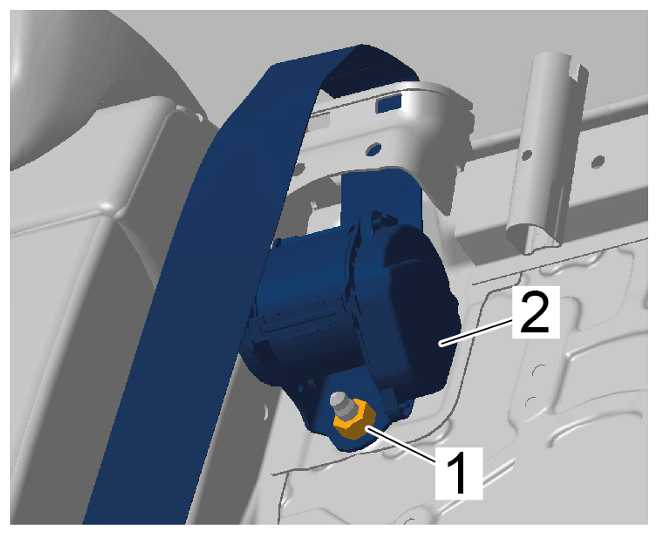

Nut on belt retractor for seat belt on middle seat to seat frame		Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on belt retractor for rear three-point belt on middle seat
