Rear Spoiler (Coupe)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

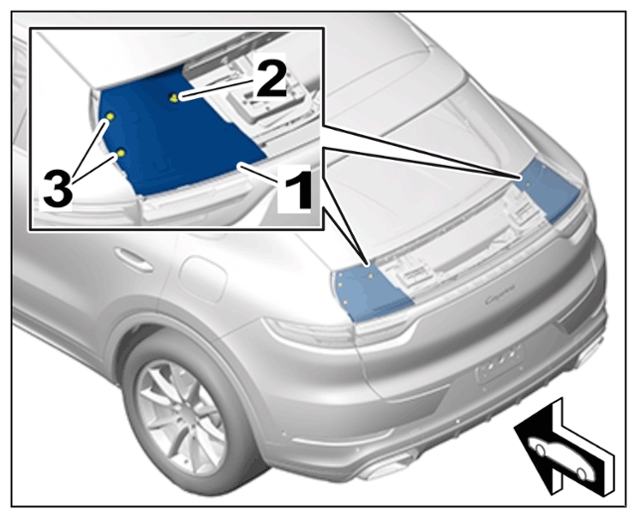

Fig 1: Trim Panels Under Rear Spoiler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panels under rear spoiler

1	Trim panels
2	Expansion rivet
3	> Tightening torque 8 Nm (6 ftlb.)

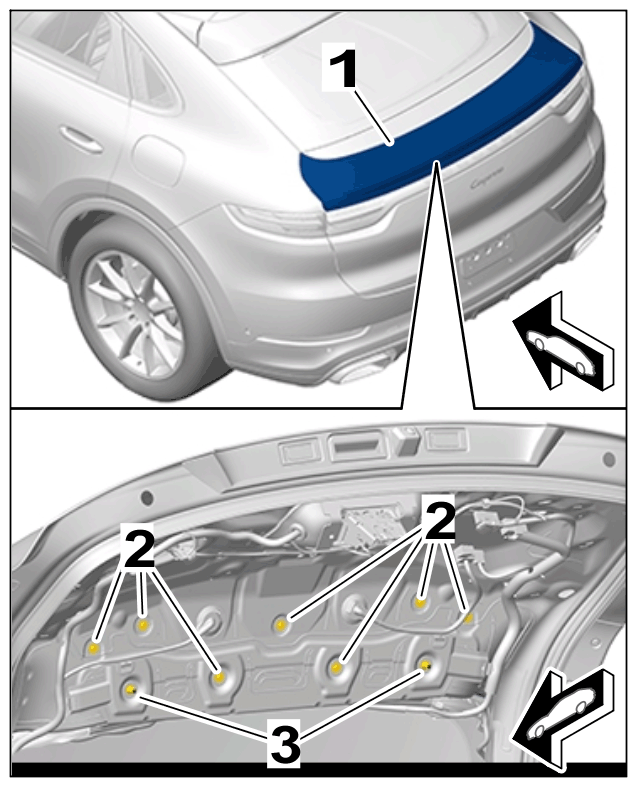

Fig 2: Rear Spoiler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler

1	Rear spoiler
2	> Tightening torque 8 Nm (6 ftlb.)
3	> Tightening torque 8 Nm (6 ftlb.)

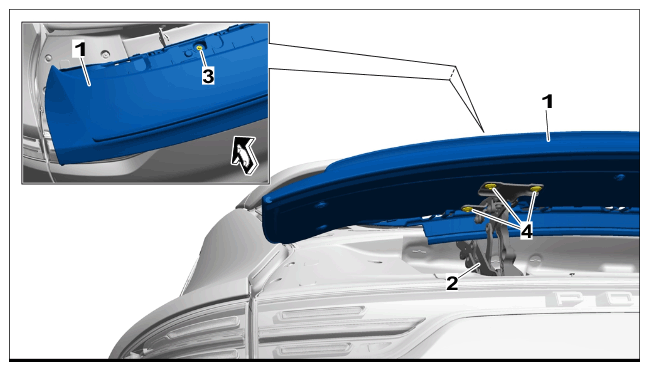

Fig 3: Rear Spoiler Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler

1	Rear spoiler
2	Rear spoiler drive unit
3	> Tightening torque 4 Nm (3 ftlb.)
4	> Tightening torque 8 Nm (6 ftlb.)
