Rear Retaining Strips (Coupe)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

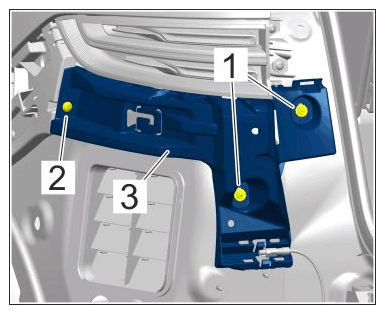

Fig 1: Side Retaining Strip Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side retaining strip

1	> Tightening torque 3 Nm (2 ftlb.)
2	Screw securing retaining strip for tail light to side retaining strip (See Retaining strip for tail light)
3	Clip

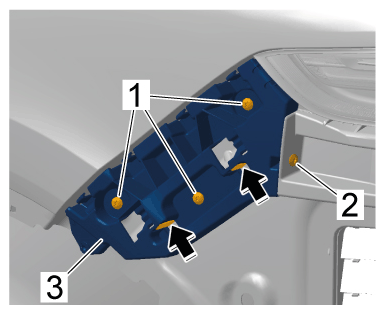

Fig 2: Retaining Strip For Tail Light Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip for tail light

1	> Tightening torque 4 Nm (3 ftlb.)
2	> Tightening torque 2.5 Nm (1.75 ftlb.)
3	Retaining strip for tail light

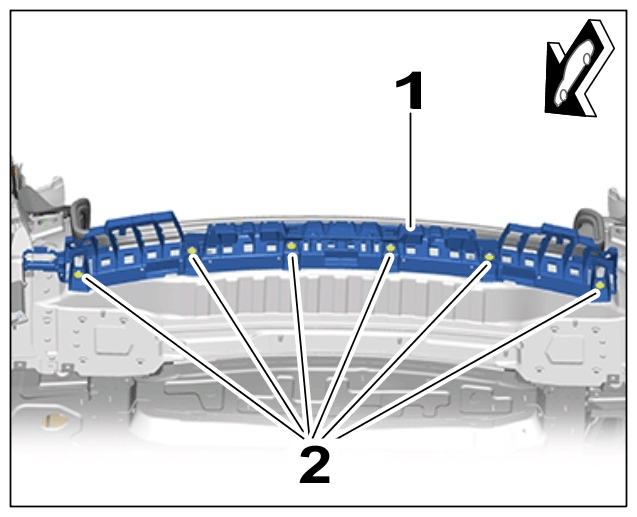

Fig 3: Centre Retaining Strip Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre retaining strip

1	Centre retaining strip
2	> Tightening torque 4 Nm (3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

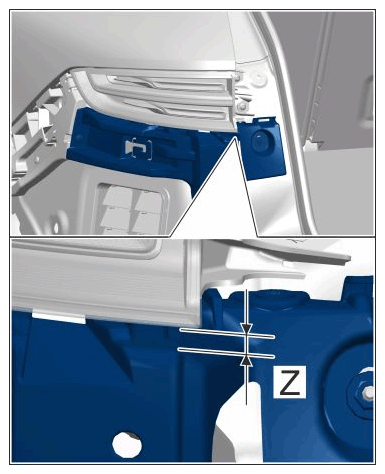

Gap from retaining strip to tail light, outer

Z	> Gap dimension 8 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

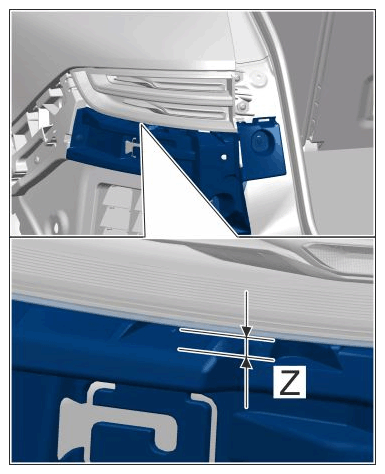

Gap from retaining strip to tail light, inner

Z	> Gap dimension 6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

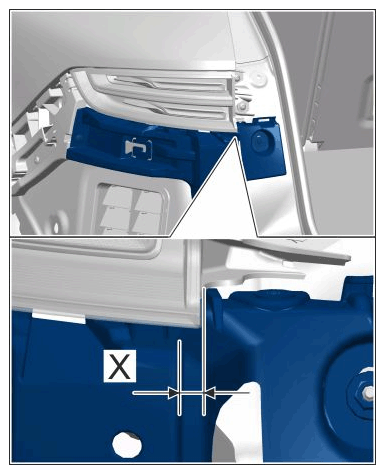

Gap from retaining strip to tail light

X	> Gap dimension 6 mm
