Rear Power Windows Mechanism

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Nut securing rear power window mechanism to door	Items 1 and 2	Tightening torque	7.5 Nm (5.5 ftlb.)

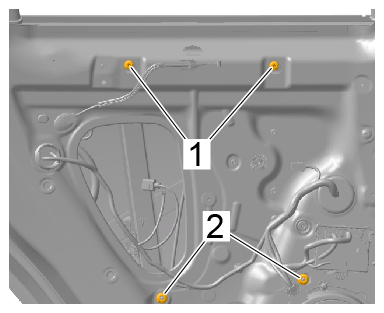

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for rear power window mechanism
Screw securing power window motor to rear power window mechanism	Item 2	Tightening torque	3.5 Nm (2.6 ftlb.)

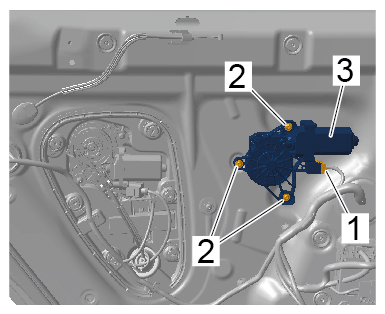

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear power window motor
