Rear Bumper

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

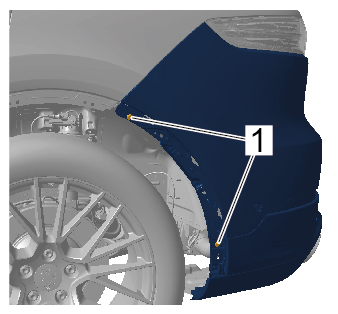

Screws securing rear bumper to retaining frame	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)

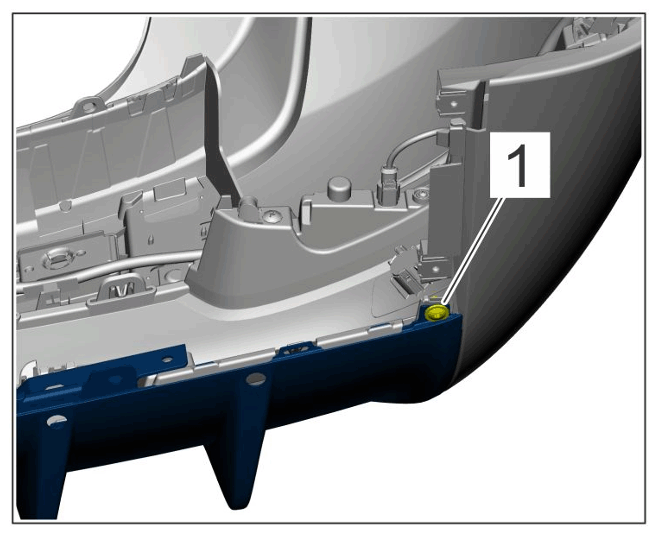

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear bumper to retaining frame

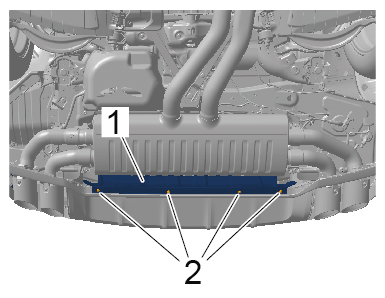

Screws securing heat shield to rear bumper	Item 2	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing heat shield to rear bumper

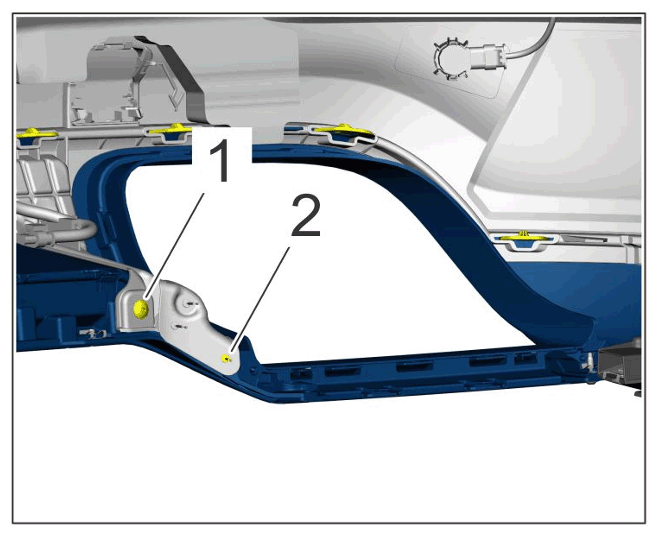

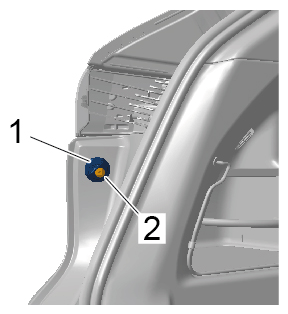

Screw securing anchor block tailgate to rear bumper	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing tailgate anchor block to rear bumper

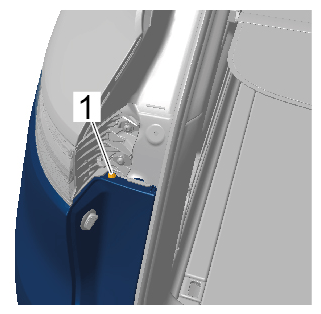

Screw securing rear bumper to frame for light	Item 1	Tightening torque	2, 5 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear bumper to frame for light

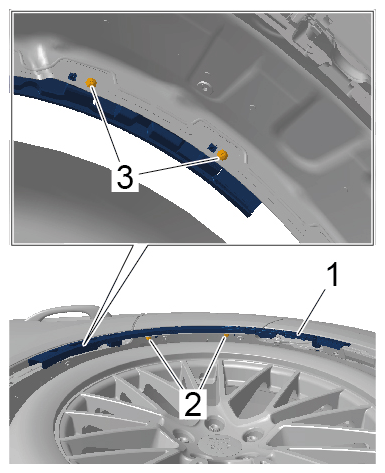

Screws on mounting for rear wheel cover	Item 2, 3	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on mounting for rear wheel cover
Screws securing rear trim element to rear bumper	Item 1	Tightening torque	2, 3 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear trim element to rear bumper

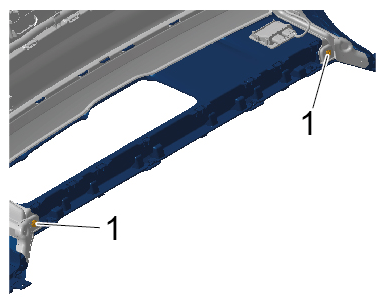

Rear trim element on rear bumper	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear apron

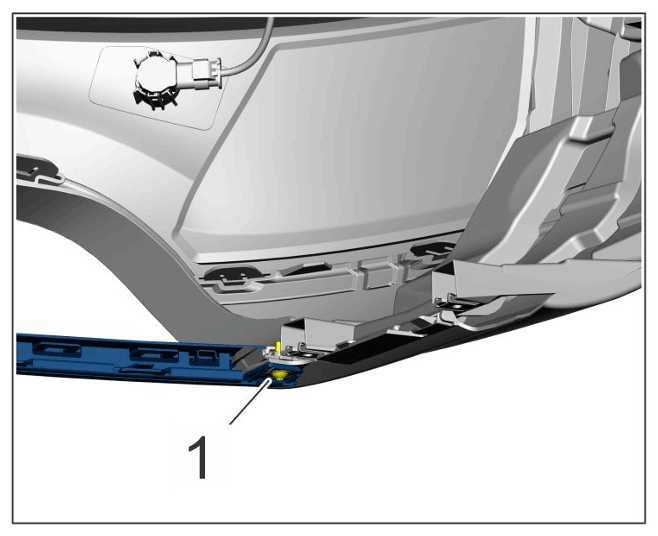

Rear trim element (Sport Design package) on rear bumper	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear apron
Rear trim element (trim strip) to rear rear trim element	Item 1	Tightening torque	3, 5 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on trim strip
