Rear Bumper (Coupe)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

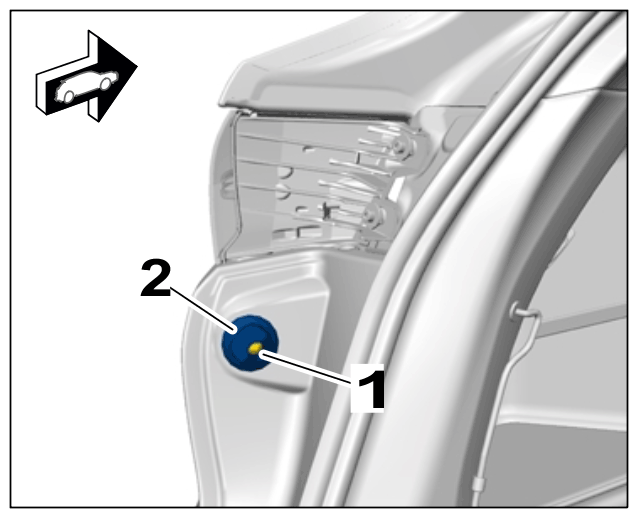

Fig 1: Retaining Frame Screws With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on retaining frame

1	> Tightening torque 2.5 Nm (1.8 ftlb.)

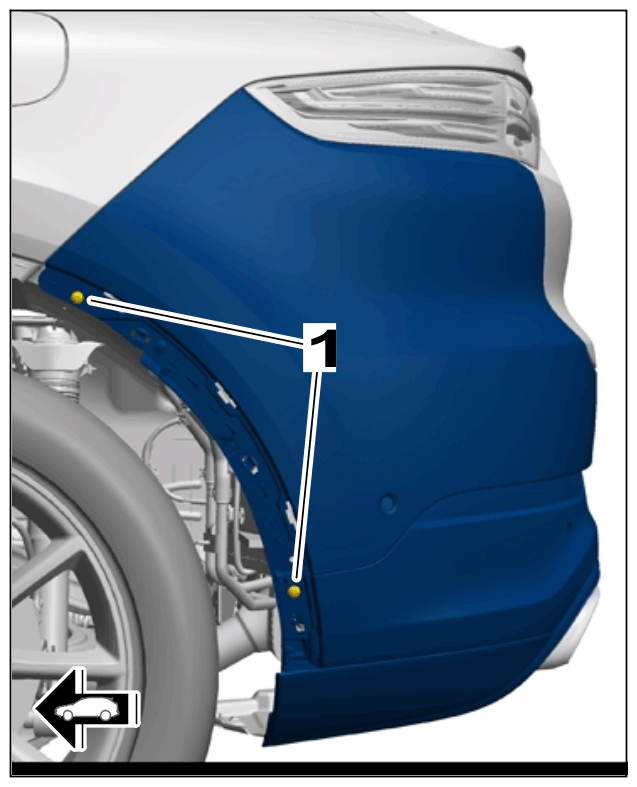

Fig 2: Rear Bumper Screws With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear bumper screws

1	> Tightening torque 2.5 Nm (1.8 ftlb.)

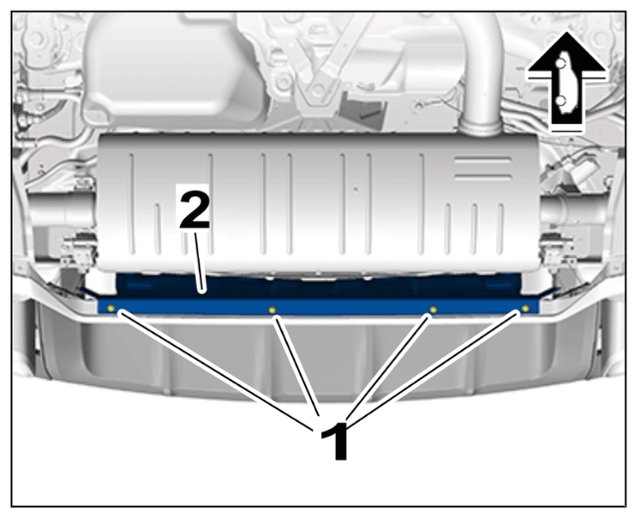

Fig 3: Shield On Rear Bumper Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shield on rear bumper

1	> Tightening torque 3.5 Nm (2.6 ftlb.)
2	Shield on rear bumper

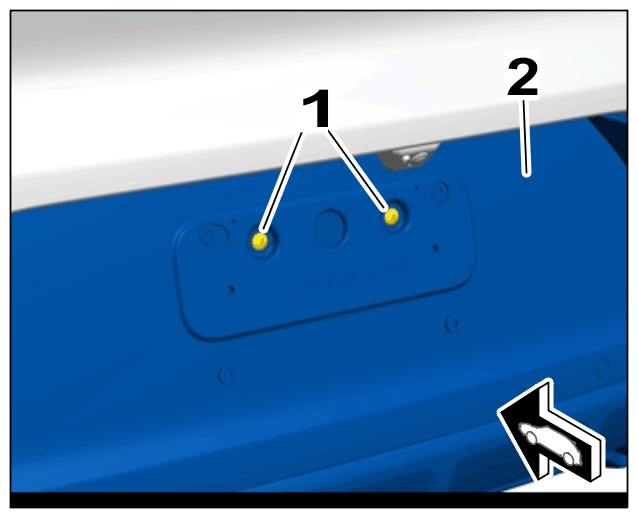

Fig 4: Rear Lid Anchor Block Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid anchor block

1	> Tightening torque 10 Nm (7.4 ftlb.)
2	Rear lid anchor block to rear bumper

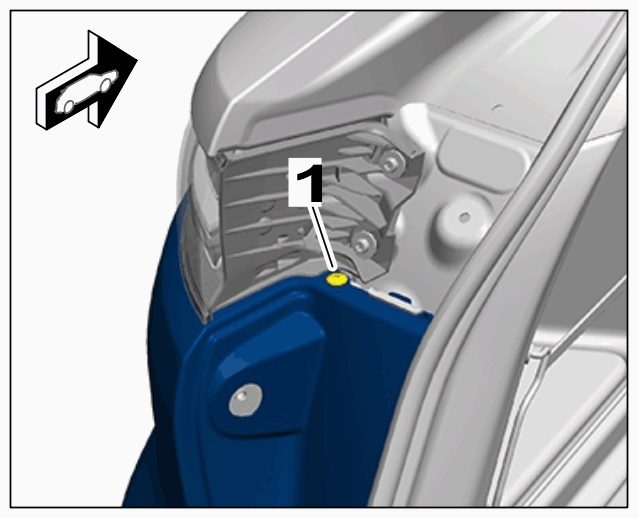

Fig 5: Light Frame Screws With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on light frame

1	> Tightening torque 2.5 Nm (1.8 ftlb.)

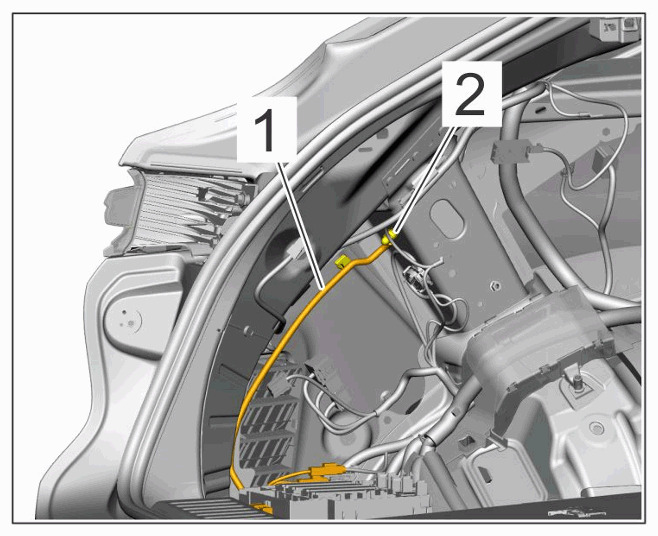

Location	Description	Type	Basic value	Tolerance
Nut securing earth line to earth support point	Item 2	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line
