Technical Values: Overview

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

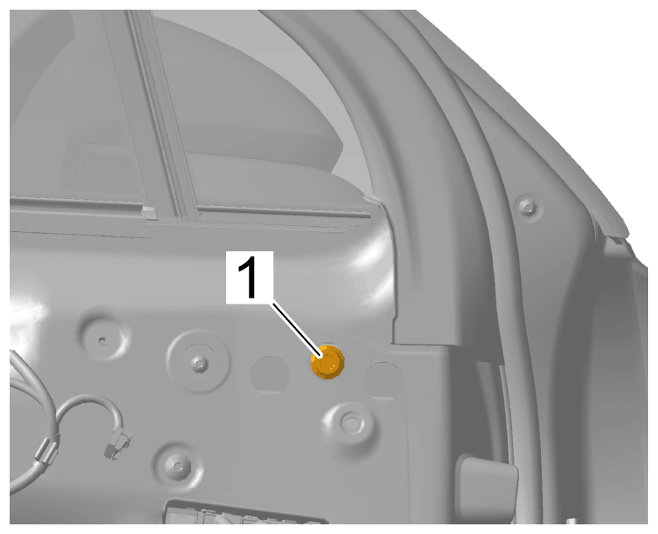

Rear-view mirror Item 1 Tightening torque 20 Nm (15 ftlb.)
G15239212Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Nut securing front power window mechanism to door Items 1 and 2 Tightening torque 7.5 Nm (5.5 ftlb.)

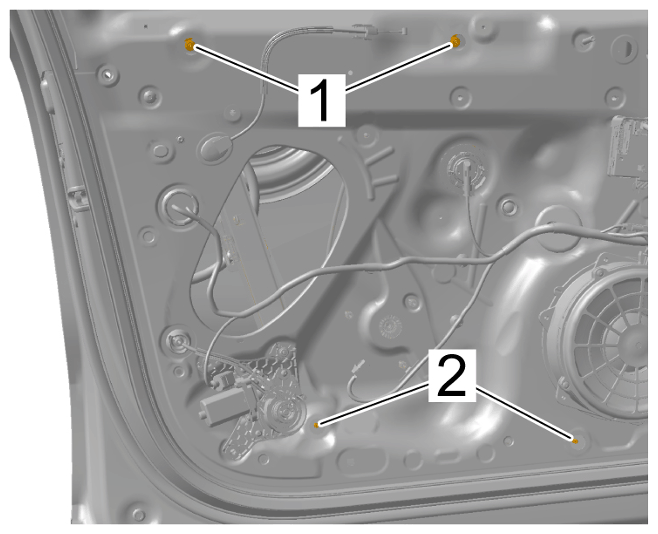

G15239213Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

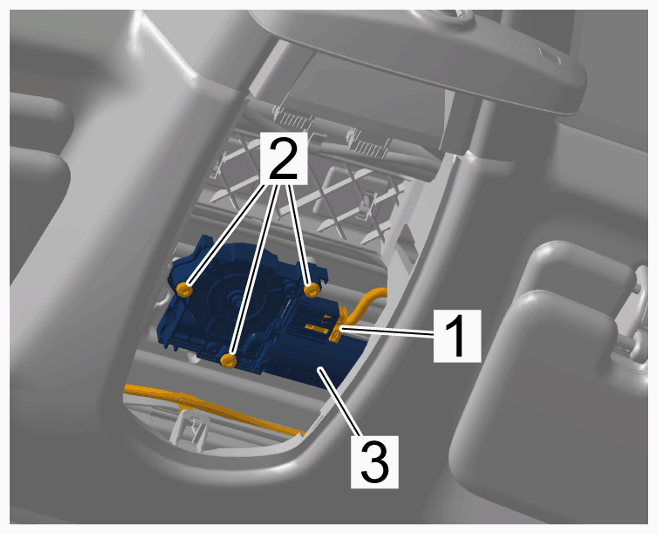

Screw securing power window motor to power window mechanism Item 4 Tightening torque 3.5 Nm (2.6 ftlb.)

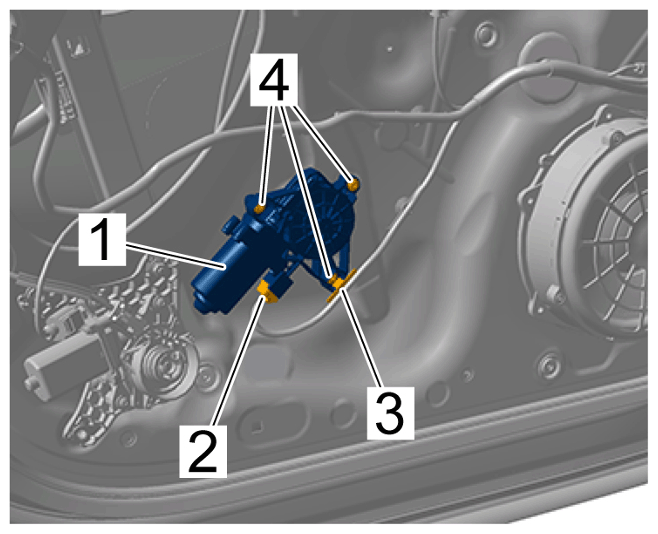

G15239214Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power window motor
Nut securing rear power window mechanism to door Items 1 and 2 Tightening torque 7.5 Nm (5.5 ftlb.)

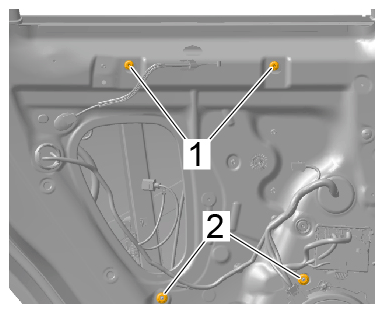

G15239215Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for rear power window mechanism
Screw securing power window motor to rear power window mechanism Item 2 Tightening torque 3.5 Nm (2.6 ftlb.)

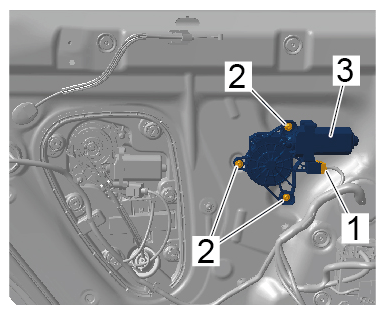

G15239216Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear power window motor

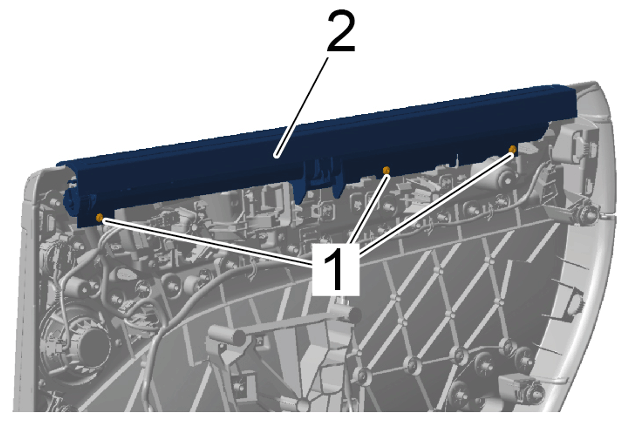

Screws securing sun blind (on door window) to rear door panel Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15239217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

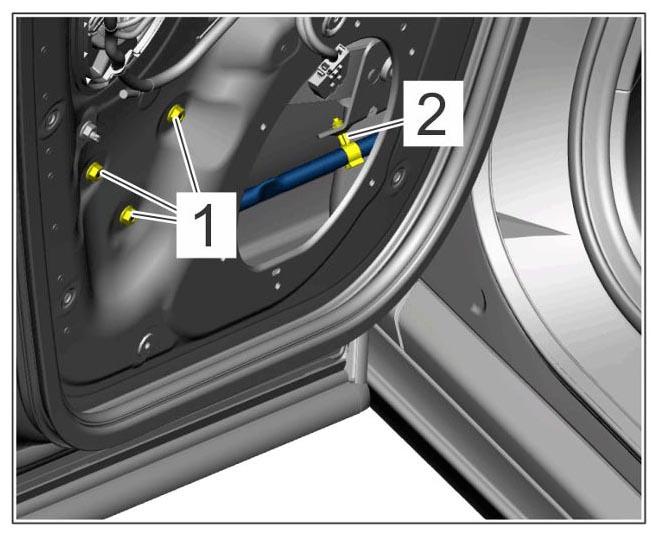

Nuts securing sun blind (drive) to basic door frame Item 1 Tightening torque 7.5 Nm (5.5 ftlb.)
G15239218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

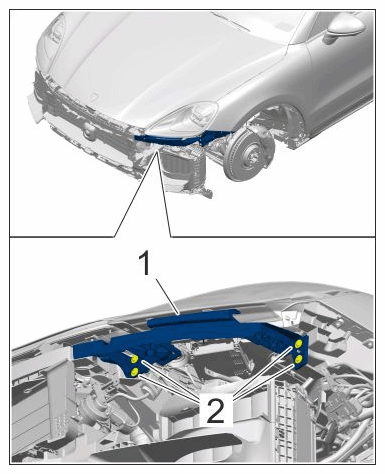

Screws securing retaining strip to front end   Tightening torque 6 Nm (4.5 ftlb.)
G15239219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts securing retaining strip to wing Item 1 Tightening torque 4 Nm (3 ftlb.)

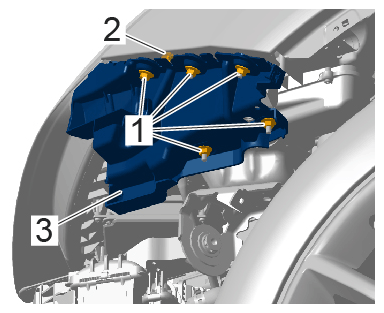

G15239220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

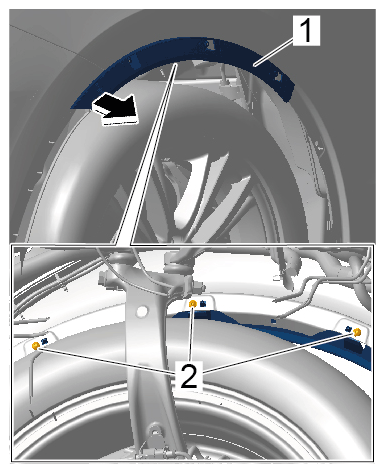

Screws securing wheel cover bracket to wing Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15239221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel cover bracket

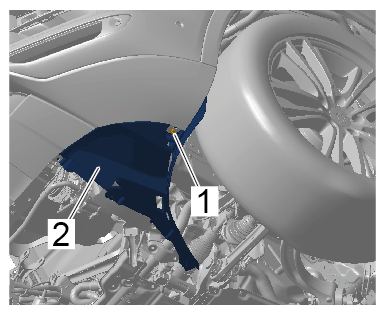

Screw securing air duct for brake to front apron, bottom Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on air duct for brake

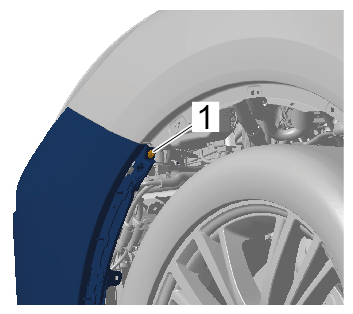

Screw securing front apron to wing Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15239223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on front apron
Screws securing front apron to front end, bottom Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)

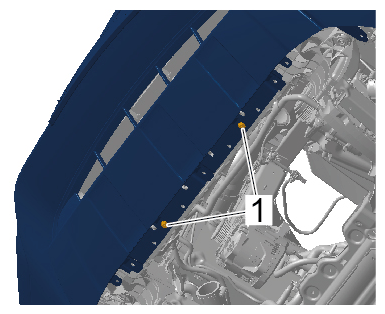

G15239224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front apron to front end at the bottom
Screws securing front apron to front end, top Item 1 Tightening torque 3 Nm (2 ftlb.)

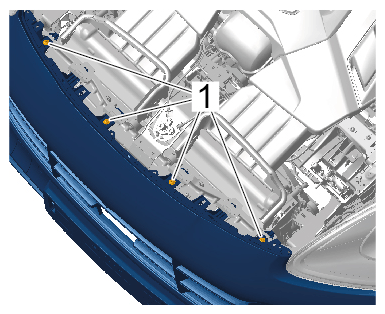

G15239225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front apron to front end at the top

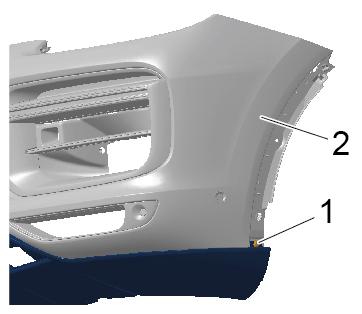

Screw securing front spoiler to front apron Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
G15239226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing front spoiler to front apron

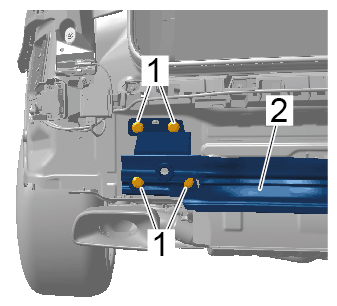

Rear bumper to bodyshell Item 1 Tightening torque 70 Nm (52 ftlb.)
G15239227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear bumper
Front bumper to front end Item 1 Tightening torque 60 Nm (44 ftlb.)
G15239228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper
Screw for pre-assembly of front bumper on front end Item 2 Tightening torque 8 Nm (6 ftlb.)

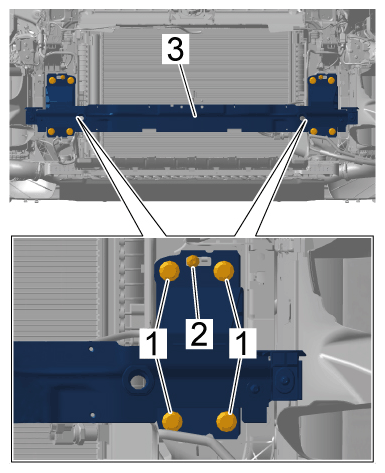

G15239229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front bumper
Screw securing adjusting element to front bumper Item 1 Tightening torque 8 Nm (6 ftlb.)
G15239230Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

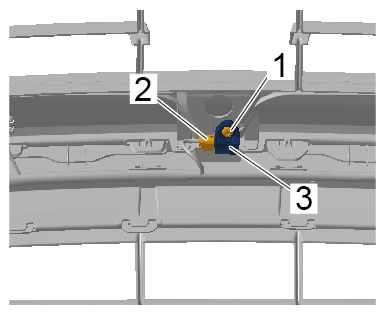

Pedestrian protection sensor to front apron Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15239231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

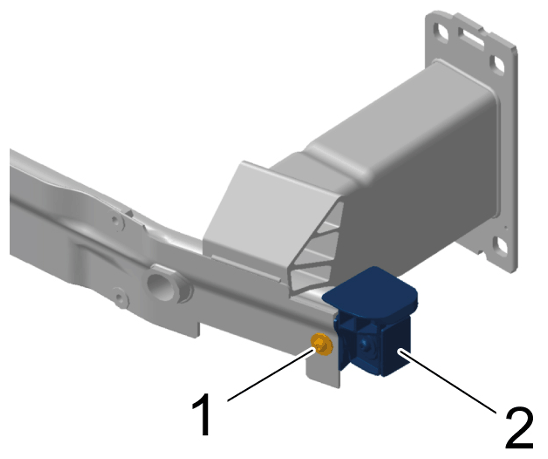

Pedestrian protection sensor
Screws securing rear bumper to retaining frame Item 1 Tightening torque 2, 5 Nm (1.5 ftlb.)

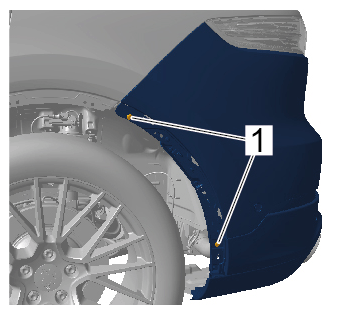

G15239232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear bumper to retaining frame
Screws securing heat shield to rear bumper Item 2 Tightening torque 3, 5 Nm (2.2 ftlb.)

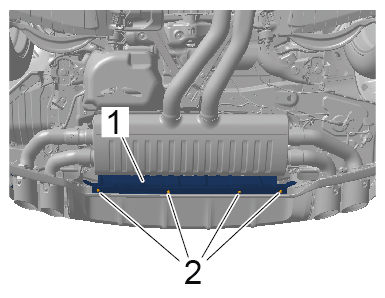

G15239233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing heat shield to rear bumper

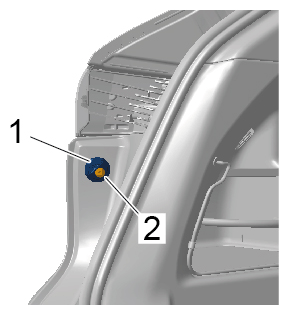

Screw securing anchor block tailgate to rear bumper Item 2 Tightening torque 10 Nm (7.4 ftlb.)
G15239234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing tailgate anchor block to rear bumper
Screw securing rear bumper to frame for light Item 1 Tightening torque 2, 5 Nm (1.5 ftlb.)

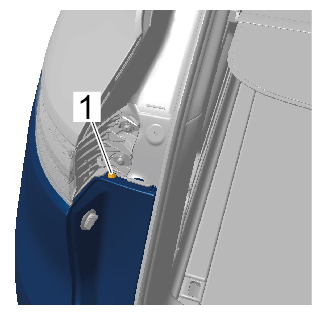

G15239235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing rear bumper to frame for light

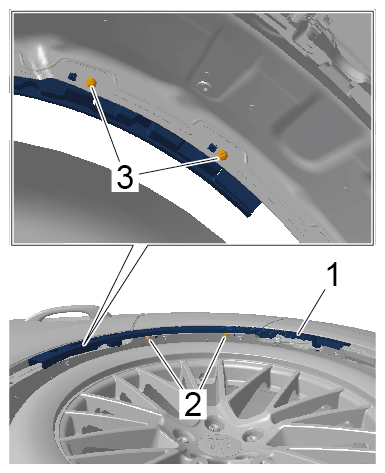

Screws on mounting for rear wheel cover Item 2, 3 Tightening torque 1.5 Nm (1.1 ftlb.)
G15239236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting for rear wheel cover
Screws securing rear trim element to rear bumper Item 1 Tightening torque 2, 3 Nm (1.5 ftlb.)
G15239237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

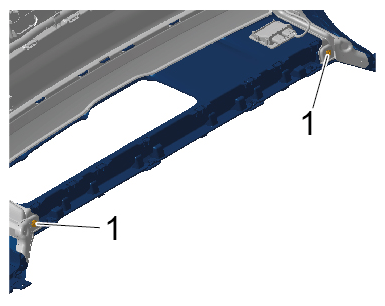

Screws securing rear trim element to rear bumper
Rear trim element on rear bumper Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)

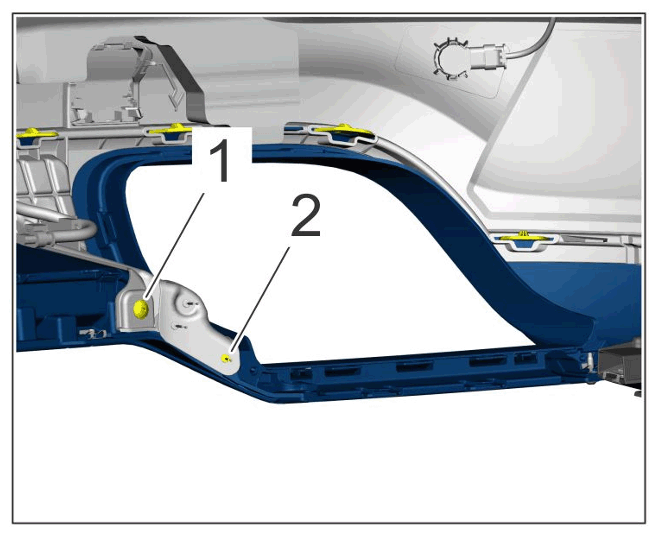

G15239238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear apron
Rear trim element (Sport Design package) on rear bumper Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)
G15239239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

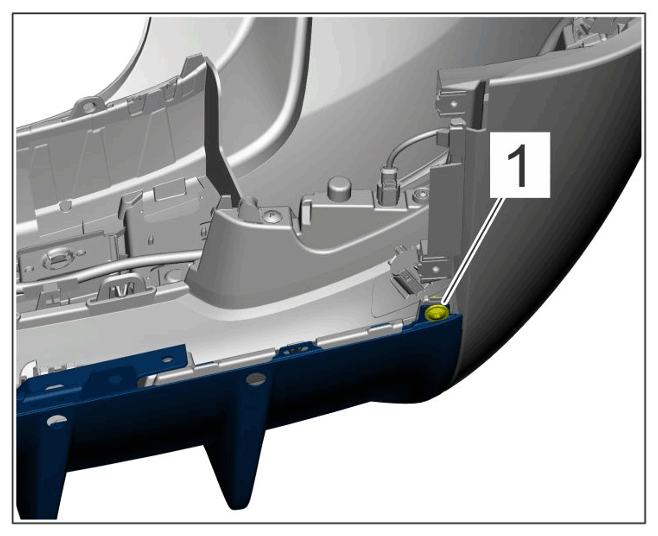

Screw for rear apron
Rear trim element (trim strip) to rear rear trim element Item 1 Tightening torque 3, 5 Nm (2.2 ftlb.)

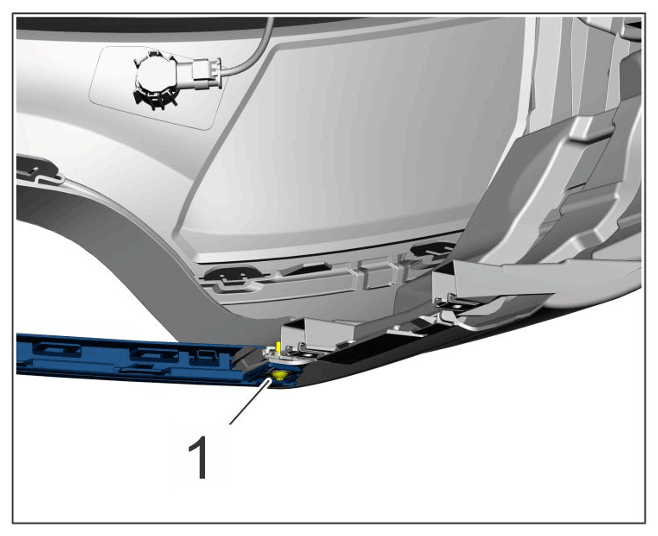

G15239240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim strip
Screw securing rear bumper to retaining frame   Tightening torque 2.5 Nm (1.8 ftlb.)
Screw securing rear bumper to rear retaining frame   Tightening torque 2.5 Nm (1.8 ftlb.)
Screws securing deflector plate to rear bumper   Tightening torque 3.5 Nm (2.6 ftlb.)
Screw securing rear lid anchor block to rear bumper   Tightening torque 10 Nm (7.4 ftlb.)
Screw securing rear bumper to light frame   Tightening torque 2.5 Nm (1.8 ftlb.)

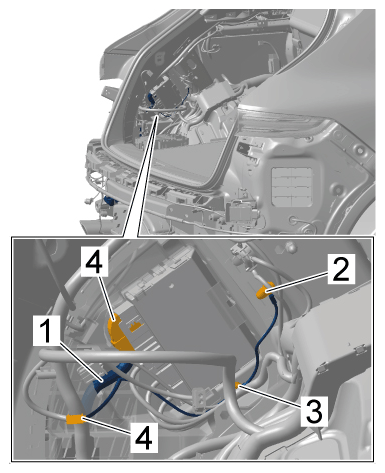

Nut securing earth line to earth support point Item 2 Tightening torque 9 Nm (6.6 ftlb.)

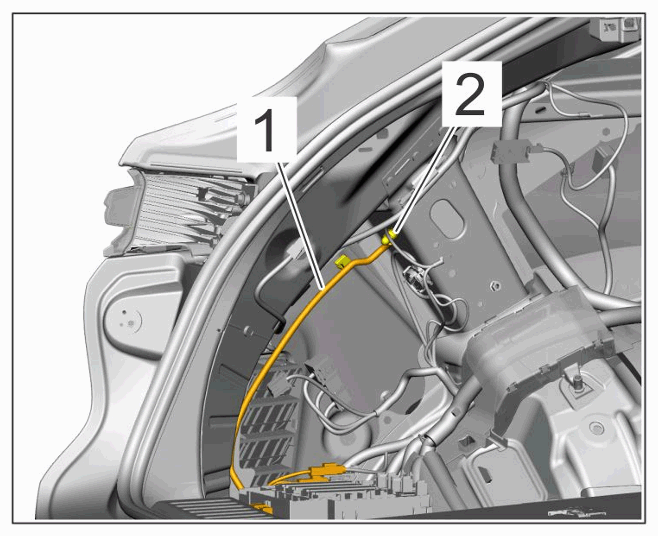

G15239241Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line

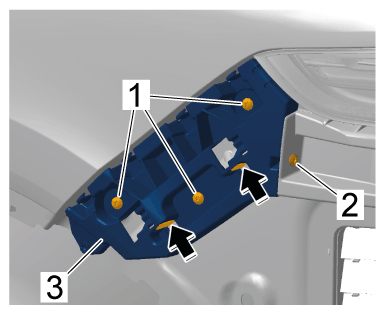

Screws for retaining strip, side Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Nuts for retaining strip on tail light Item 1 Tightening torque 4 Nm (3 ftlb.)
G15239243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip on tail light
Screw for retaining strip on tail light Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)

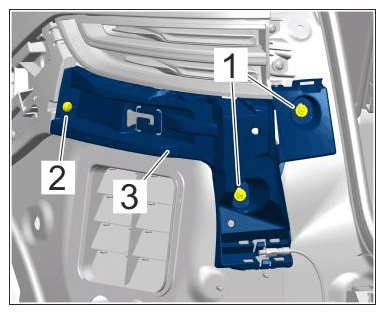

G15239244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip on tail light

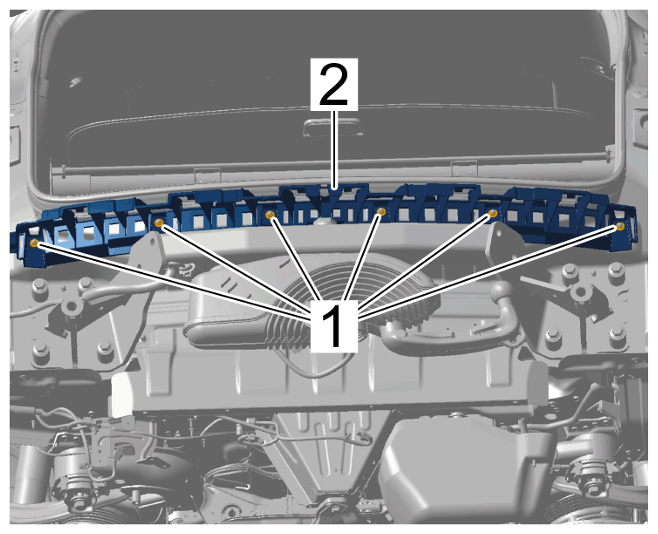

Nuts on retaining strip, center Item 1 Tightening torque 4 Nm (3 ftlb.)
G15239245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

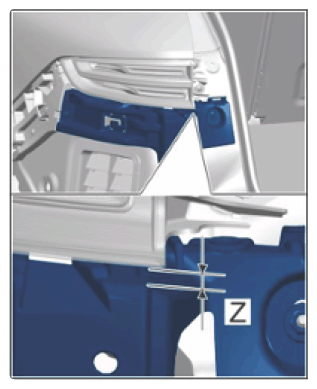

Retaining strip to tail light Item Z Gap dimension 8 mm

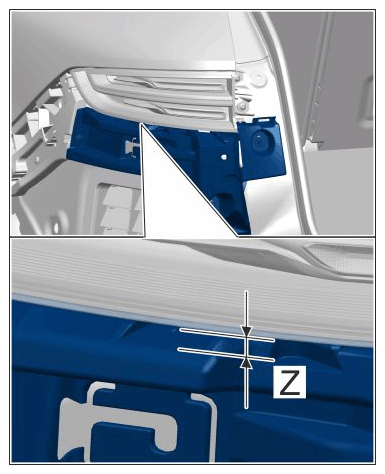

G15239246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap from retaining strip to tail light
G13956959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap from retaining strip to tail light
Retaining strip to tail light Item X Gap dimension 6 mm
G15239247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

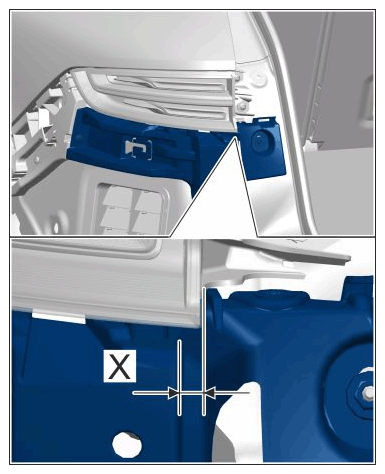

Gap from retaining strip to tail light
Screws on retaining strip   Tightening torque 3 Nm (2 ftlb.)
Screws on retaining strip for tail light   Tightening torque 4 Nm (3 ftlb.)
Screw on retaining strip for tail light (To side retaining strip) Tightening torque 2.5 Nm (1.75 ftlb.)
Nuts on center retaining strip   Tightening torque 4 Nm (3 ftlb.)
Retaining strip to tail light Outer Gap dimension 8 mm
Retaining strip to tail light Inner Gap dimension 6 mm
Retaining strip to tail light Side Gap dimension 6 mm

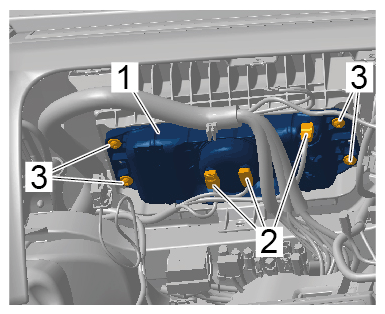

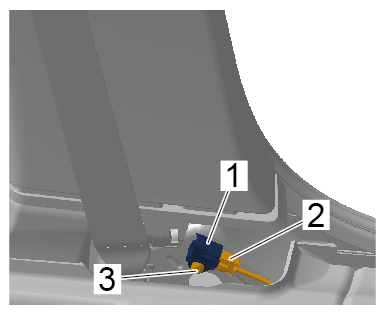

All airbag sensors Item 3 Tightening torque 8 Nm (6 ftlb.)
G15239248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Airbag sensors
Fastening screw securing seat position sensor to seat position Item 1 Tightening torque 1.1 Nm (0.6 ftlb.)
G15239249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

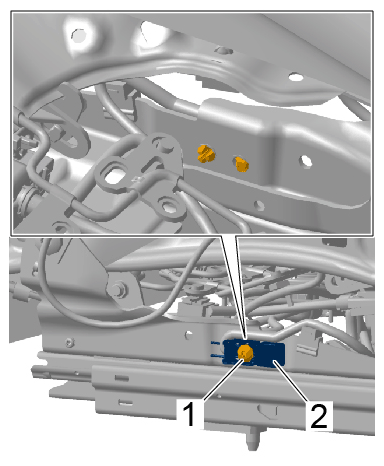

Fastening screw

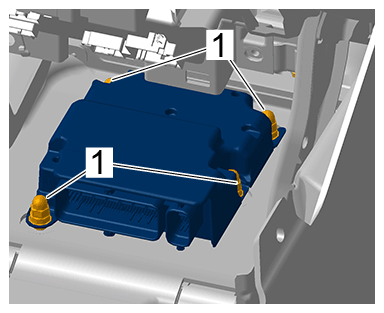

Nuts on airbag triggering unit Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15239250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Front side airbag to front seat Item 1 Tightening torque 8 Nm (6 ftlb.)

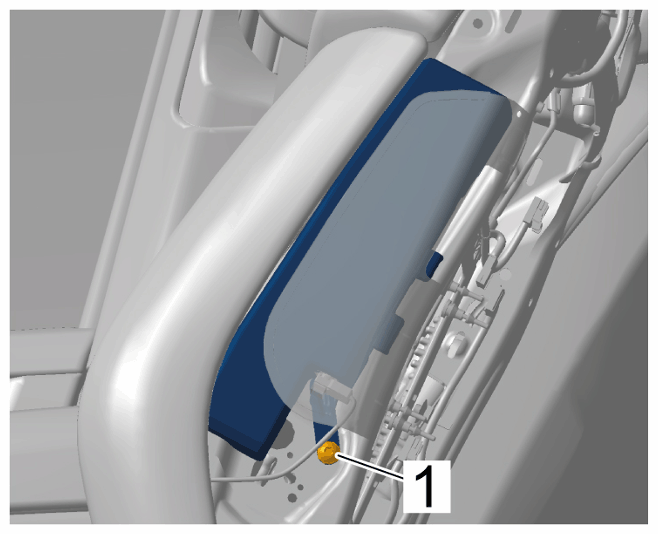

G15239251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for front side airbag
Rear side airbag to rear seat Item 1 Tightening torque 8 Nm (6 ftlb.)
G15239252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

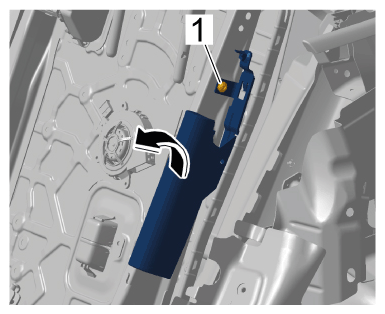

Rear side airbag

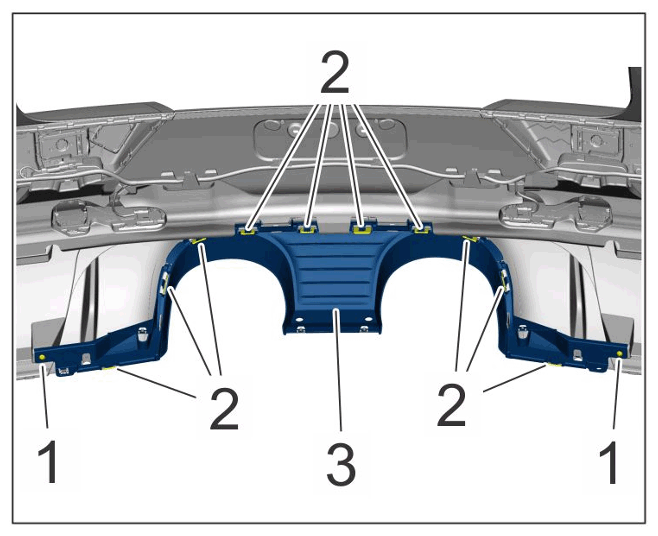

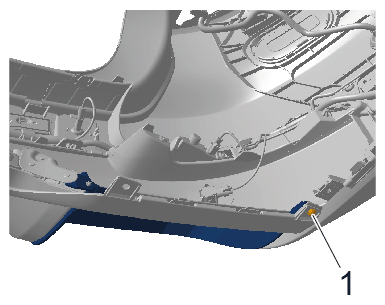

Trim frame for tailpipe cover on rear bumper Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15239253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Trim frame for tailpipe cover (Sport Design package) on rear bumper Item 1 Tightening torque 3.5 Nm (2.6 ftlb.)
G15239254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim frame for tailpipe cover

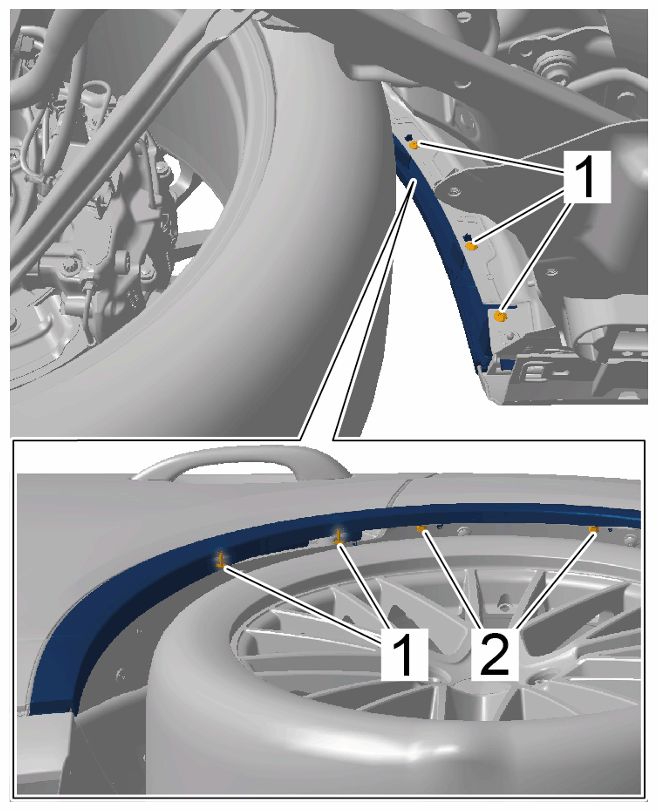

Screw for rear wheel cover Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15239255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear wheel cover
Nut for rear wheel cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15239256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear wheel cover

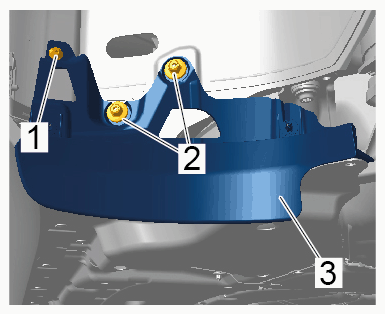

Nut securing lower part of wheel housing liner to wheel cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15239257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for wheel cover
Screw securing lower part of wheel housing liner to rear wheel cover Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15239258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for wheel cover

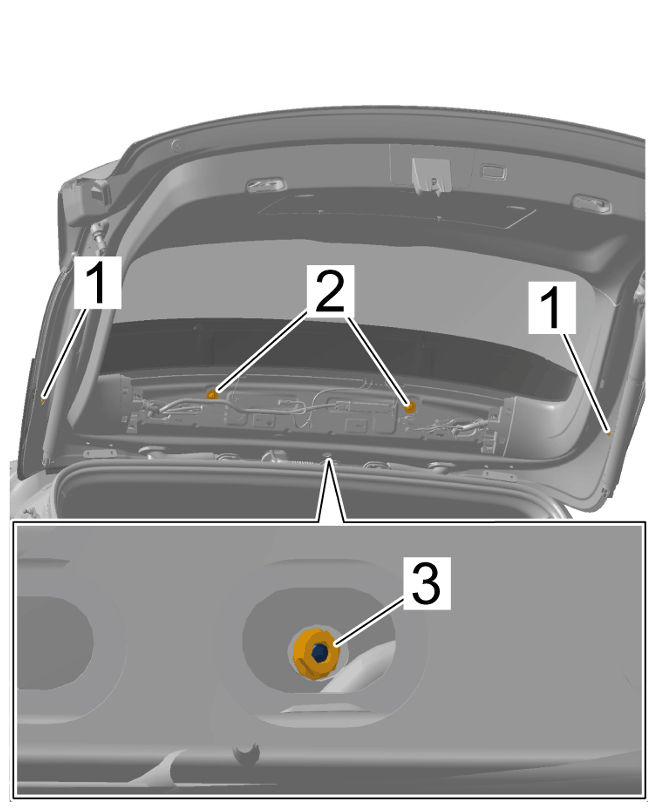

Nut securing rear spoiler to rear lid Item 3 Tightening torque 6 Nm (4.5 ftlb.)
G15239259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear spoiler
Screws securing rear spoiler to rear lid Item 1, 2 Tightening torque 6 Nm (4.5 ftlb.)
G15239260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear spoiler
Screws for rear spoiler blade (Turbo) Item 1 Tightening torque 8 Nm (6 ftlb.)

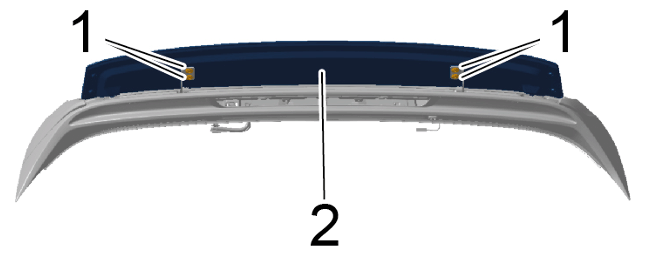

G15239261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear spoiler blade

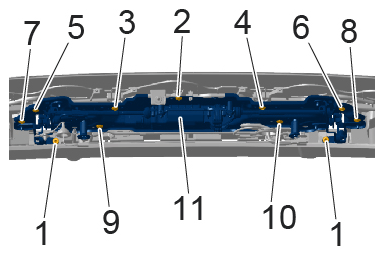

Screws for spoiler drive unit (Turbo) Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15239262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive unit
Screws for spoiler drive unit (Turbo) Item 2 to 10 Tightening torque 8 Nm (6 ftlb.)
G15239263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive unit
Screws on trim panels   Tightening torque 8 Nm (6 ftlb.)
Screws on rear spoiler   Tightening torque 8 Nm (6 ftlb.)
Nuts on rear spoiler   Tightening torque 8 Nm (6 ftlb.)
Screws securing rear spoiler to drive unit Top Tightening torque 4 Nm (3 ftlb.)
Screws securing rear spoiler to drive unit Bottom Tightening torque 8 Nm (6 ftlb.)
Screws on roof spoiler   Tightening torque 2.8 Nm (1.8 ftlb.)
Nuts on roof spoiler   Tightening torque 6 Nm (4.5 ftlb.)
Screws on spoiler fins   Tightening torque 2.8 Nm (1.8 ftlb.)

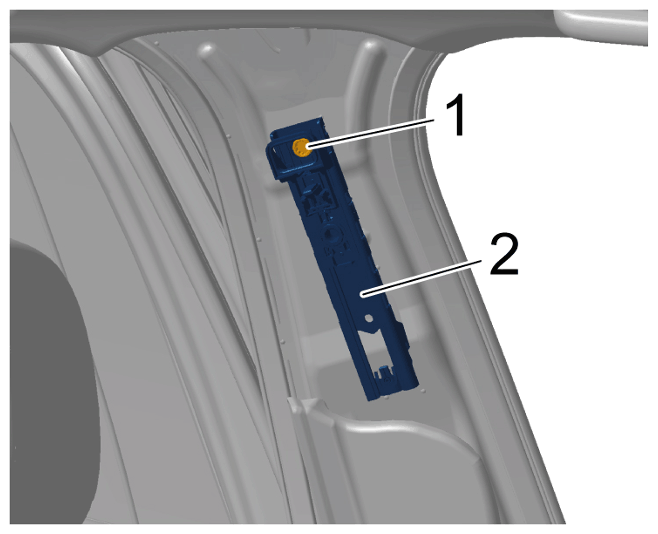

Screw for adjustment fitting Item 1 Tightening torque 20 Nm (15 ftlb.)
G15239264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for adjustment fitting

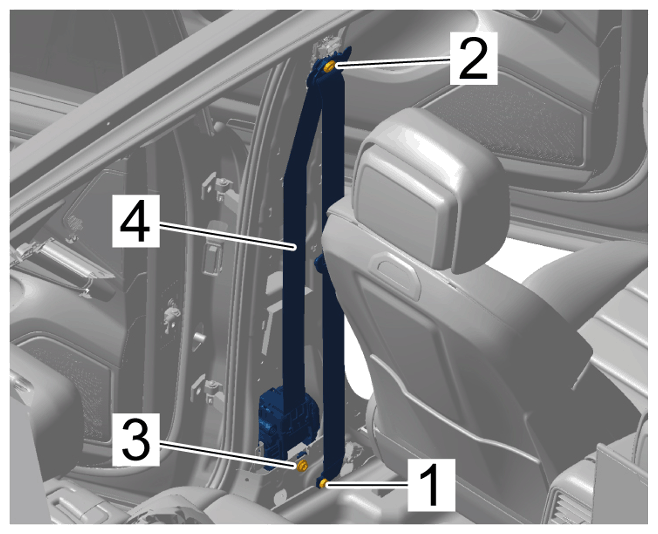

Screw for belt retractor Item 3 Tightening torque 40 Nm (30 ftlb.)
G15239265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for belt deflector Item 2 Tightening torque 40 Nm (30 ftlb.)
G15239266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw securing front three-point belt to bodyshell Item 1 Tightening torque 40 Nm (30 ftlb.)

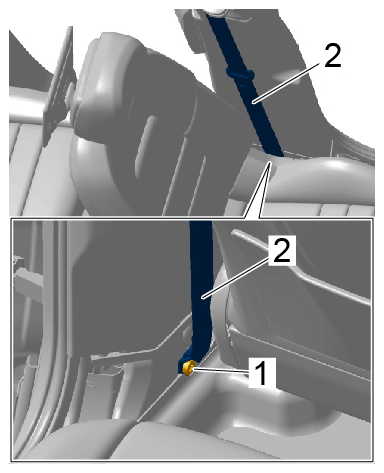

G15239267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting

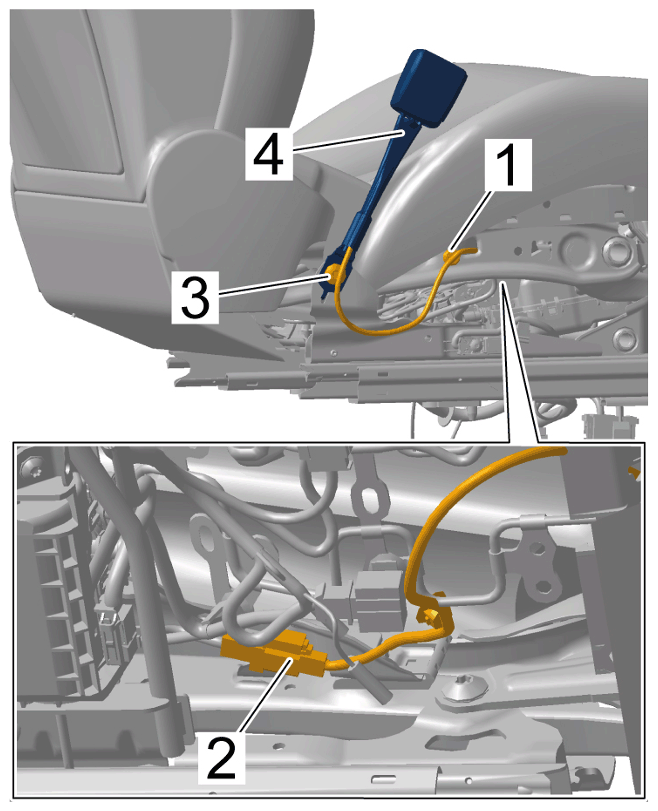

Screw securing front seat-belt buckle to front seat Item 3 Tightening torque 40 Nm (30 ftlb.)
G15239268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat-belt buckle

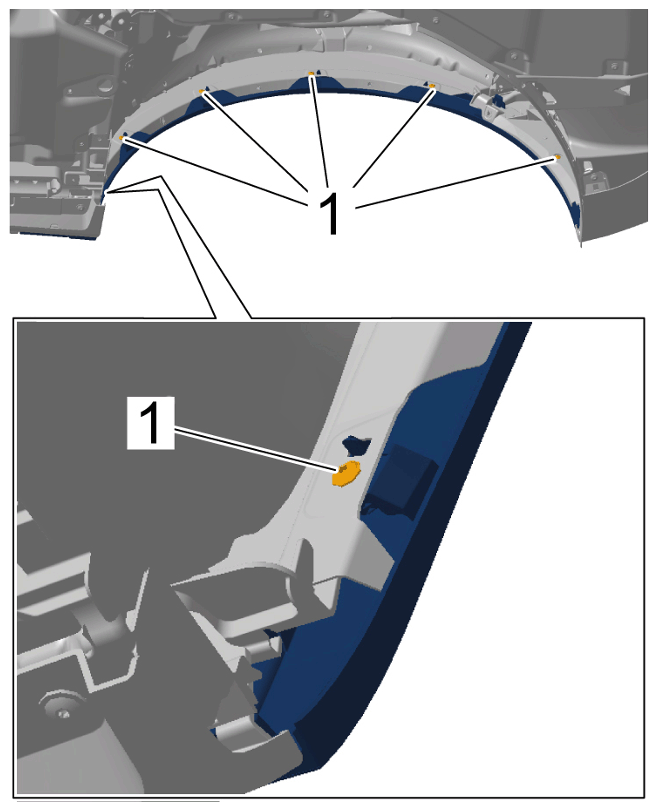

Front wheel cover to wing Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15239269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel cover

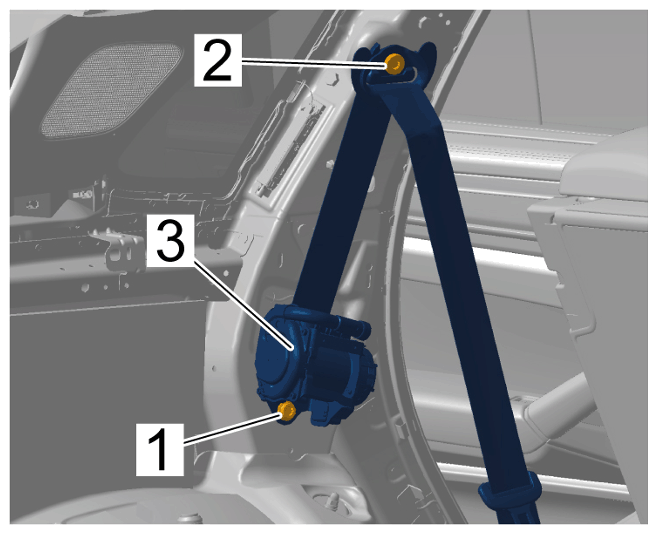

Screw for belt retractor Item 1 Tightening torque 40 Nm (30 ftlb.)
G15239270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for deflection roller
Screw for deflection roller Item 2 Tightening torque 40 Nm (30 ftlb.)
G15239271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for deflection roller

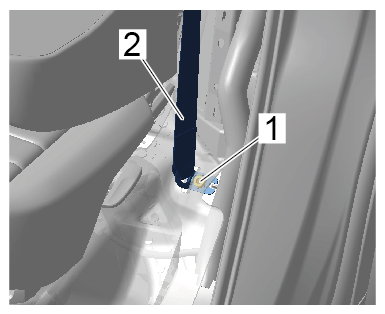

Screw for rear three-point belt Item 1 Tightening torque 40 Nm (30 ftlb.)
G15239272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting
Rear seat-belt buckle to rear seat frame Item 1 Tightening torque 40 Nm (30 ftlb.)

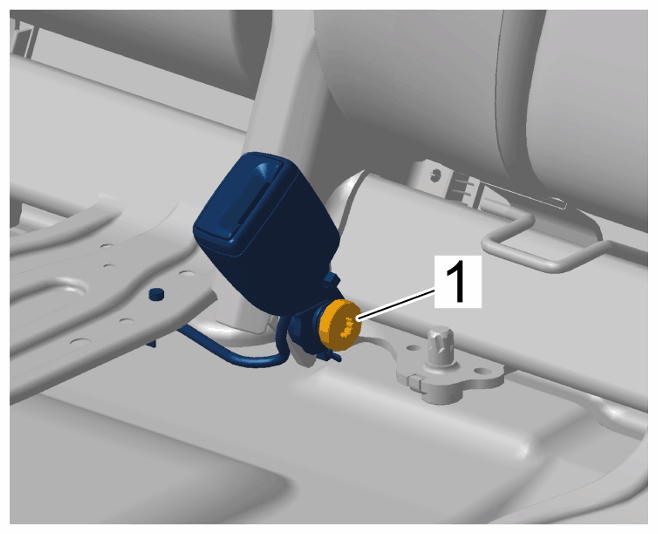

G15239273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

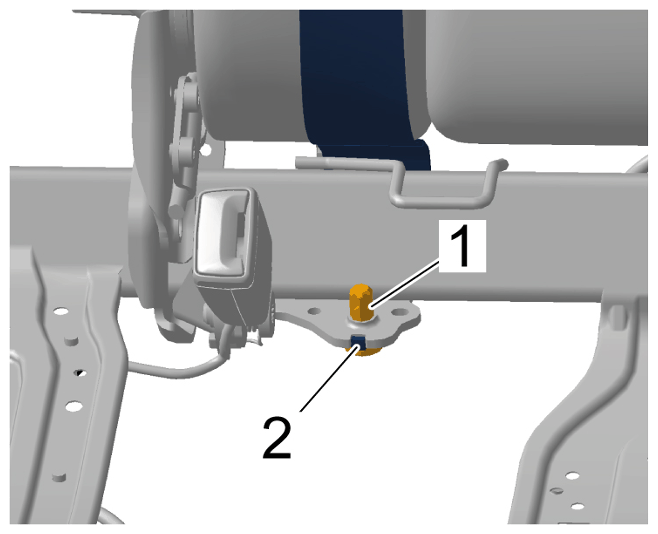

Screw securing seat belt mount for seat belt on middle seat to seat frame Item 1 Tightening torque 40 Nm (30 ftlb.)
G15239274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting

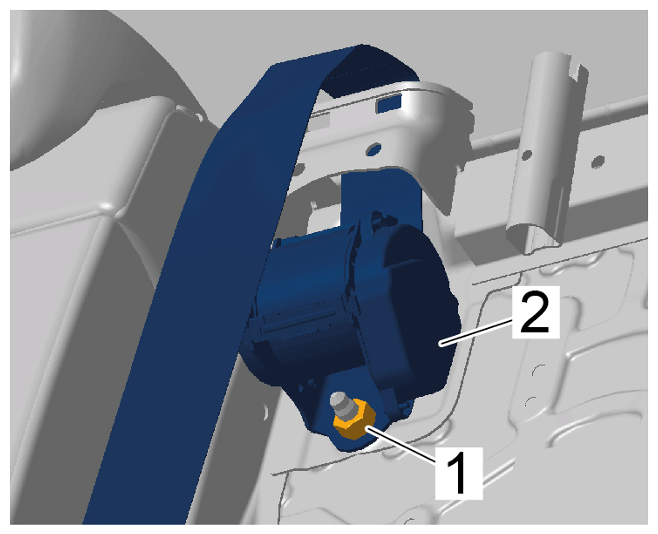

Nut on belt retractor for seat belt on middle seat to seat frame   Tightening torque 40 Nm (30 ftlb.)
G15239275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on belt retractor for rear three-point belt on middle seat

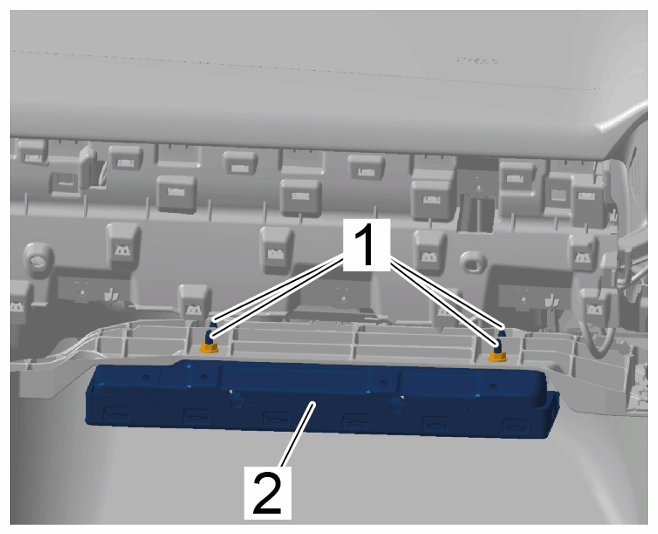

Screws securing glove box to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

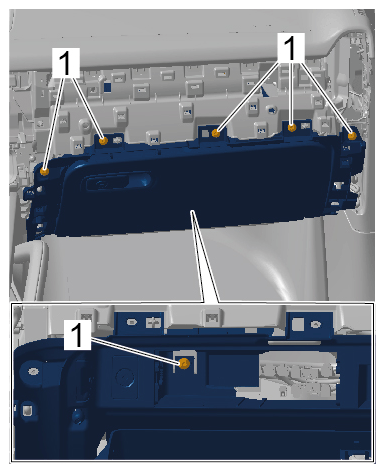

Screws for glove box

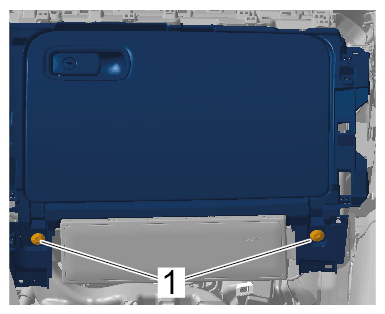

G15239277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for glove box
Nuts securing rear center console to bracket Item 1 Tightening torque 20 Nm (15 ftlb.)
Screw securing front center console to instrument panel Item 1 Tightening torque 4 Nm (3 ftlb.)

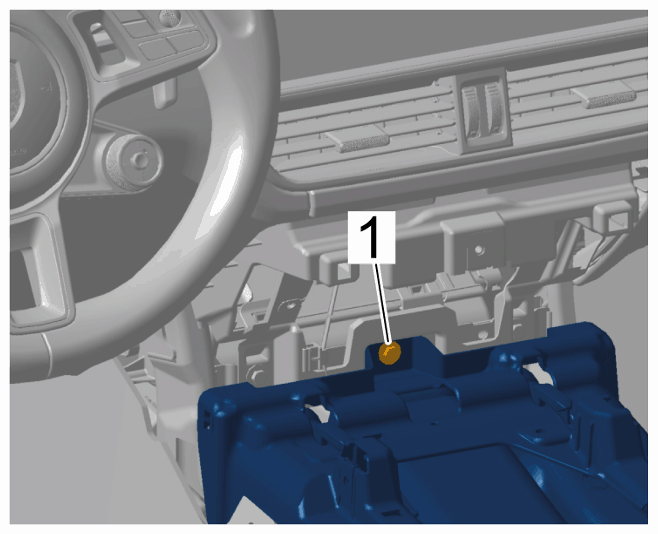

G15239278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

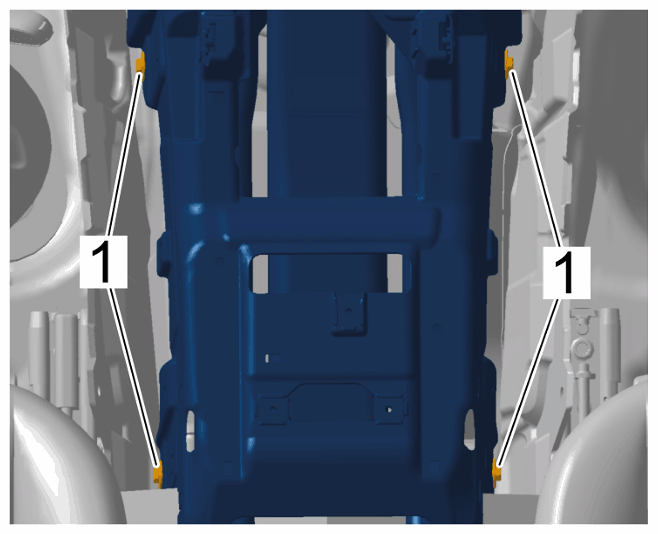

Screws securing center console to bracket Item 1 Tightening torque 8 Nm (6 ftlb.)
G15239279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

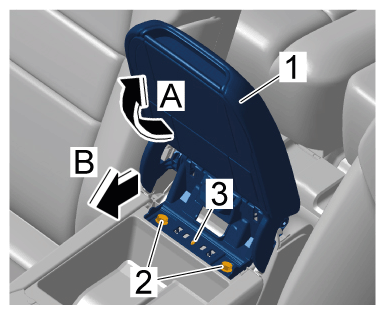

Screws for center armrest cover Item 2 Tightening torque 20 Nm (15 ftlb.)
G15239280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover on tray

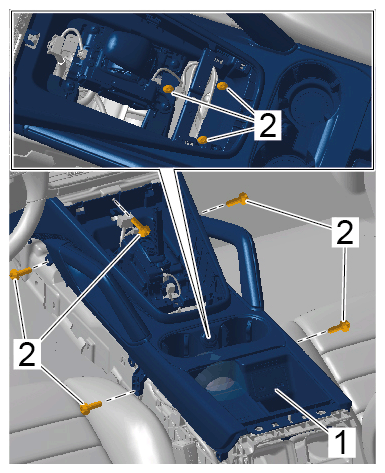

Screws securing upper part of center console to center console Item 2 Tightening torque 8 Nm (6 ftlb.)
G15239281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for upper part of center console
Screws securing grab handle to upper part of center console Item 1 Tightening torque 8 Nm (6 ftlb.)

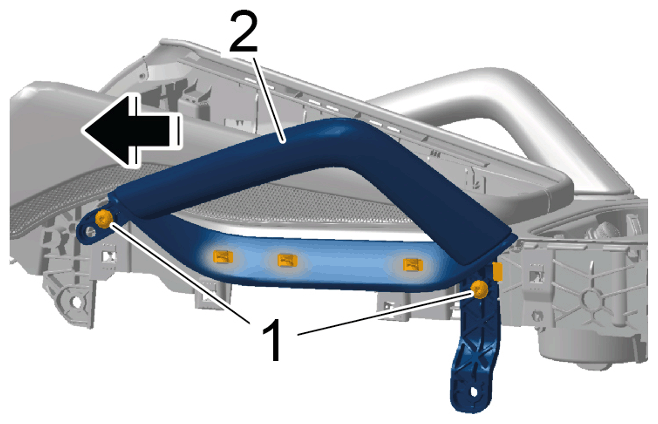

G15239282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grab handles

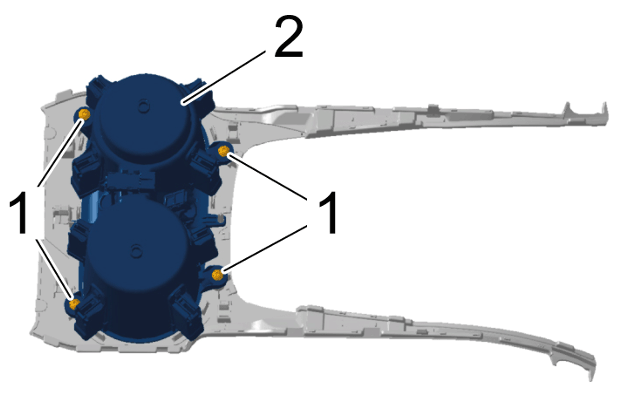

Screws for cupholder Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15239283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

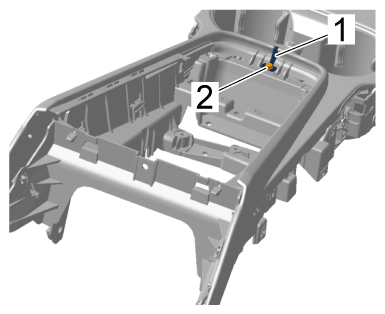

Screw securing trim element to center console Item 2 Tightening torque 1.5 Nm (1 ftlb.)
G15239284Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim element

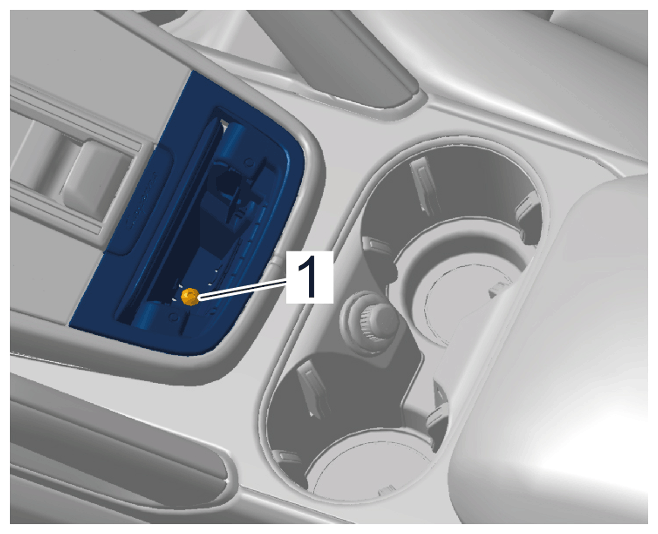

Screw securing ashtray to upper part of center console Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15239285Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Head airbag Item 1 Tightening torque 8 Nm (6 ftlb.)

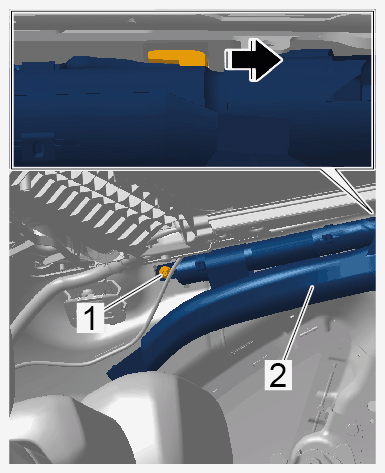

G15239286Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for head airbag

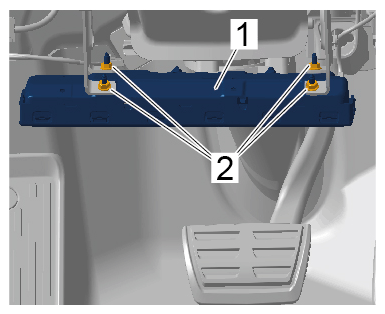

Fastening nuts for knee airbag on driver side Item 2 Tightening torque 8 Nm (6 ftlb.)
G15239287Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on knee airbag
Passenger's airbag unit to instrument panel Item 3 Tightening torque 8 Nm (6 ftlb.)
G15239288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Passenger's airbag unit
Fastening nuts for knee airbag on passenger side Item 1 Tightening torque 8 Nm (6 ftlb.)
G15239289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
Fastening screws securing support for knee airbag on passenger's side to dashboard bracket Item 2 Tightening torque 5 Nm (3.5 ftlb.)

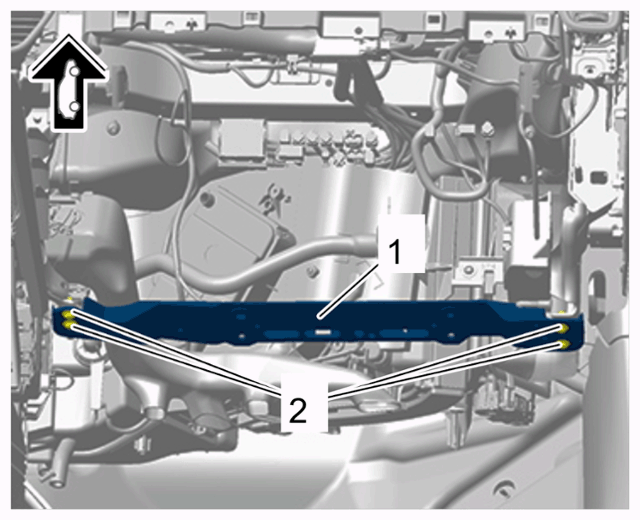

G15239290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support for knee airbag on passenger's side
Screw for head airbag Replace screw following removal Tightening torque 8 Nm (6 ftlb.)
Screws for deformation element   Tightening torque 5.6 Nm (4.1 ftlb.)
Nut securing ignition module for front lid (pedestrian protection) to front lid hinge Item 1 Tightening torque 6.5 Nm (4.75 ftlb.)

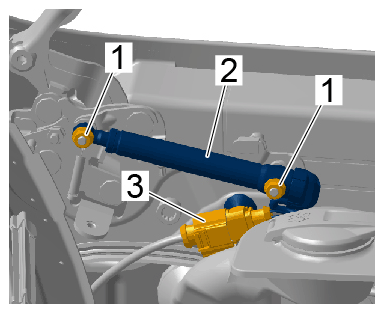

G15239291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition module for front lid (pedestrian protection)

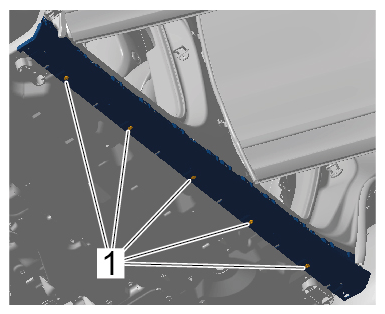

Sill cover to underbody Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on underbody

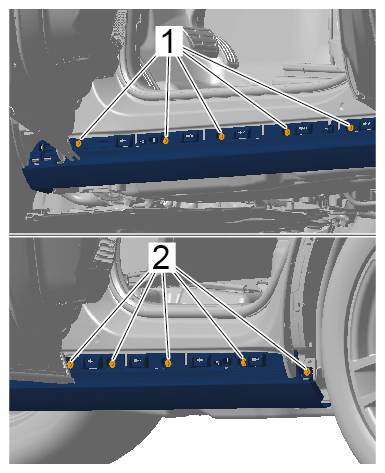

Sill cover to bodyshell Items 1 and 2 Tightening torque 6 Nm (4.5 ftlb.)
G15239293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

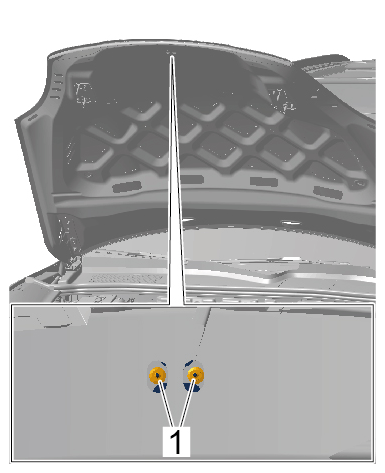

Logo on front lid Item 1 Tightening torque 1.3 Nm (0.8 ftlb.)
G15239294Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

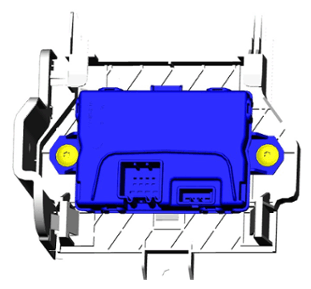

Screws for control unit for rear spoiler to holder for rear spoiler control unit   tightening torque 2 Nm (1.5 ftlb.)
G15239295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for rear spoiler

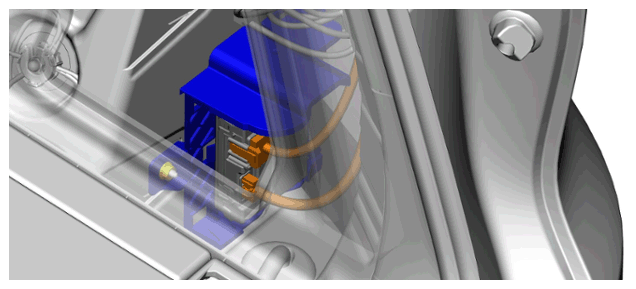

Nut used to support control unit for rear spoiler on body   torque 3.2 Nm (2.5 ftlb.)
G15239296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on holder for rear spoiler control unit

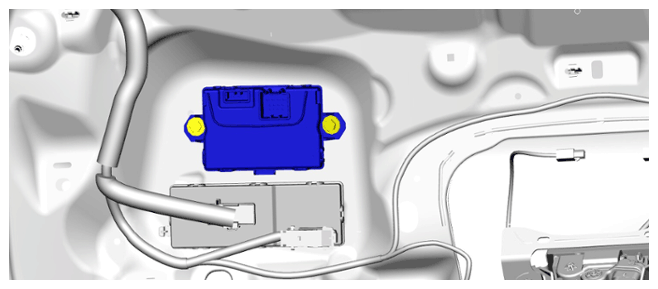

Screws securing rear spoiler control unit to rear lid   Tightening torque 3.7 Nm (2.7 ftlb.)
G15239297Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing rear spoiler control unit

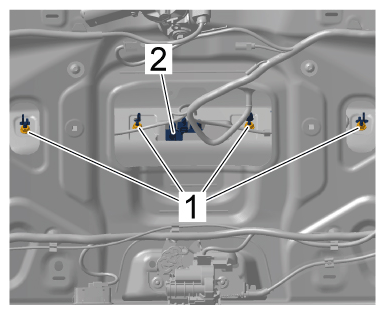

Nuts for handle strip Item 1 Tightening torque 6 Nm (4.5 ftlb.)
G15239298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
Nuts for handle strip Item 1 Tightening torque 6 Nm (4.5 ftlb.)

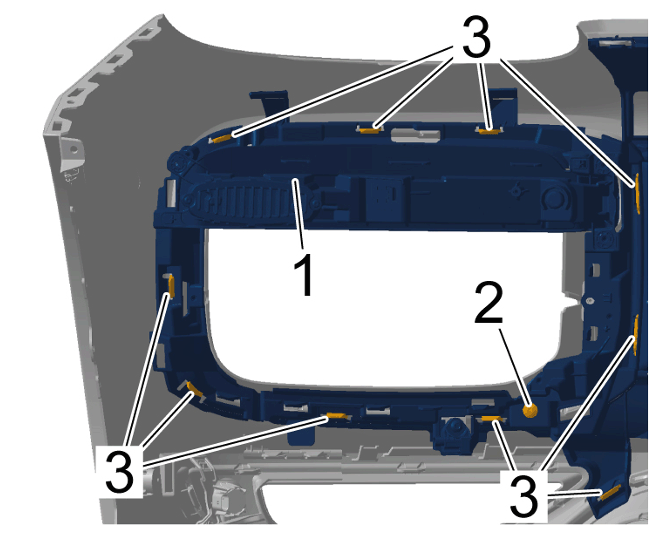

Screw securing radiator grille to front apron Item 2 Tightening torque 2 Nm (1.5 ftlb.)
G15239299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

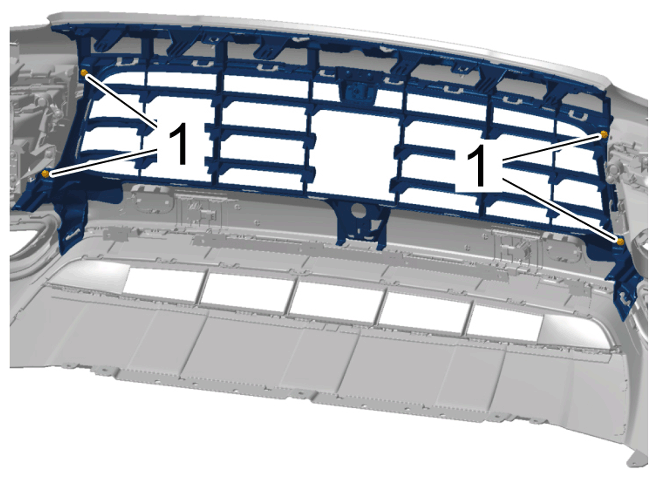

Screw securing radiator grille to front apron Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15239300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

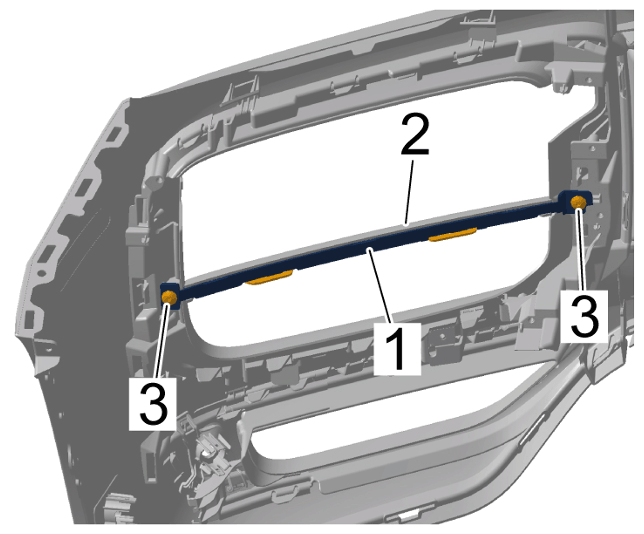

Screws securing vanes to front apron Item 3 Tightening torque 2 Nm (1.5 ftlb.)
G15239301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side vane
Nut on ground point for wire harness for trailer hitch Item 2 Tightening torque 9 Nm (6.5 ftlb.)
G15239302Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness in side panel

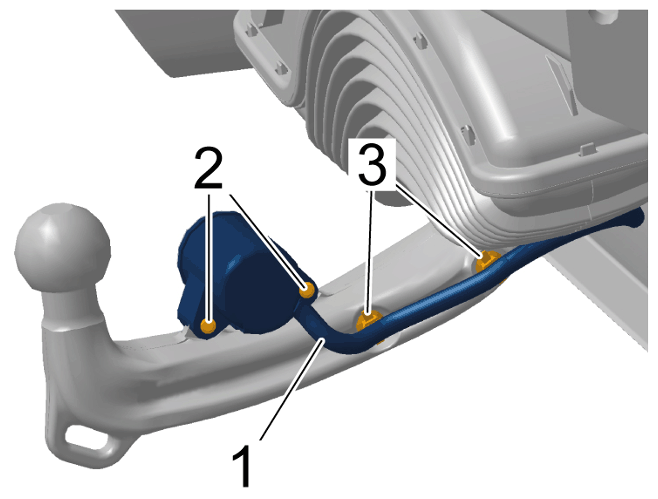

Plug socket for trailer hitch to trailer hitch Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15239303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

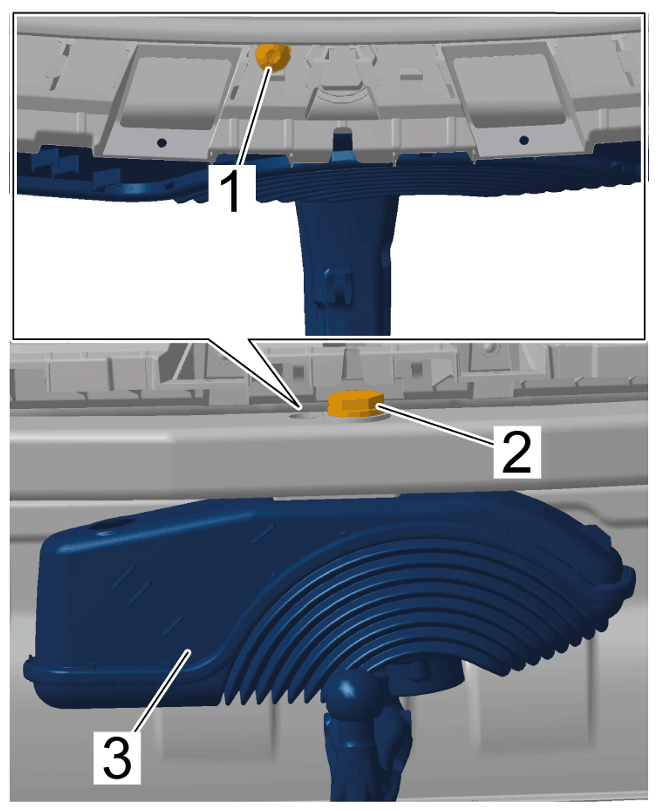

Trailer hitch motor to trailer hitch Item 2 Tightening torque 55 Nm (41 ftlb.)
G15239304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Trailer hitch motor to trailer hitch Item 1 Tightening torque 55 Nm (41 ftlb.)
G15239305Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screws securing trailer hitch to body Item 1 Tightening torque 110 Nm (81.5 ftlb.)

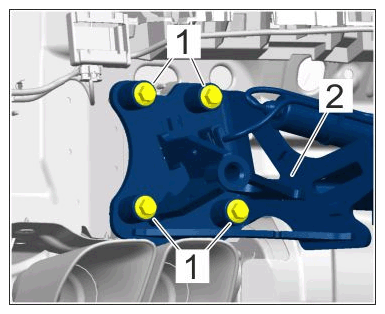

G15239306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for trailer hitch

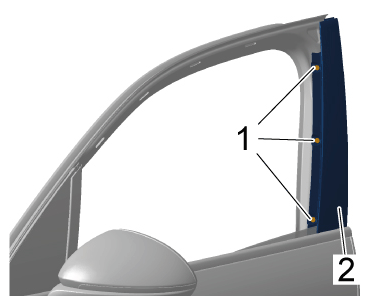

Screws securing cover for front door (B-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15239307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on cover for front door (B-pillar)

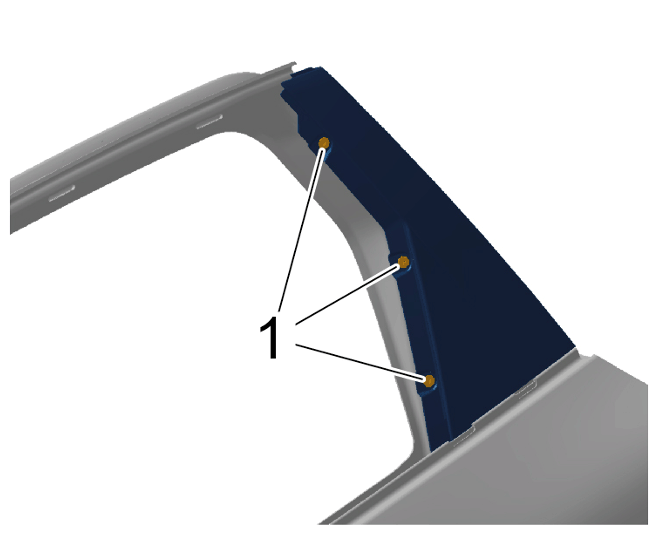

Screws securing cover (C-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15239308Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

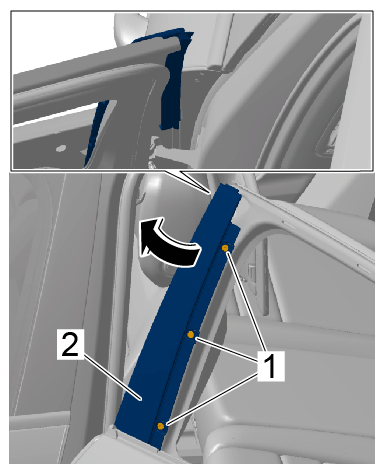

Screws securing cover (B-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)
G15239309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws for sunroof motor Item 2 Tightening torque 3 Nm (2 ftlb.)
G15239310Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

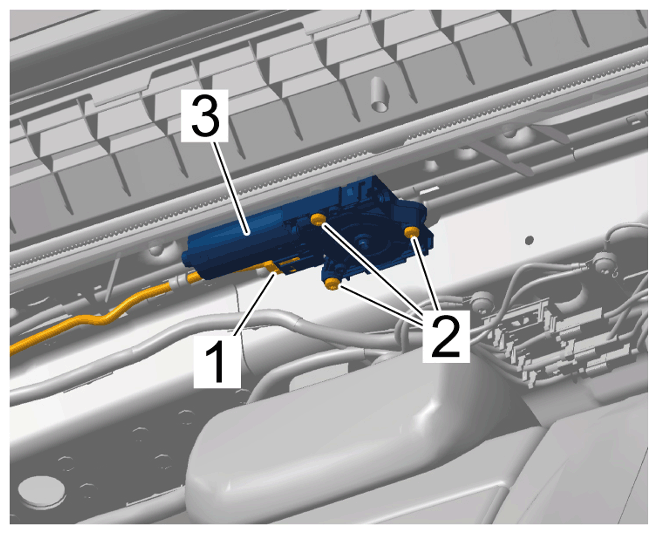

Screws securing sun protection motor to holder Item 2 Tightening torque 3 Nm (2 ftlb.)
G15239311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing sun protection motor to holder
Screws securing cross member to guide rail Item 1 Tightening torque 3 Nm (2 ftlb.)

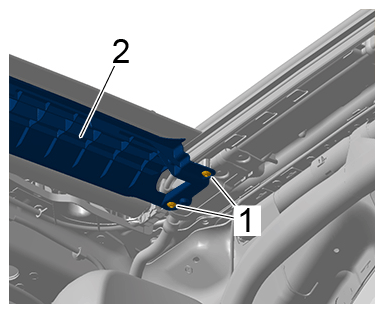

G15239312Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing cross member to guide rail

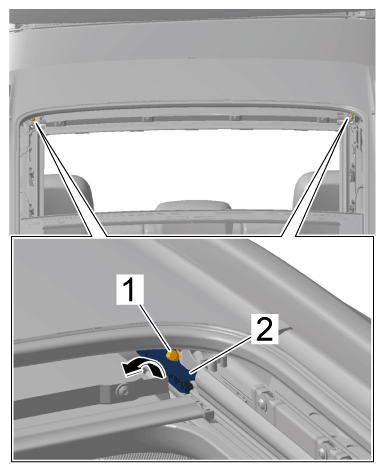

Screw securing guide shoe to guide rail Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide for sun blind rail
Screws for sun blind   Tightening torque 3 Nm (2 ftlb.)
Screws for sun blind motor   Tightening torque 6 Nm (4.5 ftlb.)
Screws on frame for roof sun blind   Tightening torque 6 Nm (4.5 ftlb.)
Screws on SDARS antenna holder   Tightening torque 6 Nm (4.5 ftlb.)
Front corner outer window pane Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)

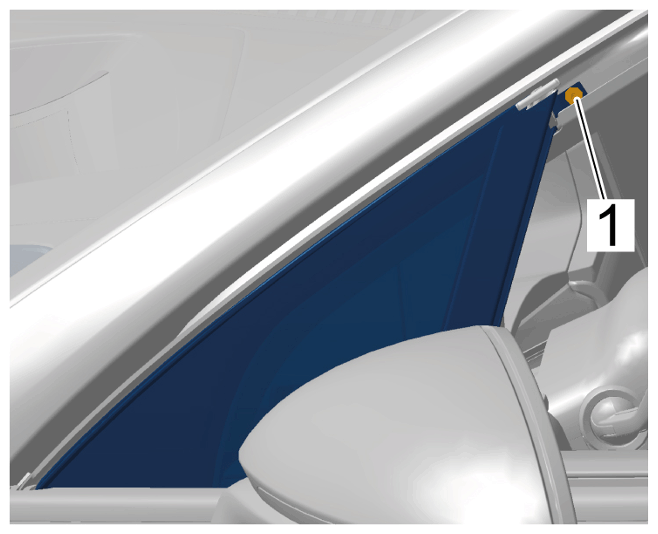

G15239314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer screw

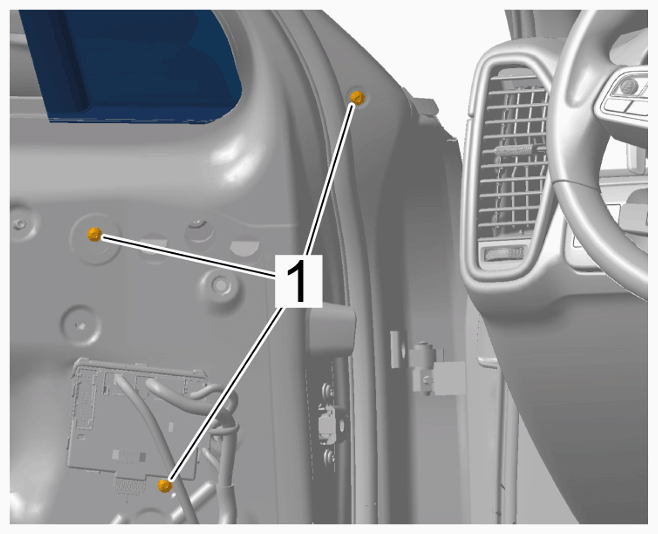

Front corner inner window pane Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15239315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner screws

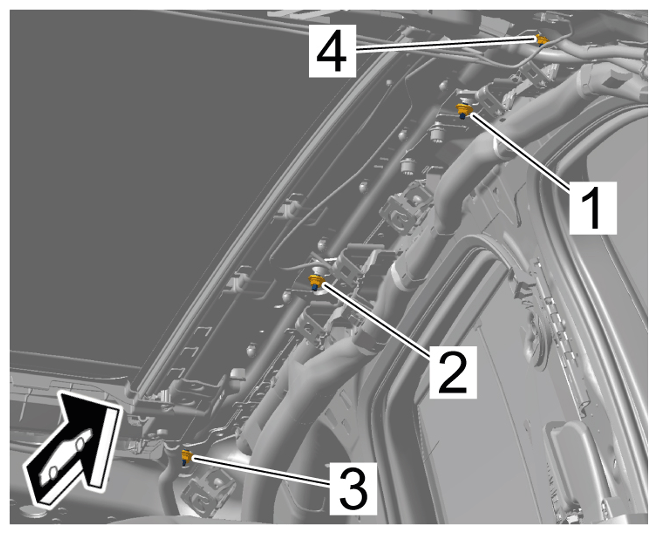

Nuts for roof rails Items 1, 2, 3, 4 Tightening torque 10 Nm (7.5 ftlb.)
G15239316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

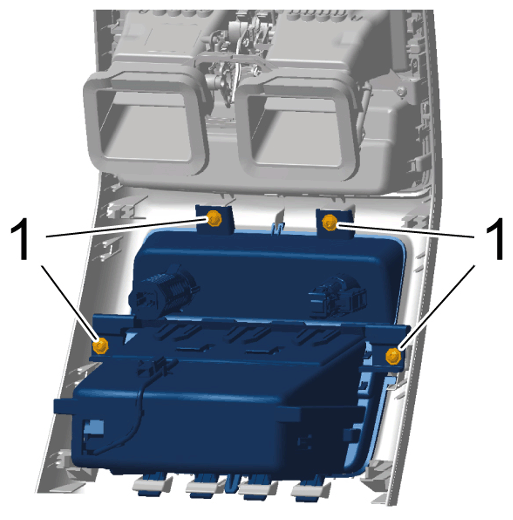

Screws for rear ashtray Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15239317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

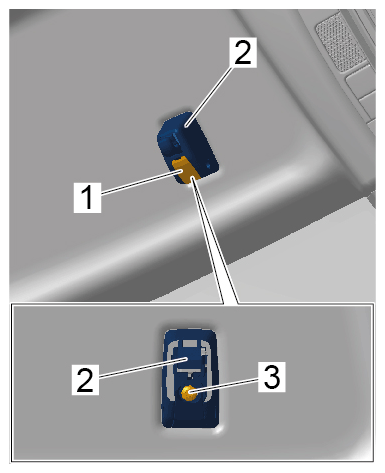

Fastening screw for sun visor bracket Item 3 Tightening torque 1.4 Nm (1 ftlb.)
G15239318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor bracket

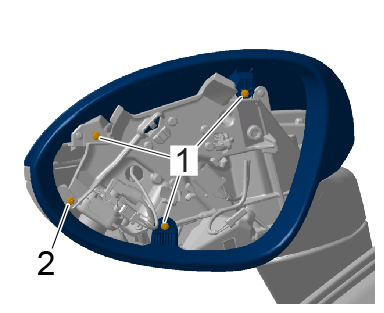

Screws on rear-view mirror housing (upper part) Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15239319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screw for rear-view mirror housing (upper part) Item 2 Tightening torque 0.9 Nm (0.7 ftlb.)
G15239320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

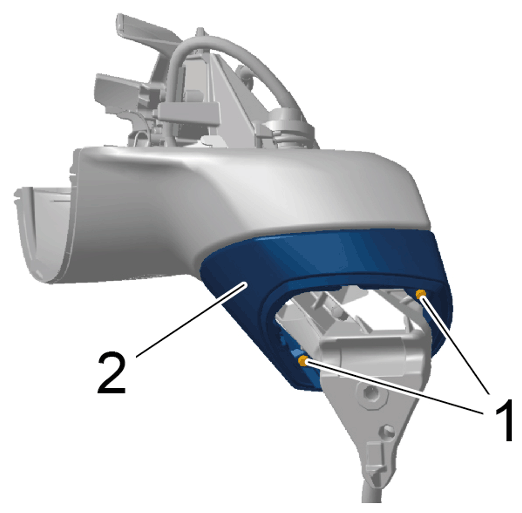

Screws on trim panel for mirror base Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15239321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on trim panel for mirror base

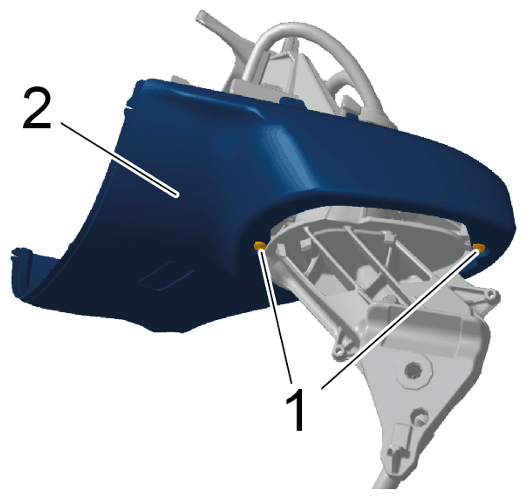

Screws for rear-view mirror housing (lower part) Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15239322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear-view mirror housing (lower part)

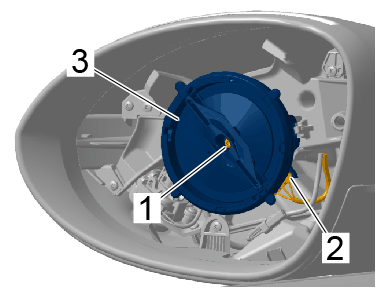

Screw for mirror adjusting motor Item 1 Tightening torque 1.4 Nm (1 ftlb.)
G15239323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for mirror adjusting motor

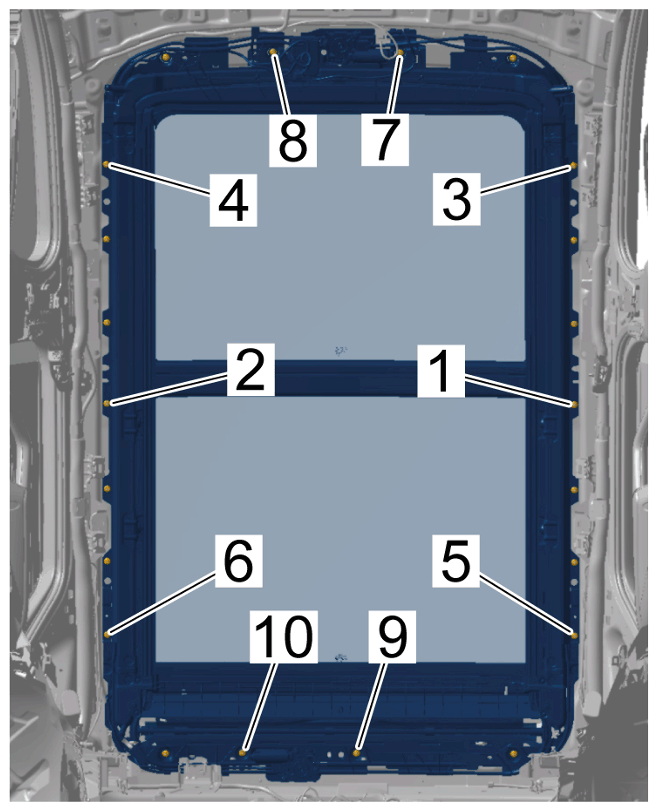

Nuts on roof assembly Item 1-10 Tightening torque 8 Nm (6 ftlb.)
G15239324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

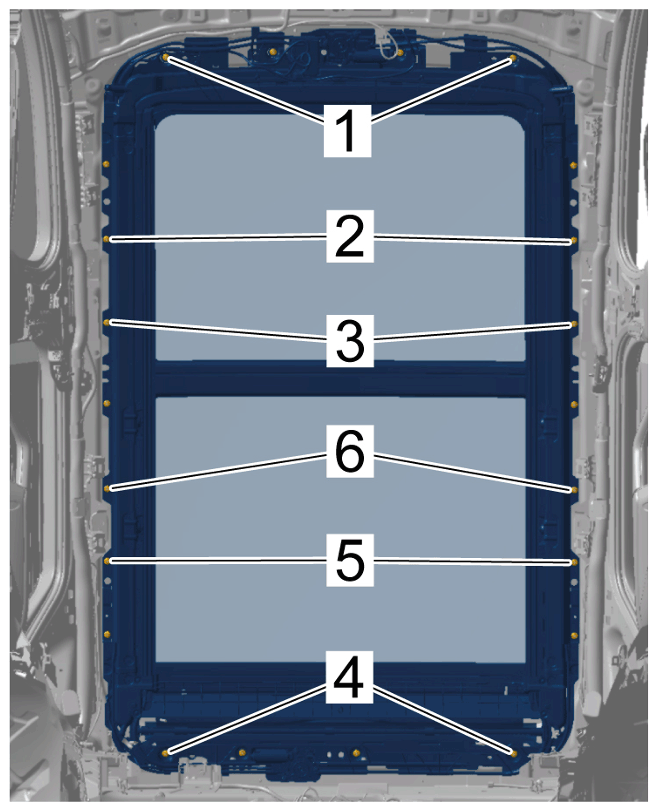

Nuts on roof assembly Item 1-6 Tightening torque 8 Nm (6 ftlb.)
G15239325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

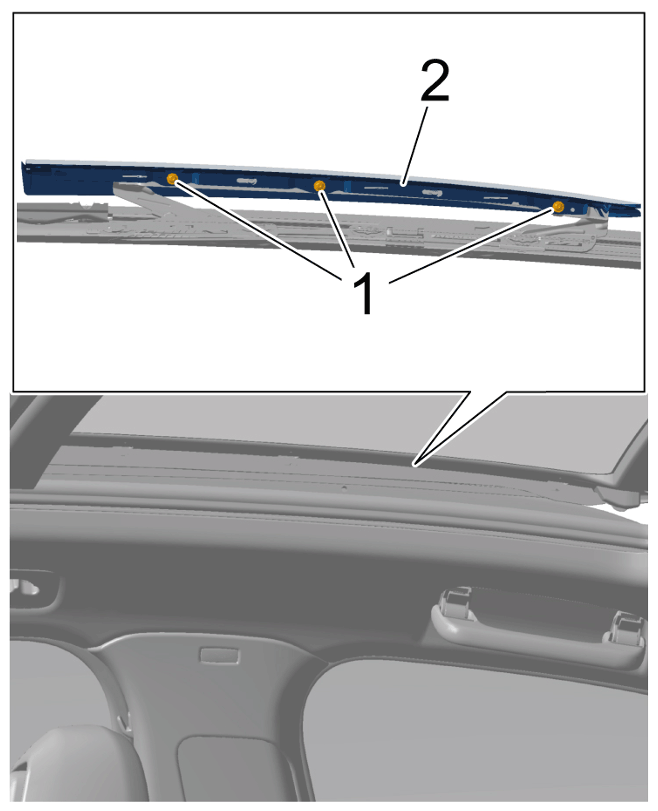

Screws for sliding-roof panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sliding-roof panel

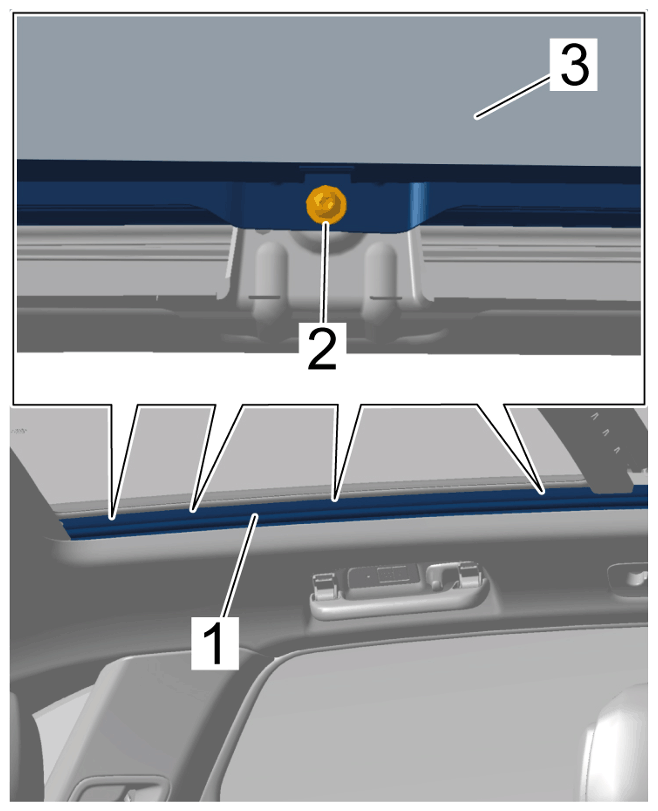

Screws for rear panoramic roof glass panel Item 2 Tightening torque 3 Nm (2 ftlb.)
G15239327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear panoramic roof glass panel

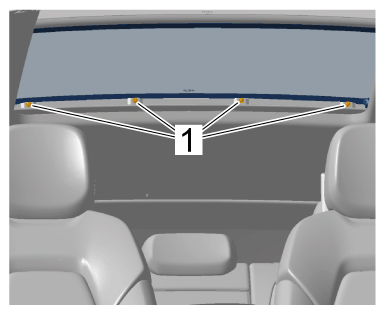

Screws securing panoramic roof glass panel to rear roof assembly Item 1 Tightening torque 3 Nm (2 ftlb.)
G15239328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws
scientia non olet · About LEMON Manuals
