Occupant Protection (Coupe)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

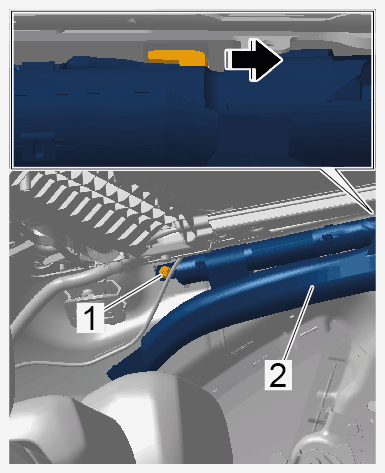

Fig 1: Head Airbag Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for head airbag

1	> Tightening torque 8 Nm (6 ftlb.)
2	Head airbag

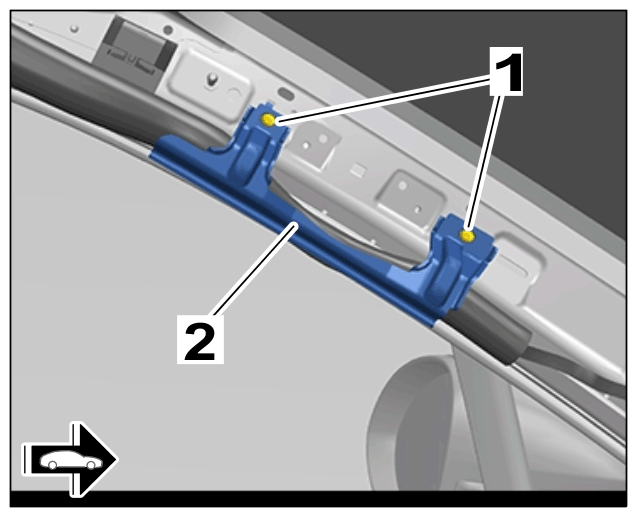

Fig 2: Deformation Element Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deformation element

1	> Tightening torque 5.6 Nm (4.1 ftlb.)
2	Deformation element
