Front Three-Point Belt

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

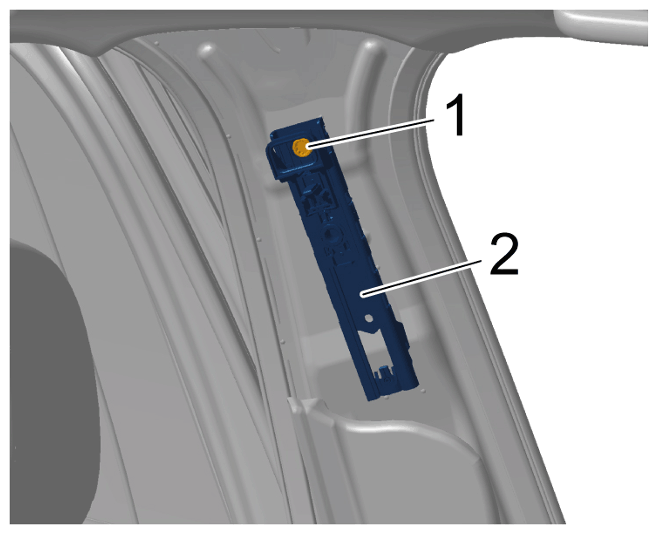

Screw for adjustment fitting	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for adjustment fitting

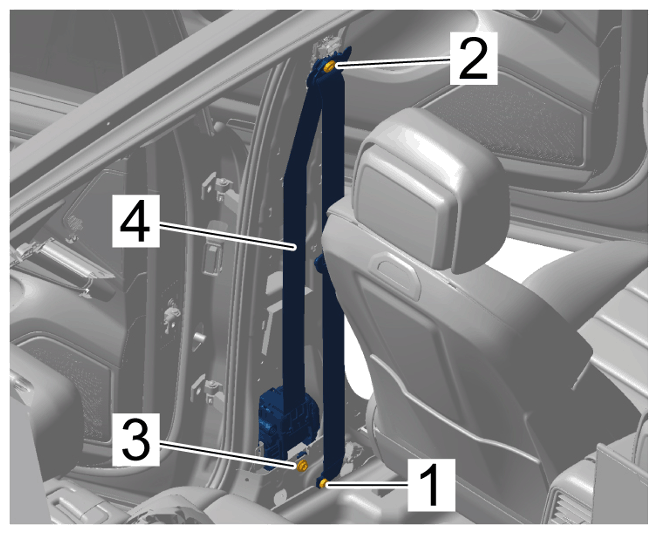

Screw for belt retractor	Item 3	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw for belt deflector	Item 2	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

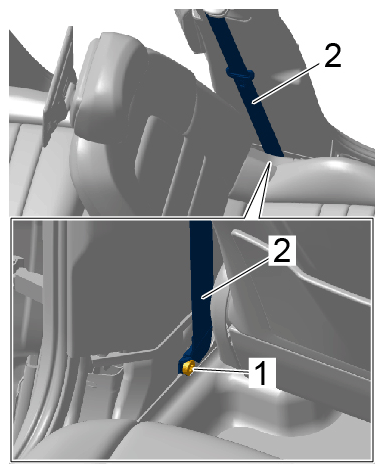

Screw securing front three-point belt to bodyshell	Item 1	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Belt fitting

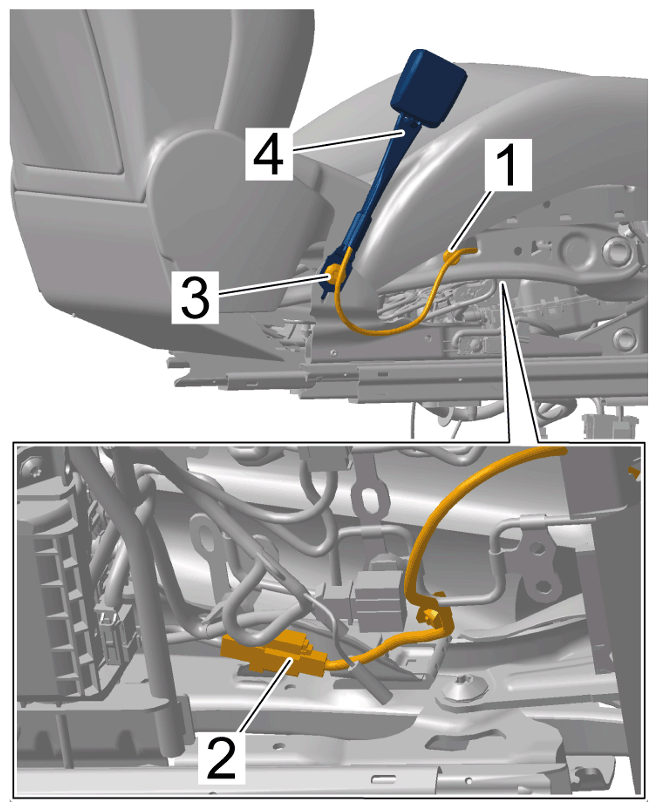

Screw securing front seat-belt buckle to front seat	Item 3	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat-belt buckle
