Front Power Windows Mechanism
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |

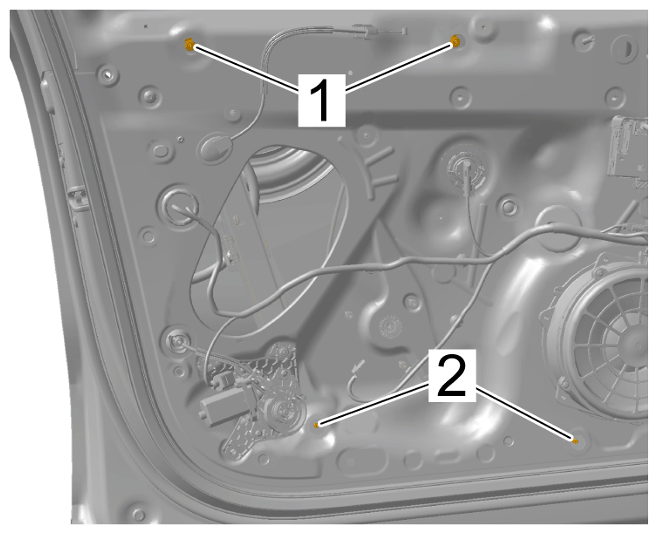

| Nut securing front power window mechanism to door |
Items 1 and 2 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

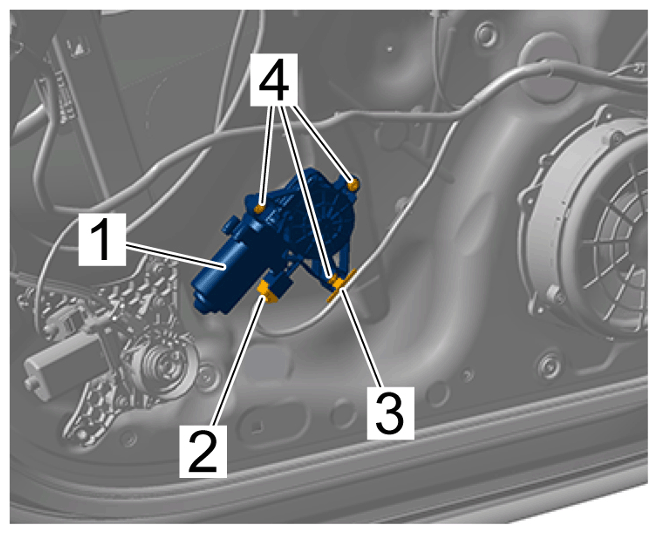

| Screw securing power window motor to power window mechanism |
Item 4 |
Tightening torque |
3.5 Nm (2.6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Power window motor |
