Front Apron

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screws securing retaining strip to front end		Tightening torque	6 Nm (4.5 ftlb.)

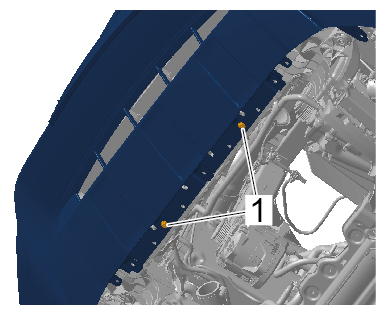

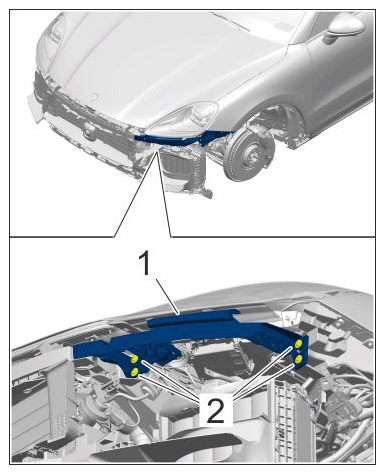

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts securing retaining strip to wing	Item 1	Tightening torque	4 Nm (3 ftlb.)

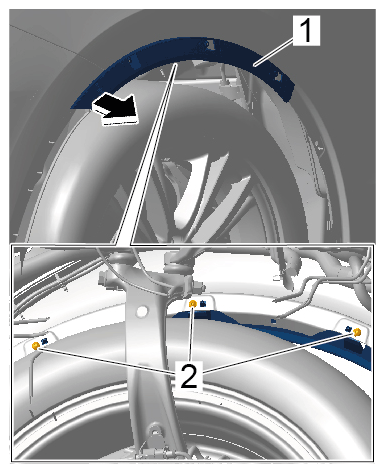

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts
Screws securing wheel cover bracket to wing	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

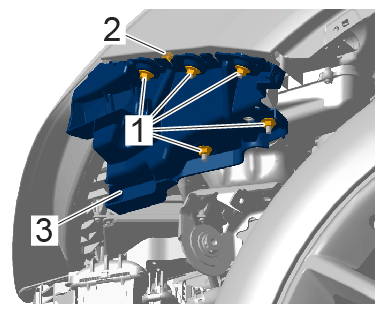

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel cover bracket
Screw securing air duct for brake to front apron, bottom	Item 1	Tightening torque	3 Nm (2 ftlb.)

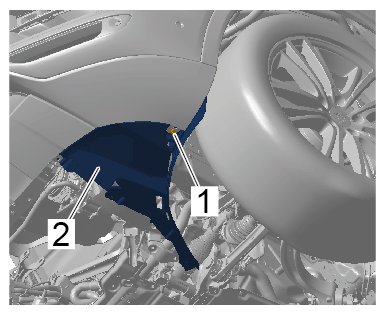

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on air duct for brake
Screw securing front apron to wing	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

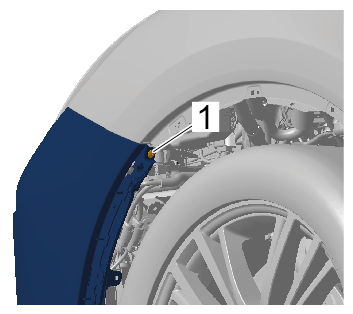

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on front apron
Screws securing front apron to front end, bottom	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)

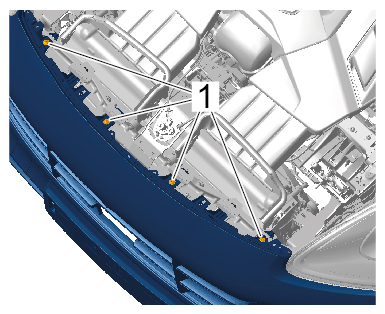

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the bottom
Screws securing front apron to front end, top	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing front apron to front end at the top
Screw securing front spoiler to front apron	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)

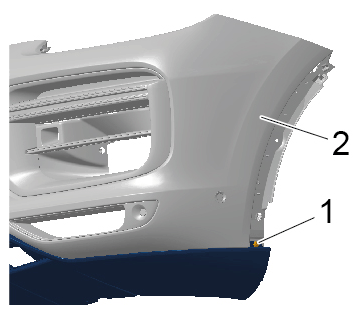

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing front spoiler to front apron
