Cover For Front Door (B-Pillar)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Screws securing cover for front door (B-pillar) to door Item 1 Tightening torque 2.5 Nm (1.9 ftlb.)

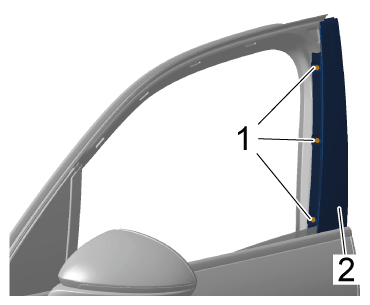

G15239445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on cover for front door (B-pillar)
