Control Unit For Rear Spoiler To Body

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Type	Basic value
Screws for control unit for rear spoiler to holder for rear spoiler control unit	tightening torque	2 Nm (1.5 ftlb.)

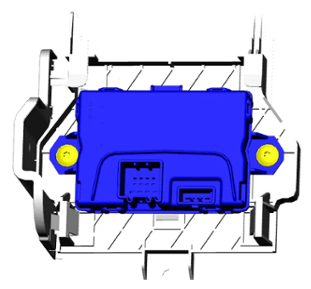

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit for rear spoiler
Nut used to support control unit for rear spoiler on body	torque	3.2 Nm (2.5 ftlb.)

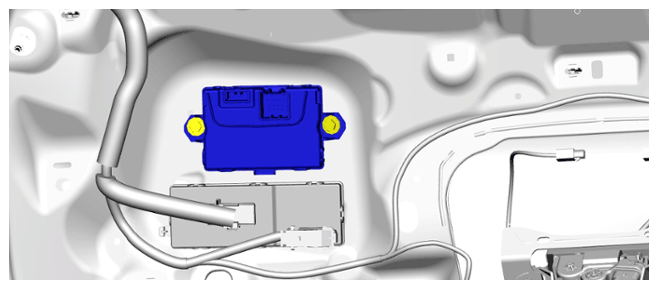

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on holder for rear spoiler control unit
Screws securing rear spoiler control unit to rear lid	Tightening torque	3.7 Nm (2.7 ftlb.)

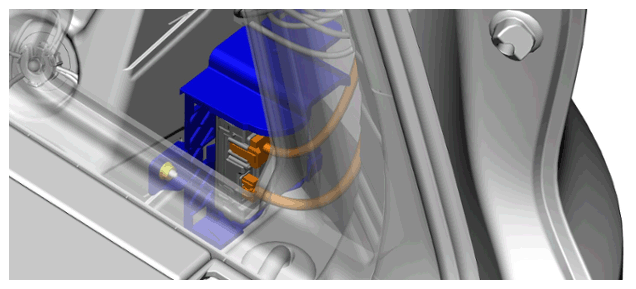

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear spoiler control unit
