Centre Console

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

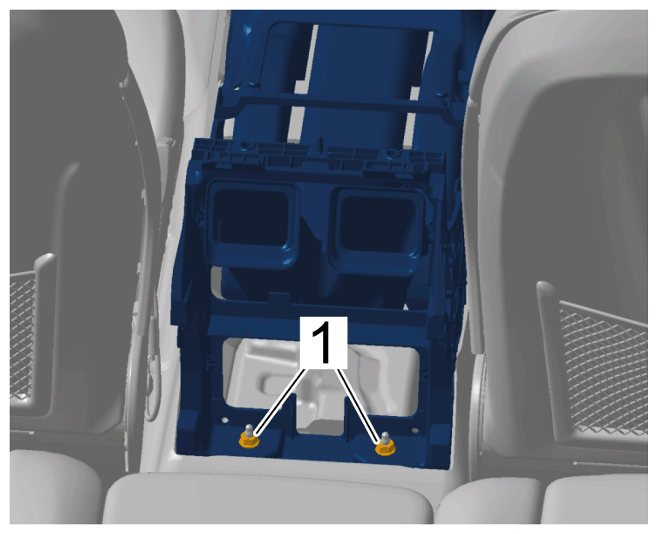

Nuts securing rear center console to bracket	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

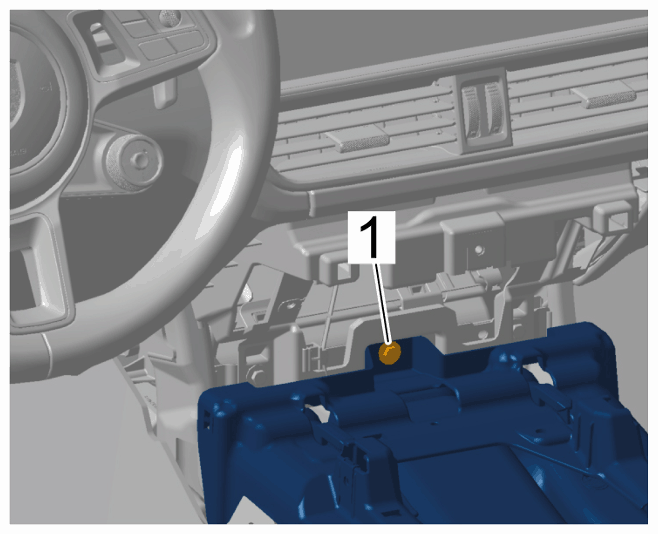

Screw securing front center console to instrument panel	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

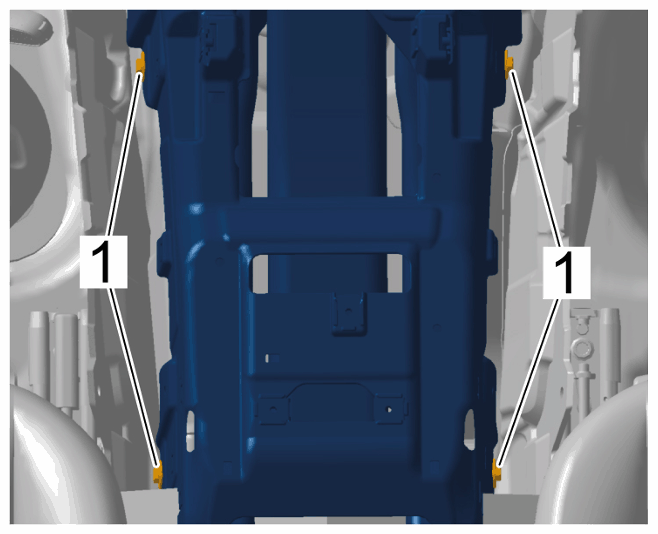

Screws securing center console to bracket	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

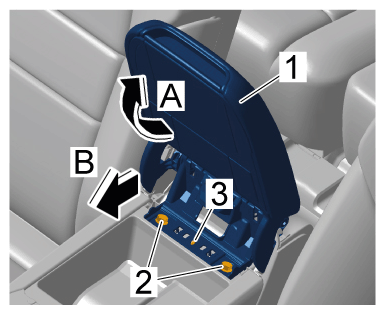

Screws for center armrest cover	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for cover on tray

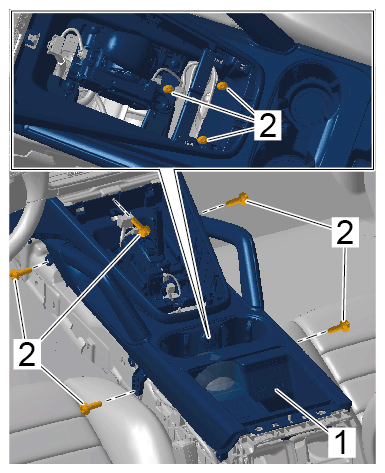

Screws securing upper part of center console to center console	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for upper part of center console

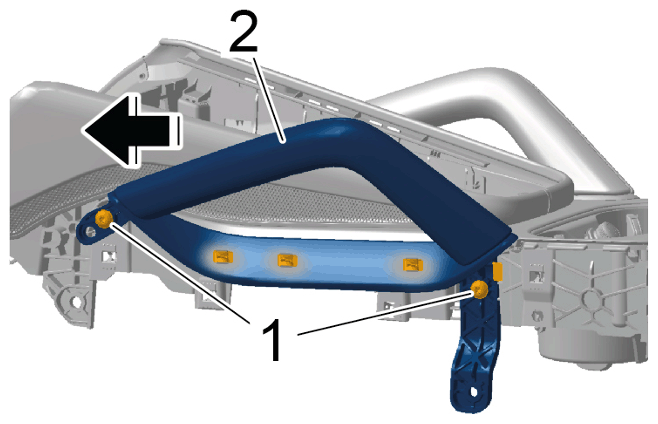

Screws securing grab handle to upper part of center console	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Grab handles

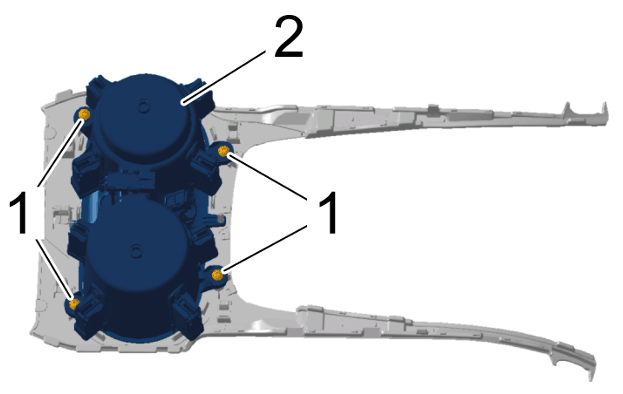

Screws for cupholder	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screw securing trim element to center console	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trim element

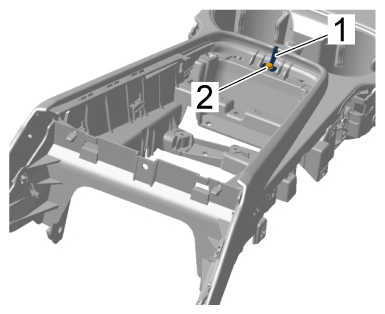

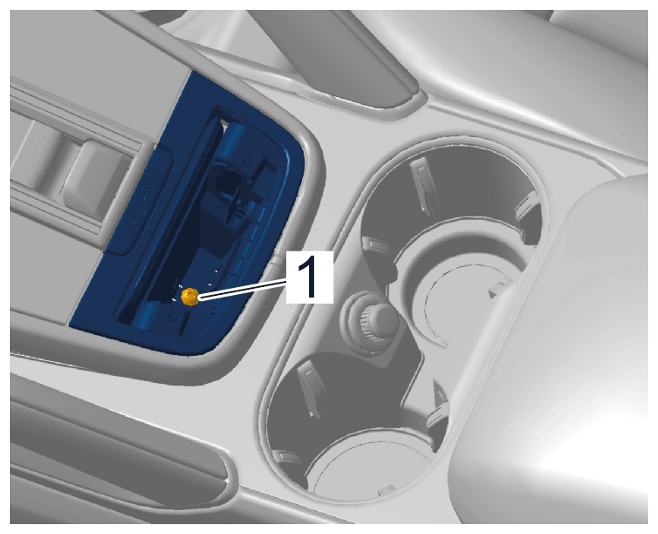

Screw securing ashtray to upper part of center console	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
