Cutting Force For Removing Glass With Cutting Thread

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The force required for separating the glass is lower when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided.

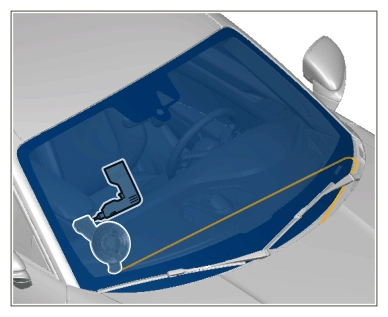

Unfavourable angle (strong pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High pulling force

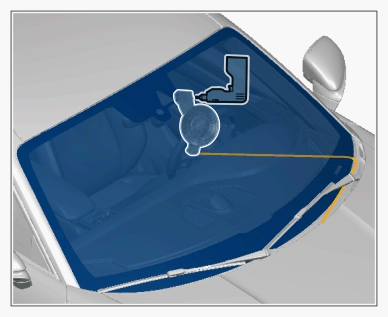

Favourable angle (average pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Average pulling force

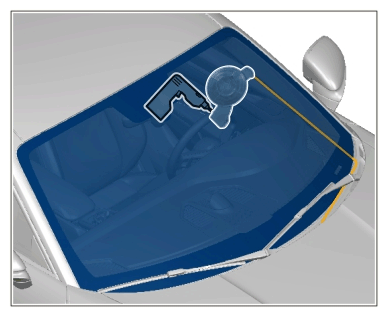

Optimum angle (minimum pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low pulling force
