Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1

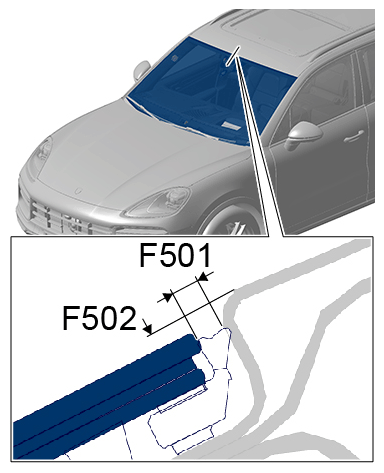

Windscreen to roof (F501)		Gap dimension	2.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Windscreen to roof (F502)	Offset	Gap dimension	2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

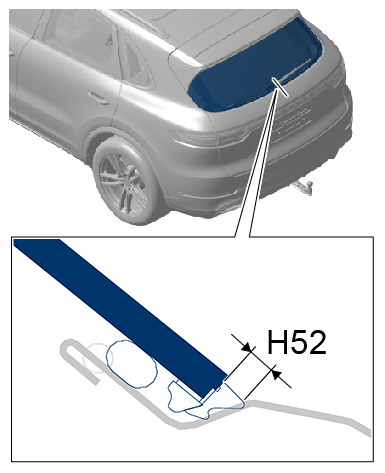

Rear window to rear lid (H52)		Gap dimension	4.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

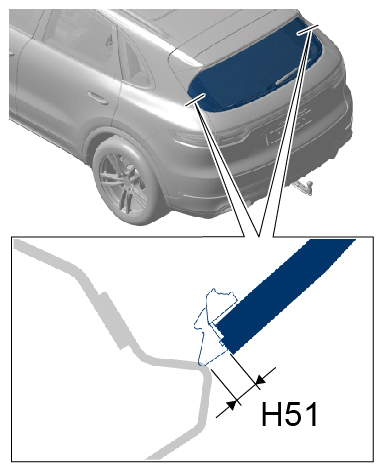

Rear window to rear side panel, rear (H51)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

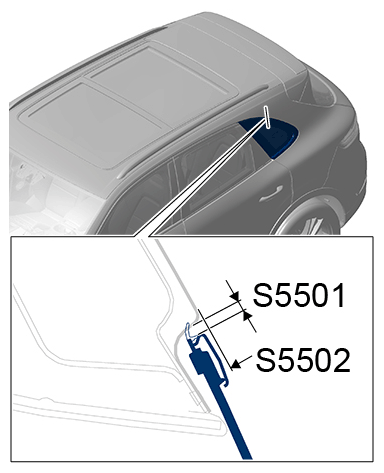

Side window to rear side panel, top (S5501)		Gap dimension	4.9 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Side window to rear side panel, top (S5502)	Offset	Gap dimension	2.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

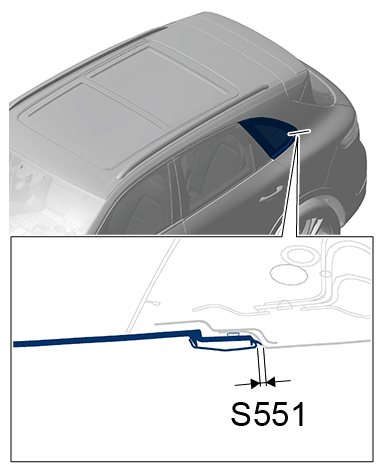

Side window to rear side panel, rear (S551)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

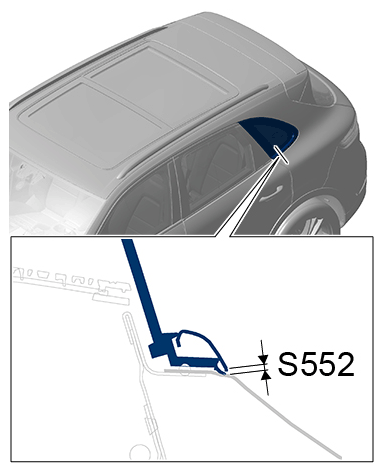

Side window to rear side panel, bottom (S552)		Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

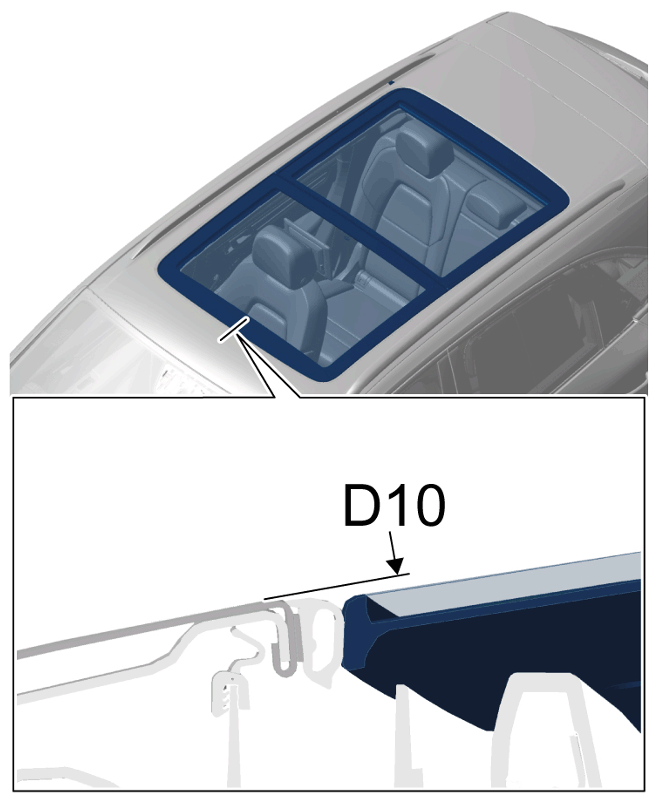

Front sliding-roof panel to roof (D10)	Offset	Gap dimension	1.8 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

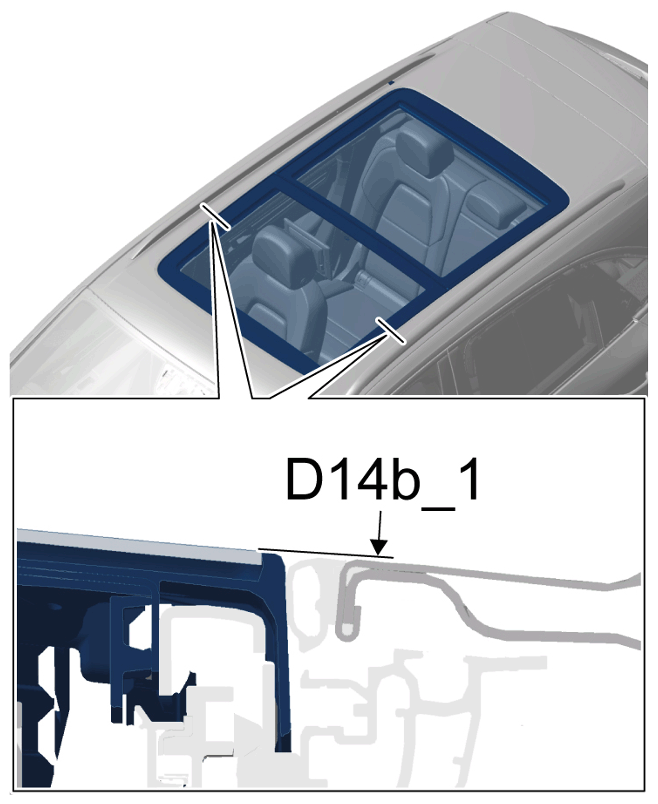

Side sliding-roof panel to roof (D14b_1)	Offset	Gap dimension	1.2 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

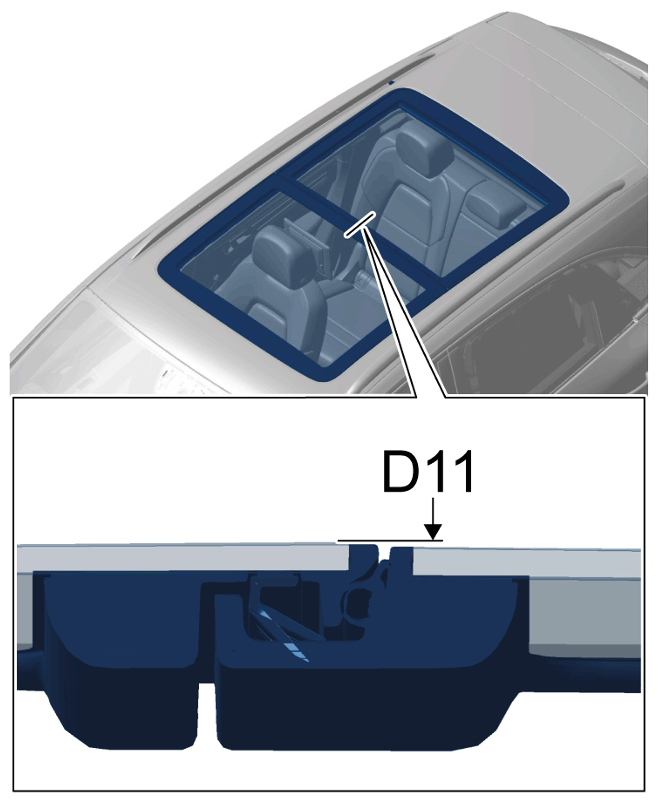

Sliding-roof panel to rear panoramic roof glass panel (D11)	Offset	Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

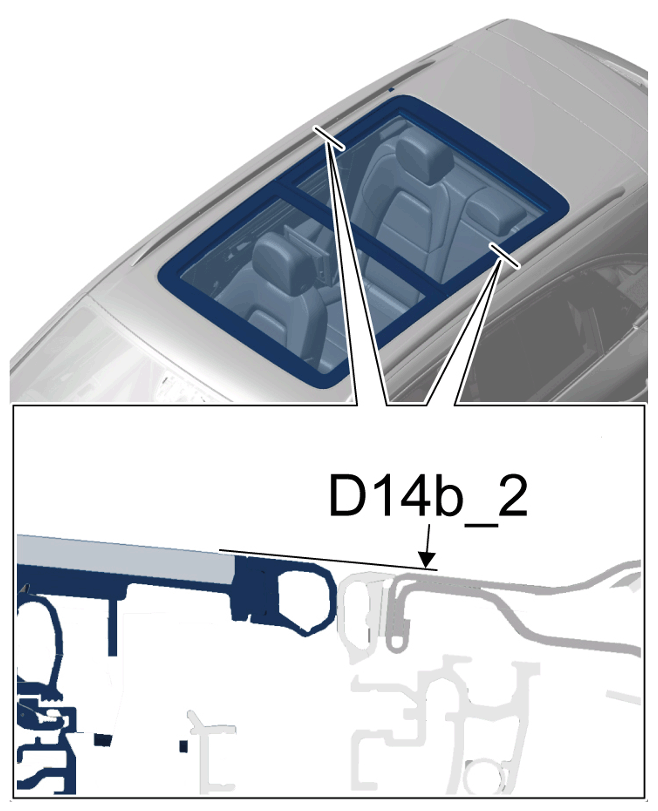

Rear panoramic roof glass panel to roof, sides (D14b_2)	Offset	Gap dimension	0.3 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

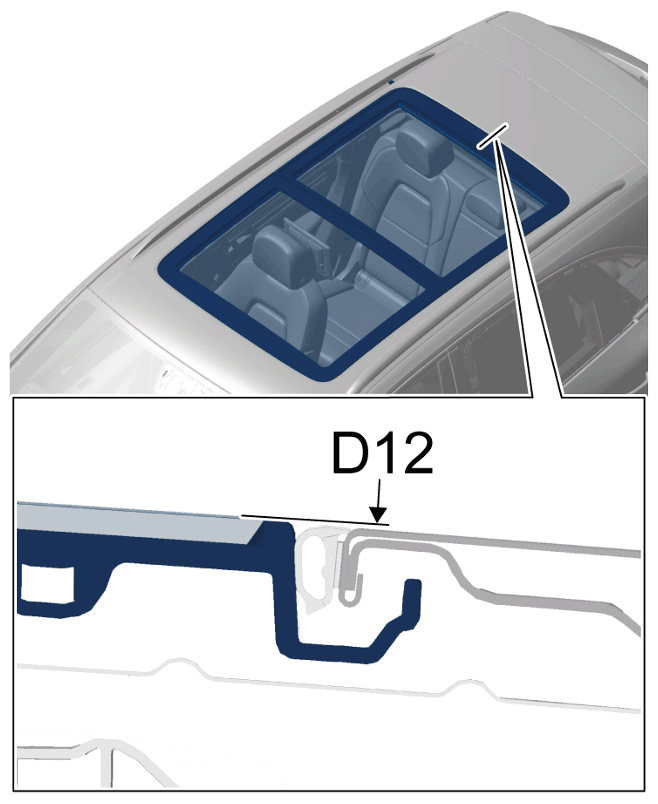

Rear panoramic roof glass panel to roof, rear (D12)	Offset	Gap dimension	0.6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
