Gap Dimensions Of Side Window
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

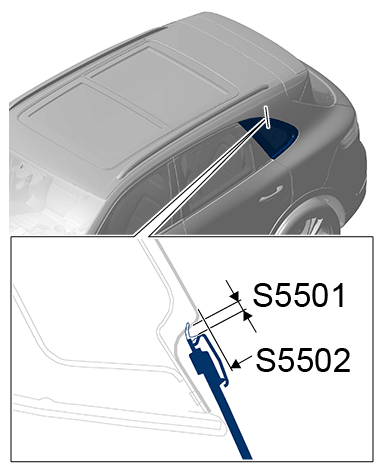

| Side window to rear side panel, top (S5501) | Gap dimension | 4.9 mm | +/- 1 mm | |
|
Gap dimension |
||||
| Side window to rear side panel, top (S5502) | Offset | Gap dimension | 2.5 mm | +/- 1 mm |
|
Gap dimension |
||||

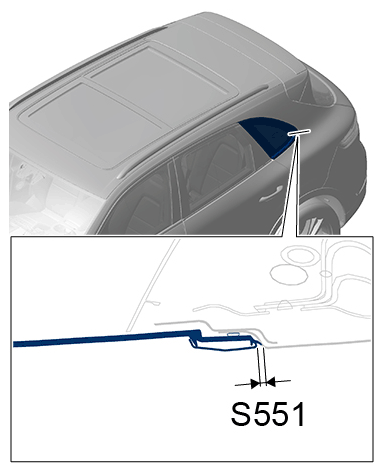

| Side window to rear side panel, rear (S551) | Gap dimension | 3 mm | +/- 0.5 mm | |
|
Gap dimension |
||||

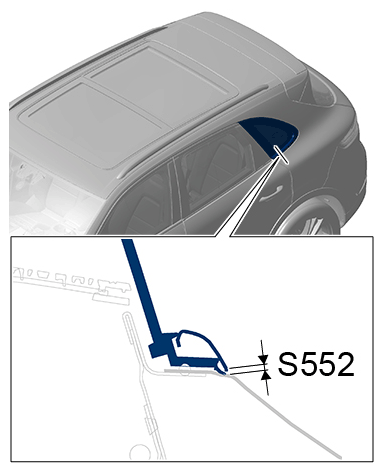

| Side window to rear side panel, bottom (S552) | Gap dimension | 0.8 mm | +/- 0.5 mm | |
|
Gap dimension |
||||
