Gap Dimensions Of Rear Window
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |

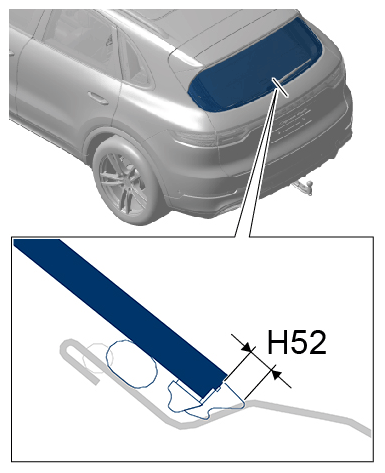

| Rear window to rear lid (H52) |
|
Gap dimension |
4.3 mm |
+/- 0.8 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |

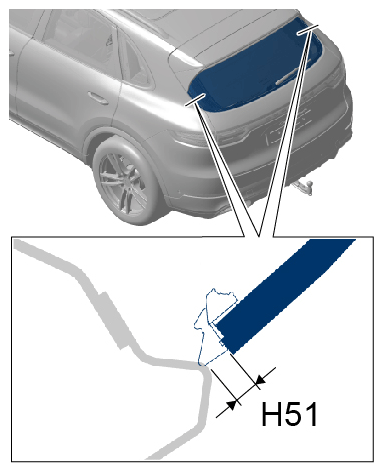

| Rear window to rear side panel, rear (H51) |
|
Gap dimension |
3.5 mm |
+/- 0.8 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension |
