Tools And Materials

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
G15239476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

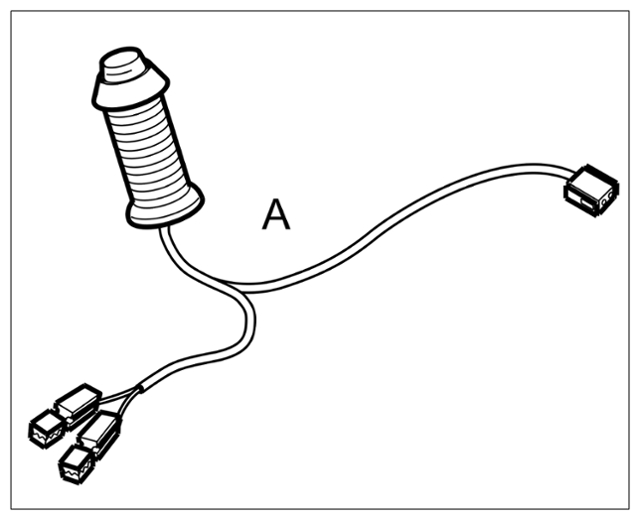

Overview of ignition device 92570

A Ignition device 9257
G15239477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/4

A Purple marking on the connector - adapter for knee airbag
B Marking A - adapter for 1st stage of driver's airbag unit
C Marking B - adapter for 2nd stage of driver's airbag unit
D Green marking on the connector - adapter not required
E Adapter for detonator (ignition device)
G15239478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

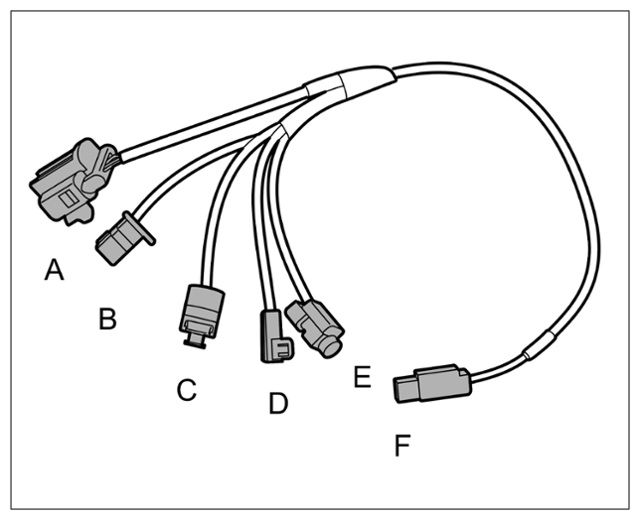

Overview of adapter cable 9257/7

A Purple marking on the connector - adapter for ignition module of front lid
B Blue marking - adapter for 1st stage of driver's airbag unit
C Black marking on the connector - adapter for head airbag
D Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt pretensioner
F Adapter for detonator (ignition device)
G15239479Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/6

G15239480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

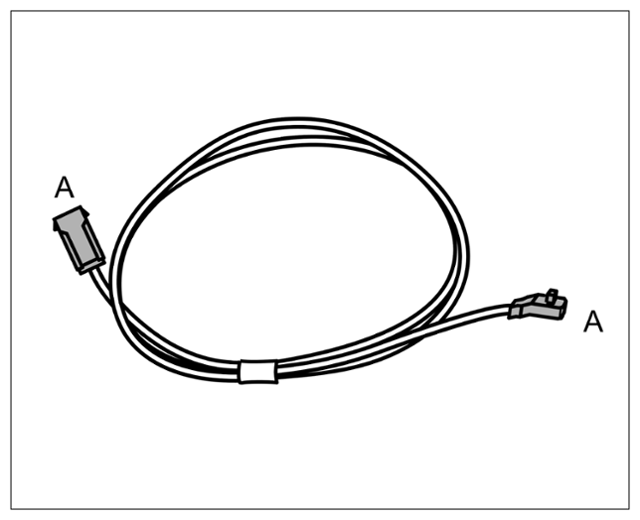

Overview of adapter cable 9257/1

A Black connector - adapter for cutoff relay at power distributor


G15239541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of ignition device 92570

LHD vehicle Ignition device 9257
G15239542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

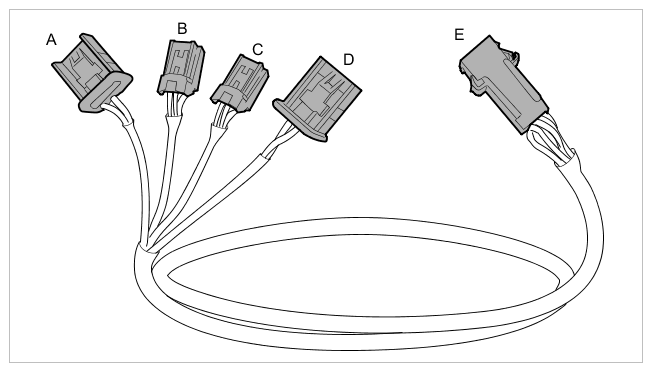

Overview of adapter cable 9257/4

LHD vehicle Purple marking on the connector - adapter for knee airbag
RHD vehicle Marking A - adapter for 1st stage of driver's airbag unit
Item C Marking B - adapter for 2nd stage of driver's airbag unit
D Green marking on the connector - adapter not required
E Adapter for ignition device
G15239543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

LHD vehicle Purple marking on the connector - adapter for ignition module of front lid
RHD vehicle Blue marking - adapter for 1st stage of driver's airbag unit
Item C Black marking on the connector - adapter for head airbag
D Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt tensioner
F Adapter for ignition device
G15239544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

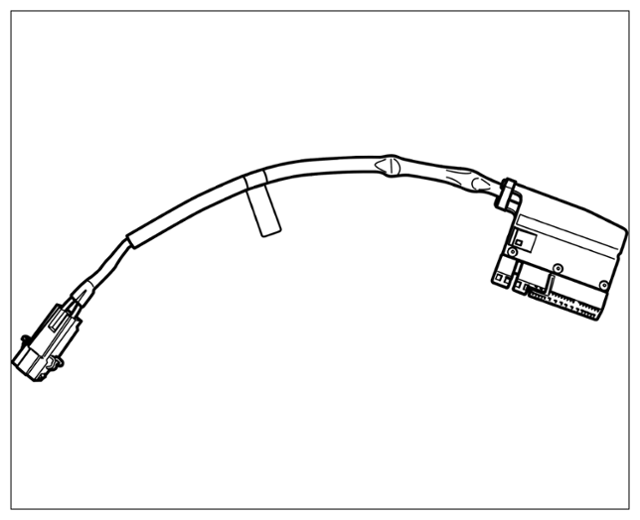

Overview of ignition cable 9257/6

G15239545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/1

LHD vehicle Black connector - adapter for cutoff relay at power distributor
