Seat-Belt Pretensioners

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect handling of airbag units
  • Triggering of airbag unit.
  • System faults can occur.
    1. → Switch off ignition and remove ignition key or remote control (hand-held transmitter).
    2. → A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.
    3. → Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.
    4. → Wait 1 minute after disconnecting the battery.
    5. → Only pull off connector on the triggering unit after the waiting time has elapsed.
    6. → Make sure that no foreign objects are located in front of the airbag unit during installation.
    7. → Replace damaged parts during removal.
    8. → Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.
    9. → Do not position anything on the airbag units.
    10. → If removed for an extended period, the airbag units must be stored in a safe place.
    11. → Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.
    12. → Do not expose airbag units to temperatures of more than 90°C.
    13. → Do not remove the short-circuit spring on the plug-in contacts.
    14. → Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.
    15. → Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

Only ignite airbag units that are securely installed in the vehicle and in the original condition. Use only the ignition tool intended for this purpose.

Carry out ignition only in suitable, open areas.

Only use an ignition tool intended for this purpose.

First remove all loose objects from the expansion area of the airbag.

Every ignition circuit for all airbag units and seat-belt pretensioners must be ignited individually.

Persons who may be affected must be warned in advance about the noise.

Wear ear protectors. Keep a safe distance by utilizing the entire cable length of the ignition tool.

Connect power source only just prior to igniting.

If ignition fails, wait for approx. 3 minutes before approaching the airbag unit.

Allow airbag units to cool down under observation following ignition.

Do not allow ignited airbag units to come into contact with the skin.

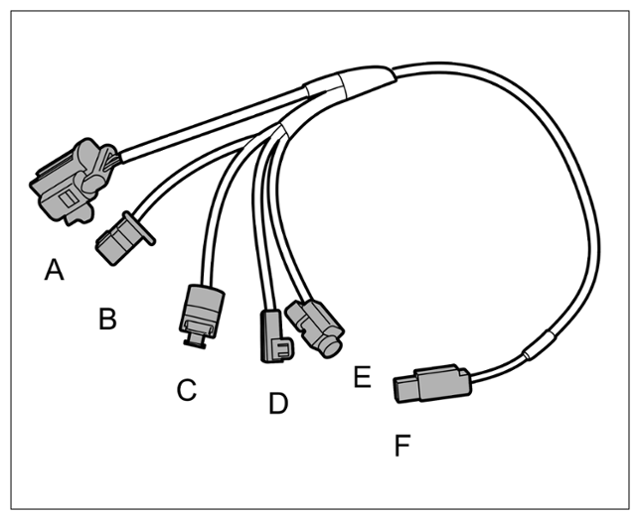

G15239500Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

E Yellow marking on connector - adapter for seat-belt pretensioner
F Adapter for detonator (ignition device)

Plug in connector -E-  of adapter cable 9257/7  on the seat-belt pretensioner.

G15239501Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

Plug in connector of adapter cable 9257/7  on the seat-belt pretensioner -Arrow-  .

G15239502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter for seat-belt pretensioner

> 9257 - Ignition device  must be connected to the 2-pin connector -F-  of the adapter cable 9257/7.

G15239503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

Place the ignition device in front of the vehicle through the door gap.



WARNING: Incorrect handling of airbag units
  • Triggering of airbag unit.
  • System faults can occur.
    1. → Switch off ignition and remove ignition key or remote control (hand-held transmitter).
    2. → A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.
    3. → Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.
    4. → Wait 1 minute after disconnecting the battery.
    5. → Only pull off connector on the triggering unit after the waiting time has elapsed.
    6. → Make sure that no foreign objects are located in front of the airbag unit during installation.
    7. → Replace damaged parts during removal.
    8. → Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.
    9. → Do not position anything on the airbag units.
    10. → If removed for an extended period, the airbag units must be stored in a safe place.
    11. → Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.
    12. → Do not expose airbag units to temperatures of more than 90°C.
    13. → Do not remove the short-circuit spring on the plug-in contacts.
    14. → Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.
    15. → Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

Only ignite airbag units that are securely installed and in original condition in the vehicle. Allow airbag units to cool down under observation following ignition.

G15239554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of adapter cable 9257/7

E Yellow marking on connector - adapter for seat-belt pretensioner
F Adapter for ignition device
  1. For the front seat-belt pretensioners, remove the B-pillar trim panel.

    > WM, 70671901 REMOVING AND INSTALLING B-PILLAR TRIM PANEL (UPPER PART) / WM, 70681903 REMOVING AND INSTALLING C-PILLAR TRIM PANEL (UPPER PART) - on "Removing"

  2. For the rear seat-belt pretensioners, remove the C-pillar trim panel and the rear side trim panel.

    > WM, 70681901 REMOVING AND INSTALLING (LOWER PART OF) C-PILLAR TRIM PANEL / WM, 70681903 REMOVING AND INSTALLING C-PILLAR TRIM PANEL (UPPER PART) - on "Removing"

    > 700319 REMOVING AND INSTALLING REAR SIDE TRIM PANEL FOR LUGGAGE COMPARTMENT - on "Removing"

  3. Unplug the connector at the seat-belt pretensioner and insert connector -E-  from adapter cable 9257/7  .

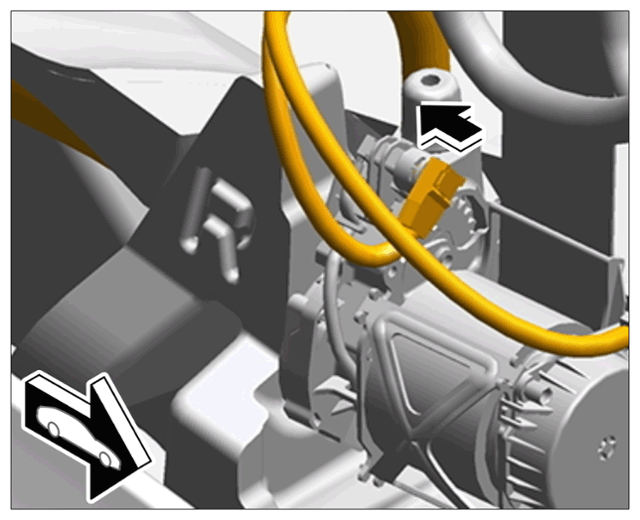

    G15239555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter for seat-belt pretensioner

  4. Connect the > 9257 - Ignition device  to the 2-pin connector -F-  of the adapter cable 9257/7.
  5. Place ignition device in front of the vehicle through the door gap.
