Removing Rear Side Window

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

Information

The new rear side window is supplied complete with trim frame and trim.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

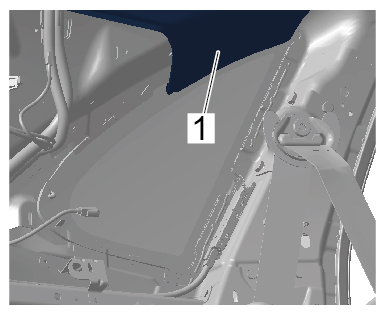

Headliner

Do not damage the headliner -1- .

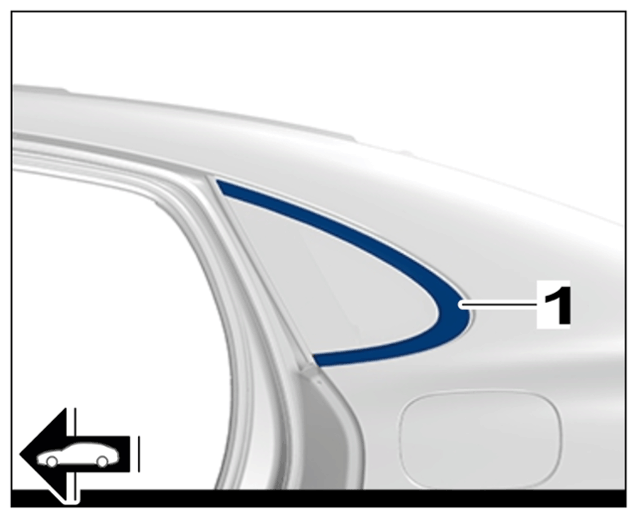

Carefully lever off trim frame -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim frame for rear side window

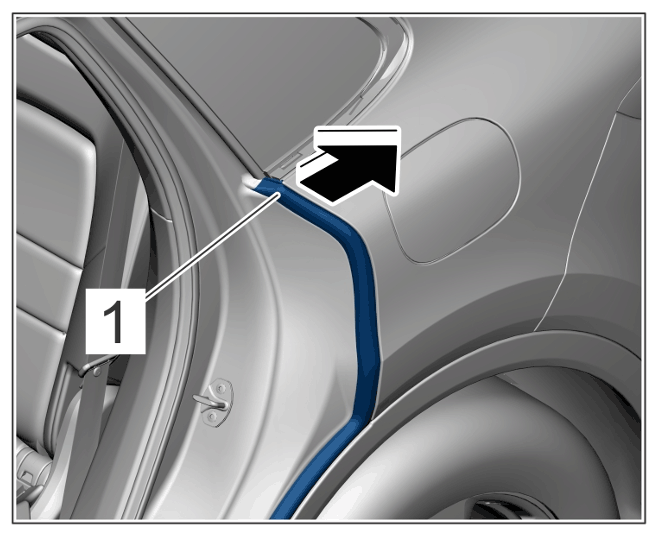

Unclip seal -1- in the upper area. -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seal

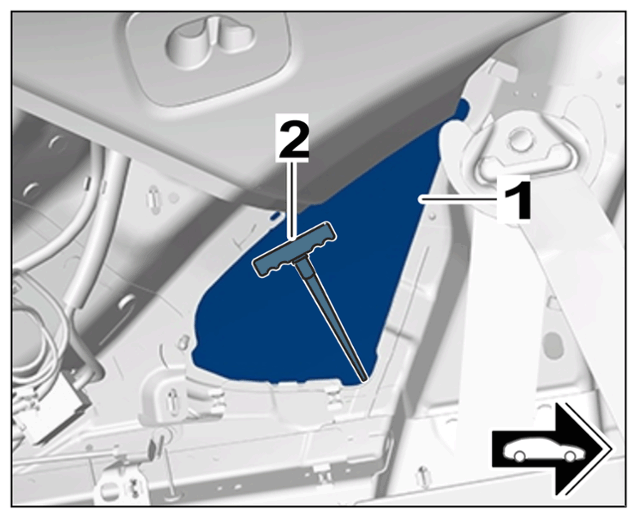

Pierce adhesive bead on the rear side window -1- from the inside out using an awl -2- and cutting thread on the lower C-pillar.
Make sure not to damage the headliner and the seal for the C-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Awl

Information
- The procedure for removing car windows is described in
  > 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS
Information
- Fixing clips will also be cut when removing the rear side window. Greater force will be needed at these points.
Removing rear side window
1. 4.1 Attach suction cup for > VAS 861 001A - window removal set to the outer rear side window.
2. 4.2 Cut out rear side window using cutting cord.
  > 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS
3. 4.3 Rear side window
